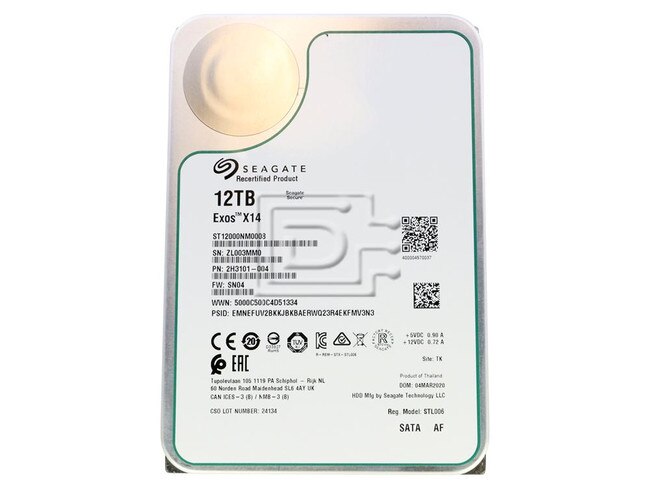

Seagate Exos X14 ST12000NM0008 12TB 3.5" LFF 6Gbps 7.2K Enterprise SATA Hard Drive

Seagate Part #/MPN: ST12000NM0008

DiscTech Item #: SGT-ST12000NM0008-NP-OE


$325.00
$325.00

Enterprise Grade

Capacity: 12TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Seagate Exos X14 ST12000NM0008 12TB 3.5" LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - New Pull Seagate Exos X14 ST12000NM0008 12TB 3.5" LFF 6Gbps 7.2K RPM FastFormat capable for 512e or 4Kn Enterprise SATA Hard Drive - New Pull

EXOS X14 and Exos X14z
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.

Best-Fit Applications
  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.

MPN: 2H3101-002

Compatibility: Compatible with systems that support 12TB 3.5" SATA HDDS

Exos Enterprise X14
Standard Model FastFormat (512e/4Kn)ST12000NM0008
Interface6Gb/s SATA III
Capacity142TB / 12000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)---
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
  • 4Kn Sector Size (Bytes per Sector)
  • 4096
  • Performance
    Spindle Speed (RPM)7200
    Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
  • Max Sustainable Transfer Rate
  • 261
  • 249
  • Random Rewad/Write 4K QD03 WCD (IOPS)170/418
    Average Latency (ms)4.16
    Interface PortsSingle
    Rotational Vibration @ 20-1500Hz (rad/sec)12.5
    Power Consumption
    Idle A (W) Average
  • 5.00W
  • Max Operating, Random Read/Write 4K/16Q (W)
  • 10.0
  • 6.0
  • Power Supply Requirements+12 V and +5 V
    Evrironmental/Temperature
    Temperature, Operating (°C)5°C - 60°C
    Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
    Shock, Operating Read/Write (Gs)70/40Gs
    Shock, Nonoperating, 1ms/2ms (Gs)250
    Physical
    Height (in/mm, max)1.028in/26.1mm
    Weight (in/mm, max)4.010in/101.85mm
    Depth (in/mm, max)5.787in/147.0mm
    Weigt (g/lb)690g/1.521lb

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: 2H3101-002

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
