Seagate Part #/MPN: ST16000NM001G
DiscTech Item #: SGT-ST16000NM001G-C9-OE
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:8Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 16TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 261/249
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

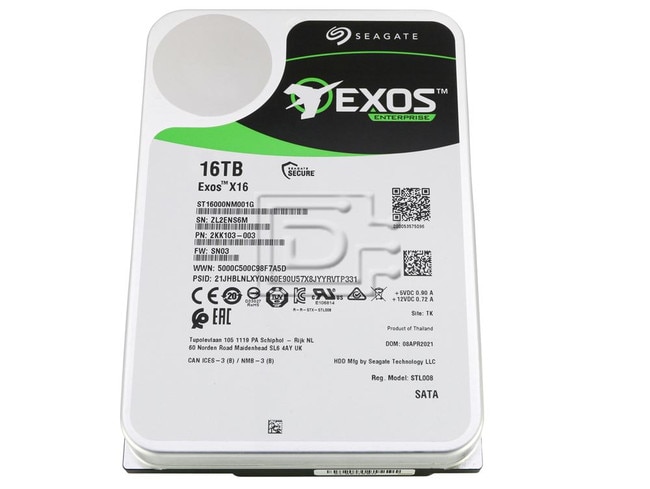

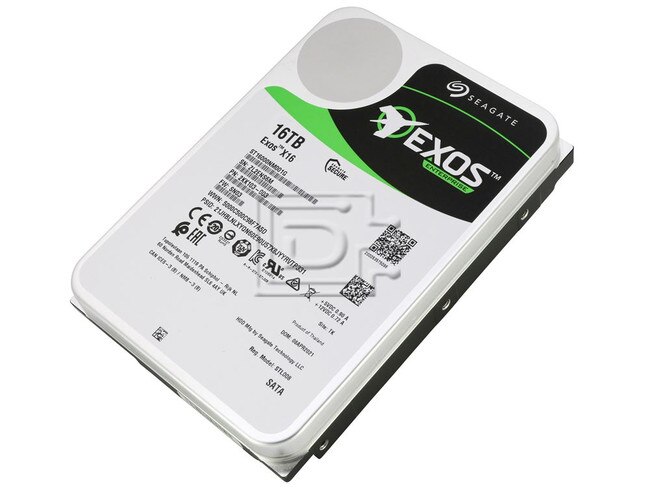

Seagate Exos X16 ST16000NM001G 16TB 3.5-Inch LFF 6Gbps 7.2K RPM Enterprise 512e Fast Format SATA Hard Drive - Certified 95
Seagate Exos X16 ST16000NM001G 16TB / 16000GB 3.5" LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation Fast Format SATA / Serial ATA HDD / Hard Drive - Certified 95
Scalable. Responsive. Innovative.
Exos X16
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
Industry’s first 16TB drive for 33% more petabytes per rack.
Highest 16TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes Watts/TB
Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.
Next-generation helium side-sealing weld technology for added handling robustness and leak protection.
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security: Seagate Secure features for safe, affordable, fast and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
| Exos Enterprise X16 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST16000NM001G |
| Interface | 6Gb/s SATA |
| Capacity | 16TB / 16000GB |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | |
| Max Sustainable Transfer Rate | |
| Random Rewad/Write 4K QD03 WCD (IOPS) | 170/440 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 5.00W |
| Max Operating, Random Read/Write 4K/16Q (W) | |
| Power Supply Requirements | +12 V and +5 V |
| Evrironmental/Temperature | |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 50 |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Physical | |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 670g/1.477lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 2KK103-003 2KK103-002 2KK103-881
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Certified 95
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
