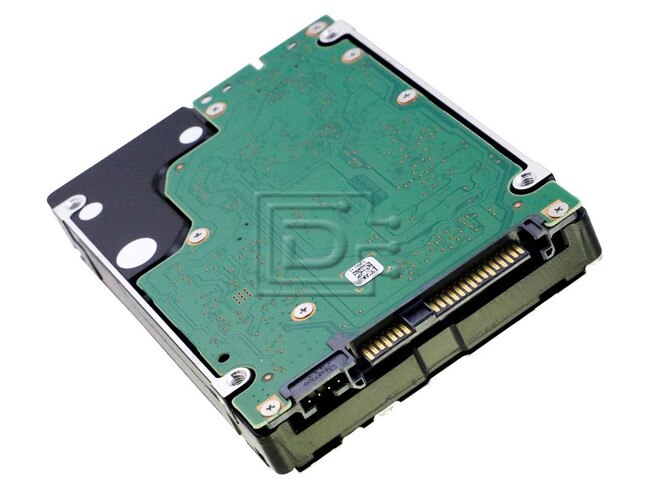

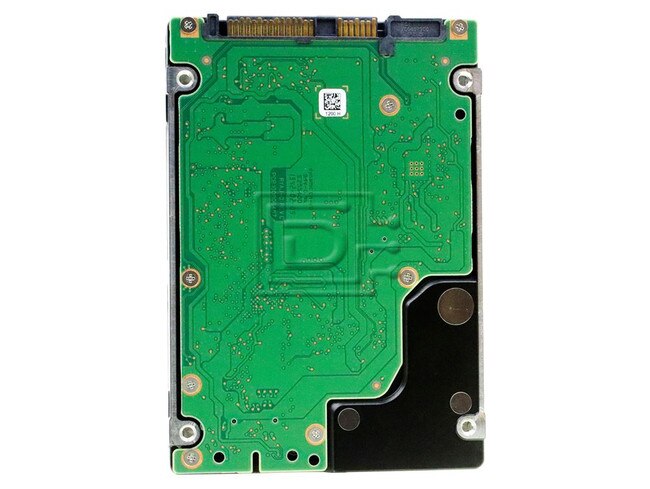

Seagate ST1200MM0009 1.2TB SAS Hard Drive

Seagate Part #/MPN: ST1200MM0009

DiscTech Item #: SGT-ST1200MM0009-RF-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.2TB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 262 to 136

Average Seek Time: 2.9

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Seagate Exos 10E2400 ST1200MM0009 1.2TB 2.5" SFF 12Gbps 10K RPM 512n SIE SAS Hard Drive - Refurbished

Seagate Exos 10E2400 ST1200MM0009 1.2TB / 1200GB 2.5" Small Form Factor / SFF 12.0 Gb/s 10000 RPM 512 Native Serial Attached SCSI / SAS Hard Drive / HDD - Brand New


Trusted. Efficient. Versatile.
Exos 10E2400

Seagate Exos 10E2400 enterprise hard drives are the industry’s fastest 10K-RPM drives, with capacities up to 2.4TB in a 2.5-inch form factor, and intended for traditional data centers where density, power consumption and data integrity are paramount.

The Perfect Match of High Capacity and High Performance
The high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centers to keep pace with data growth and optimize data center real estate. Exos 10E2400 delivers up to 2.4TB of high-performance data access for write-intensive applications. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The latest 12Gb/s SAS interface provides improved scalability.

Maximize Storage Investments for the Long Haul
Exos 10E2400 offers Protection Information (I) to help protect against data corruption, and Seagate PowerChoice technology for T10-compliant power management enables IT organizations to tailor systems for enhanced poser consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild technology option.

Industry-Leading Data Security Features
Seagate Secure SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest. With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitization specification and support the Trusted Computer Group (TCG) standard.

Standard features

Seagate Exos 10E2400drives have the following standard features:
  • 128 - deep task set (queue)
  • 128MB data buffer
  • 3.0 / 6.0 / 12.0 Gb Serial Attached SCSI (SAS) interface
  • Drive Self Test (DST)
  • Dynamic spindle brake
  • ECC maximum burst correction length of 520 bits for 512 byte blocks
  • Embedded servo design
  • Firmware downloadable using the SAS interface
  • Flawed logical block reallocation at format time
  • Idle Read After Write (IRAW)
  • Industry standard SFF 2.5-inch dimensions
  • Integrated dual port SAS controller supporting the SCSI protocol
  • Jumperless configuration
  • No preventive maintenance or adjustments required
  • Power Choice
  • Programmable auto write and read reallocation
  • Programmable logical block reallocation scheme
  • RAID Rebuild
  • Reallocation of defects on command
  • SAS Power Disable
  • Self diagnostics performed when power is applied to the drive
  • Support for SAS expanders and fanout adapters
  • Supports up to 32 initiators
  • User-selectable logical block sizes for 512 native models (512, 520 or 528 bytes per logical block)
  • Vertical, horizontal, or top down mounting
  • Zone bit recording (ZBR)

Seagate Exos 10E2400 Self-Encrypting Drive models have the following additional features:

  • 16 independent data bands
  • Authenticated firmware download
  • Automatic data encryption/decryption
  • Controlled access
  • Cryptographic erase of user data for a drive that will be repurposed or scrapped
  • Drive locking
  • Random number generator

Best-Fit Applications

  • Mission-critical servers and external storage arrays
  • Database and online transaction process (OLTP) applications
  • Power-constrained and space-constrained data centers
  • Green IT and drive-retirement cost reduction initiatives
  • Compliance and data security initiatives
  • Migration from 3.5-inch drive systems to next-generation technology
  • Cost-effective alternative to higher-priced performance solutions>/li>


This drive is compatible with any server or storage array that accept 2.5" x 15mm SFF SAS drives.

Standard Model NumberST1200MM0009
Capacity1.2TB / 1200GB
Sector Sixe512N / 512 Native
Spindle Speed (RPM)10,000 RPM
Average Latency (ms)2.9
Sustained Transfer Rate (Outer to Inner Diameter, MB/s)262 to 136
Cache, Multisegmented (MB)128
I/O Acceleration and Response Time Optimization ----
NAND Flash Type ----
NAND Flash Size ----
Intelligent NAND Endurance Management ----
Secure Download & Diagnostics (SD&D) and Instant Secure Erase OptionYes
FastFormat (512e/4Kn AF Switching) ----
12Gb/s SASYes
Disks/Heads 2/4
External Transfer Rate (MB/s)1200
Nonrecoverable Read Errors per Bits Read, Max1 per 10E16
Annualized Failure Rate (AFR)0.44%
Typical Op (A) +5V/+12V0.46/0.41
Typical Operating (W)7.2
Average Idle Power (W)3.8
Performance Efficiency Index (Idle W/GB)0.0032
Ambient Temperature, Operating (C°) 5°C – 55°C
Ambient Temperature, Nonoperating (C°)-40°C – 70°C
Shock, Max. Operating: 11ms (Gs)40
Shock, Max. Nonoperating: 2ms (Gs)400
Vibration, Operating: <500Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)3
Height (in/mm, max)0.591in/15.00mm
Width (in/mm, max2.760in/70.10mm
Depth (in/mm, max)3.955in/100.45mm
Weight (lb/g)0.486lb/220g
