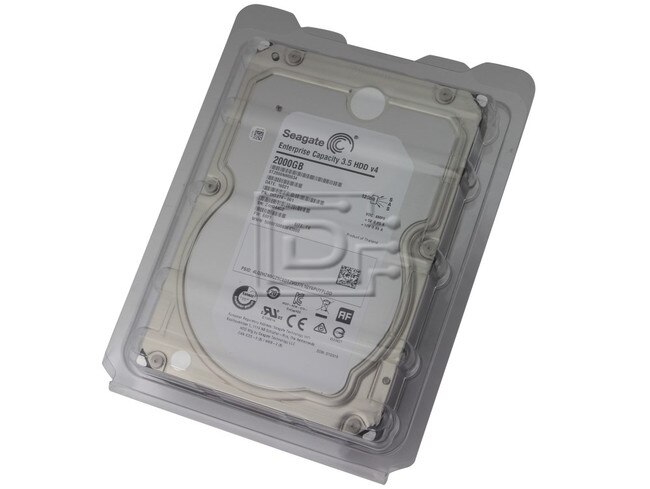

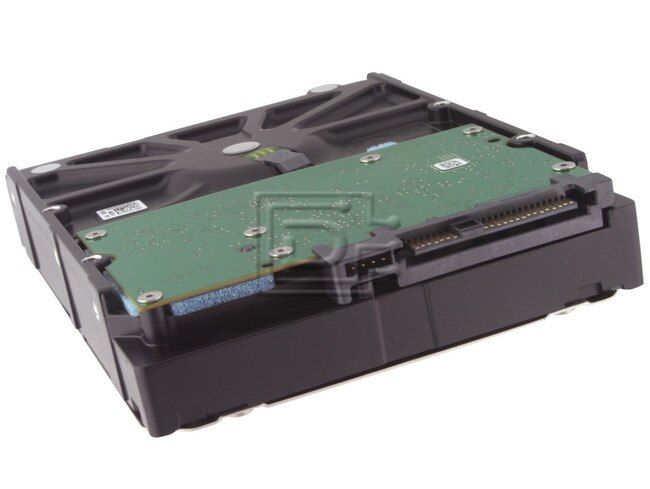

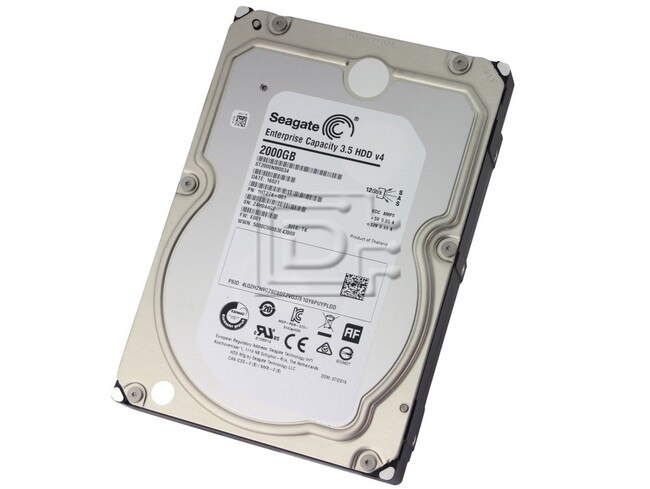

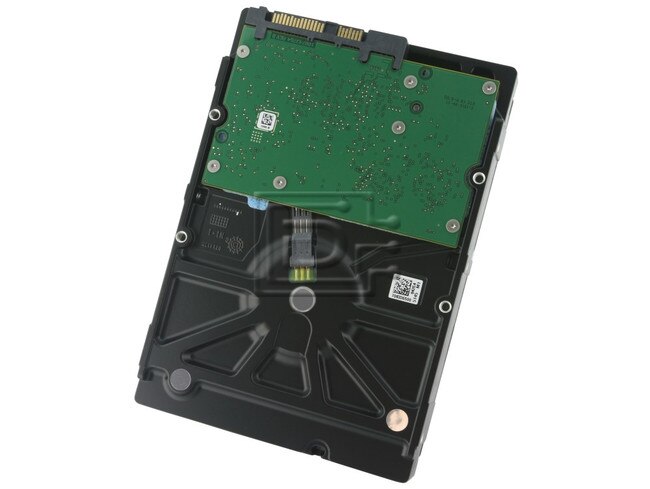

Seagate ST2000NM0034 2000GB SAS Hard Drive

Seagate Part #/MPN: ST2000NM0034

DiscTech Item #: SGT-ST2000NM0034-BN-5Y


$185.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$185.00

Enterprise Grade

Capacity: 2TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: Up to 226

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Seagate ST2000NM0034 2000GB 3.5" 12.0Gbps 7200 RPM Enterprise 512e Serial Attached SCSI Hard Disk Drive - Brand New

Alt MPN: 1HT274-001

Capacity-Optimised Enterprise Hard Drive for Bulk-Data Applications

  • Highest-capacity large form factor enterprise drive – 50% more capacity over generation with 2TB – for demanding data growth.
  • Fastest high capacity HDD with best-in-class random and sequential read/write performance.
  • Eighth-generation drive technology for reliable access to bulk storage of unstructured data.
  • 12Gb/s SAS interface for easy integration into replicated and RAID storage systems.
  • Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
  • Industry-leading rotational vibration tolerance ensures consistent performance.
  • Improved power and cooling efficiencies with low power and consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards.
  • Engineered for 24x7 workloads of 550TB/yr – 10x that of desktop drives.
  • Robust performance with processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis.

Best-Fit Applications

  • Hyperscale applications
  • High-capacity RAID storage
  • Mainstream enterprise external storage arrays (SAN, NAS, DAS)
  • Cloud data centres – replicated bulk data storage
  • Enterprise backup and restore – D2D, virtual tape
  • Centralised surveillance


Compatibility:

This drive is compatible with any server that accepts 3.5" x 1.0" (LFF Hard Drive) SAS drives

Drive ModelST2000NM0034
Capacity2TB/2000GB
Self- Encrypting DriveNo
InterfaceSAS 12Gb/s
Features
Protection Information (T10 DIF)Yes
Humidity SensorYes
Super ParityYes
Low HalogenYes
PowerChoice™ TechnologyYes
Cache, Multisegmented (MB)128
Reliability/Data Integrity
Mean Time Between Failures (MTBF)1.4M
Reliability Rating @ Full 24x7 Operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10
Power-On Hours per Year8760 (24x7)
Sector Size (Bytes per Sector)512, 520, 528
Performance
Spindle Speed (RPM)7,200
Interface Access Speed (Gb/s)12.0
Max Sustained Transfer Rate OD (MB/s)Up to 226
Average Latency (ms)4.16
Interface PortsDual
Rotation @ 1500 Hz (rad/s)12.5
Power Consumption
Idle Power, Average (W)4.84
Typical Operating, Random Read (W)8.93
Power Supply Requirements+12V and +5V
Environmental
Temperature, Operating (°C)5 to 60
Vibration, NonoperatingL 10Hz to 500Hz (Grms)4.9
Shock, Operating, 2ms (Read/Write) (Gs)70/40
Shock, Nonoperating, 1ms and 2ms (Gs)300
Physical
Height (mm/in)26.1/1.028
Width (mm/in)101.85/4.010
Depth (mm/in)147.0/5.878
Weight (g/lb)605/1.344

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1HT274-001

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
