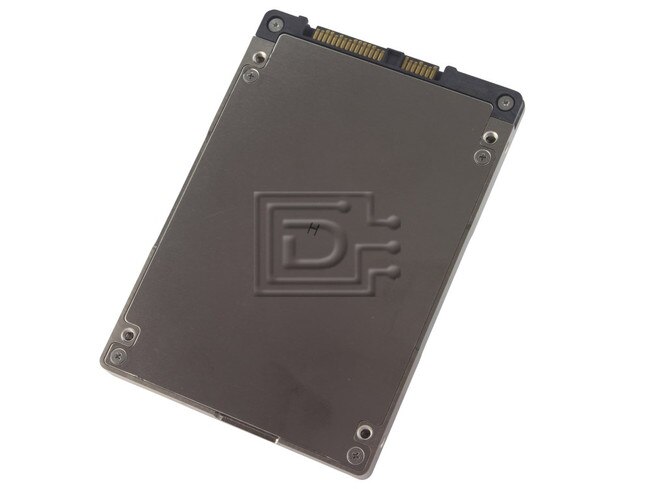

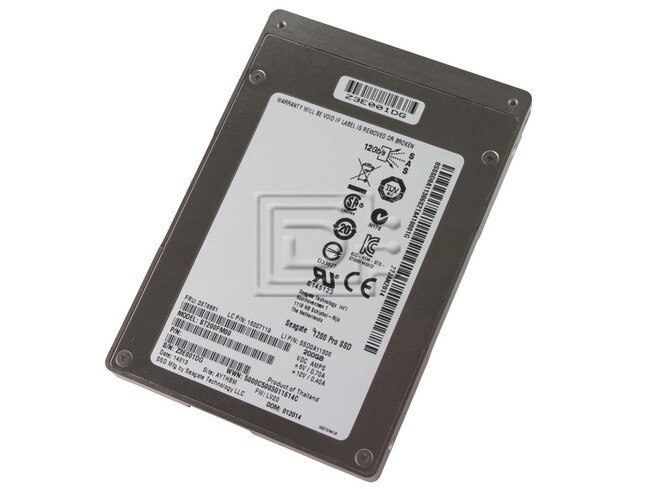

Seagate ST200FM0073 200GB SAS SSD

(0) No Reviews Yet

Seagate Part #/MPN: ST200FM0073

DiscTech Item #: SGT-ST200FM0073-BN-OE


$789.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$789.00

Enterprise Grade

Capacity: 200GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Seagate ST200FM0073 200GB 2.5in 12Gbps Enterprise SAS Ultra-Fast MLC SED SSD -Brand New

Seagate ST200FM0073 200GB 2.5" 12.0 Gbps Enterprise Statistical Analysis System Ultra-Fast Multi-Level Cell Self Encripted Drive Solid State Disk Drive -Brand New

Ultra-Fast, Consistent Performance Plus 12Gb/s SAS

  • Helps remove storage bottlenecks and close the gap between processor and data access performance
  • Delivers the speed and performance consistency needed for demanding enterprise applications
  • Designed to reduce data access wait times under the most complex, write-intensive workloads
  • First SSD to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
  • Ensures data availability for critical production systems by using redundant, failover I/O communication paths
  • Helps improve ROI by leveraging existing SAS infrastructures
  • Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
  • Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
  • Helps ensure data integrity with multiple layers of I/O error detection and correction
  • Strong data security with Self-Encrypting Drive (SED) and FIPS SED models

Best-Fit Applications

  • Demanding, enterprise applications with complex, write-intensive and mixed workloads
  • IOPS-hungry enterprise applications, such as high-performance computing, online transaction processing and heavy data analytics
  • Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
  • External enterprise storage solutions (SAN, NAS, DAS) and servers


Compatibility:

This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives

Drive ModelST200FM00732
Capacity200GB
Performance
Interface Option12Gbps SAS
NAND Flash TypeMLC
Sustained Data Transfer Rate, Max (MB/s)750
I/O Data Transfer Rate, Max (MB/s)1200
I/Os per Second per Watt (IOPS/W)27,990
Sequential Read/Write Command Rate (MB/s) Peak, 128KB750/400
Random Read/Write Command Rate (IOPS) Peak, 4KB110,000/25,000
Configuration/Reliability
Nonrecoverable Read Errors per Bits Read, Max1 per 10E16
Annualized Failure Rate (AFR)0.44%
Total Terabytes Written (TBW) Over Warranty Period3650
Limited Warranty With Media Usage (years)5
Power Management
+5/+12V Max Start Current (A)0.7/0.4
Average Sleep Power (W)2.5
Average Idle Power (W)2.89
Average Operating Power (W)3.93
Enviromental
Internal Operating Temperature (°C)0 to 60
Nonoperating Temperature (°C)−40 to 75
Temperature Change Rate/Hr, Max (°C)20
Relative Humidity, Noncondensing (%)5 to 95
Shock, 0.5ms (Gs)1000
Vibration, 20Hz to 2000Hz (Grms)11.08
Physical
Height (mm/in)7.0/0.276
Width (mm/in)70.10/2.76
Depth (mm/in)100.45/3.955
Weight (g/lb)100.0/0.220

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
