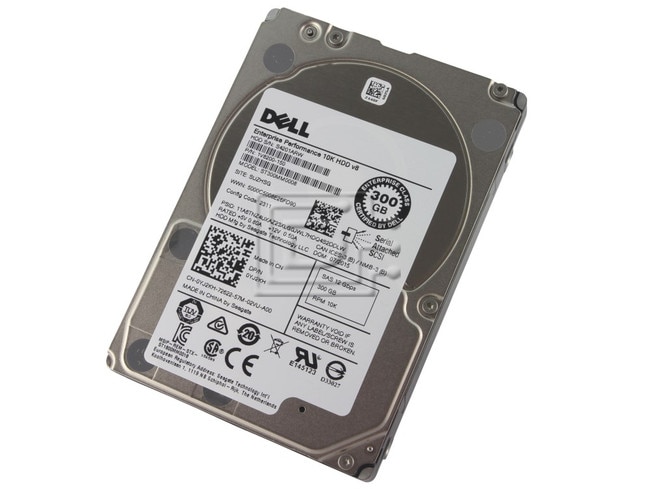

Seagate ST300MM0008 300GB SAS Hard Drive

Seagate ST300MM0008 / YJ2KH 300GB 2.5in 12.0Gbps 10,000 RPM Enterprise SAS Hard Drive - Brand New OEM

Alt MPN: 0YJ2KH, YJ2KH, 1V8200

General Description
Seagate® Enterprise Performance 10K HDD v8 drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

The TurboBoost functionality provides improved performance over standard HDDs in real-world workloads. This improvement is due to the addition of a solid state component that caches “hot” data for reads as well as protects write data via non-volatile cache (NVC).

Seagate Enterprise Performance 10K HDD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications, this document, and the SAS Interface Manual (part number 100293071) which describes the general interface characteristics of this drive. Seagate Enterprise Performance 10K HDD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA hard disk drives. This allows integrators to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.

Seagate Enterprise Performance 10K HDD drives use a dedicated load/unload zone at the outermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the ramp load/unload when power is removed from the drive and during the deeper sleep modes.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation in any orientation.

Standard features
Seagate Enterprise Performance 10K HDD drives have the following standard features:

• 3.0 / 6.0 / 12.0 Gb Serial Attached SCSI (SAS) interface
• Integrated dual port SAS controller supporting the SCSI protocol
• Support for SAS expanders and fan out adapters
• Firmware downloadable using the SAS interface
• 128 - deep task set (queue)
• Supports up to 32 initiators
• 128MB data buffer
• NVC-backed write cache of approximately 512K (4096 native and 512 emulation standard models)
• 32GB TurboBoost read cache
• 8MB TurboBoost NVC-backed write cache
• Jumper less configuration
• User-selectable logical block sizes for 512 emulation and native models
• Industry standard SFF 2.5-inch dimensions
• Programmable logical block reallocation scheme
• Flawed logical block reallocation at format time
• Programmable auto write and read reallocation
• Reallocation of defects on command
• ECC maximum burst correction length of 520 bits for 512 byte blocks and 1400 bits for 4K byte blocks.
• No preventive maintenance or adjustments required
• Dedicated head load/unload zone and automatic shipping lock
• Embedded servo design
• Self diagnostics performed when power is applied to the drive
• Zone bit recording (ZBR)
• Vertical, horizontal, or top down mounting

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS Drives.

ROHS Compliant

Alternate MPNs: 0YJ2KH YJ2KH 1V8200

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

1 Year DiscTech Warranty
