Seagate Part #/MPN: ST400FM0013
DiscTech Item #: SGT-ST400FM0013-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 400GB
Speed: Solid State
Interface Types: SAS
Form Factor: 2.5" SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 12Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use / MU

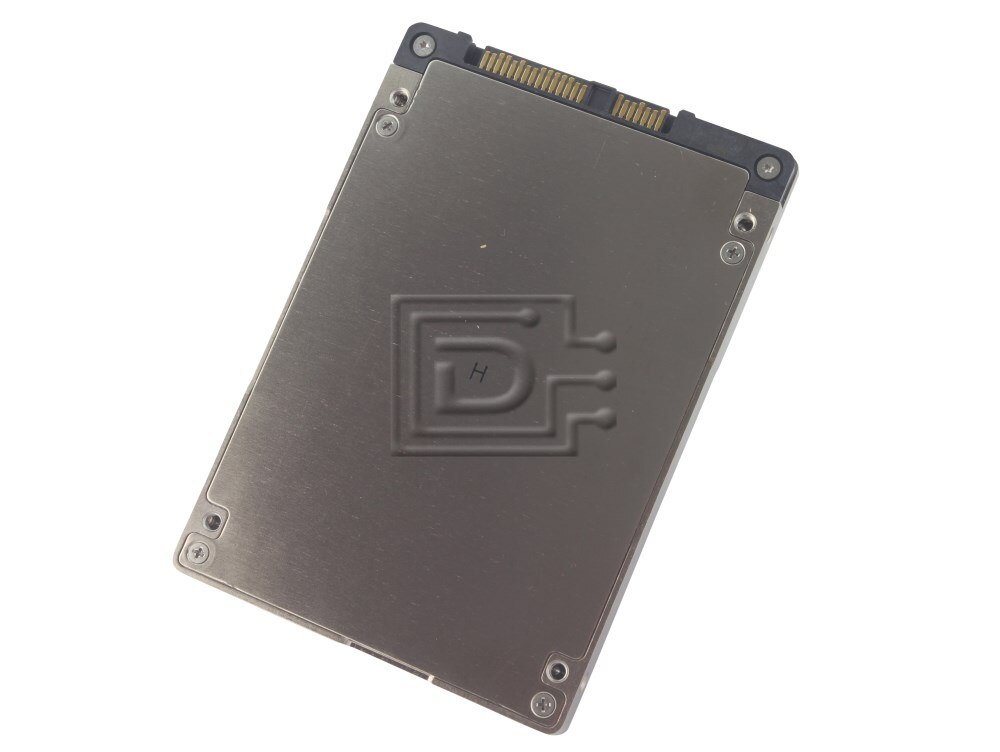

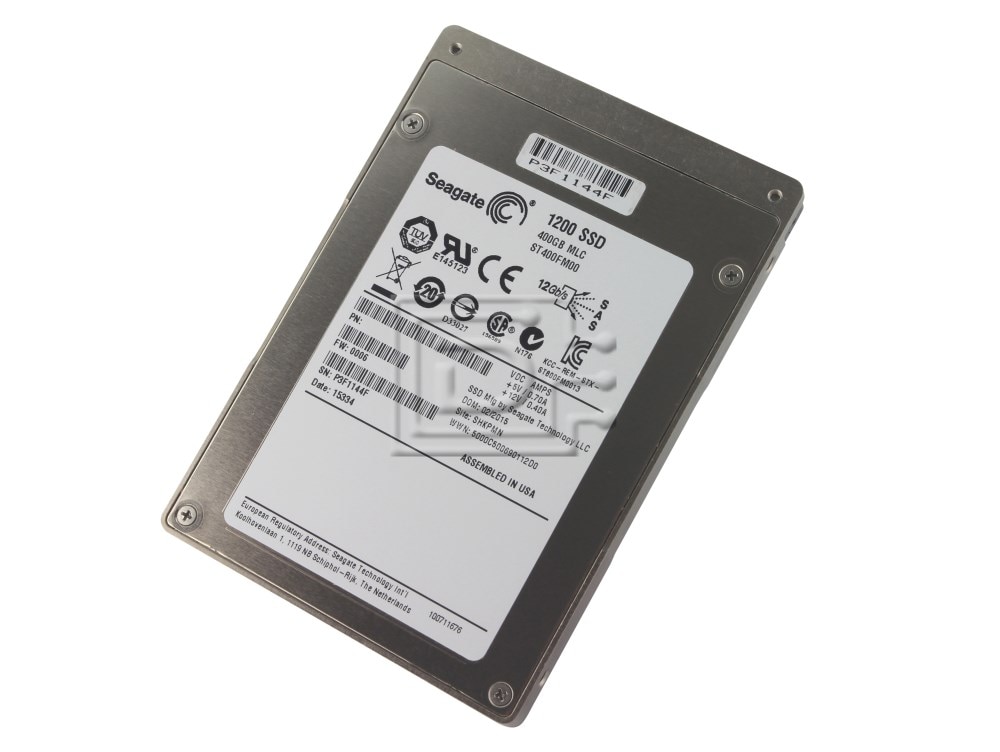

Seagate ST400FM0013 400GB 12Gbps 2.5" SAS SSD - Brand New
Seagate ST400FM0013 400GB 12.0 Gbps 2.5-inch Standard Managed Life Serial-Attached SCSI Solid-State Drive - Brand New
Seagate 1200 SSD drives provide high performance, high capacity data storage for a variety of systems with a Serial Attached SCSI (SAS) interface. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.
Seagate 1200 SSD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications and the SAS Interface Manual (part number 100293071) which describes the general interface characteristics of this drive. Seagate 1200 SSD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA drives. This allows users to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.
| Product Specifications | |
|---|---|
| Product Name | ST400FM0013 |
| Product Type | Solid State Drive |
| Drive Interface | SAS |
| Drive Width | 2.5" |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Storage Capacity | 400GB |
| NAND Flash Type | MLC |
| Performance | |
| Maximum Burst Transfer Rate | 1200MB/s |
| Peak sequential 128KB read/write data transfer rate (MB/s max) | 750/500 |
| Sustained sequential 128KB read/ write data transfer rate (MB/s) | 750/95 |
| Peak 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustained 4KB random read/write command rate (IOPs) | 110,000/7500 |
| Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 60,000 |
| Reliability | |
| TBW (per JEDEC JESD218) | 7300 TB |
| Power Requirements | |
| Average idle current (W) | 2.72 |
| Delayed start (max) DC (W) | 2.29 |
| Peak operating current (random read) Typical DC (W) | 3.71 |
| Peak operating current (random read) Maximum DC (W) | 3.98 |
| Peak operating current (random write) Typical DC (W) | 4.72 |
| Peak operating current (random write) Maximum DC (W) | 5.28 |
| Peak operating current (sequential read) Typical DC (W) | 4.39 |
| Peak operating current (sequential read) Maximum DC (W) | 4.61 |
| Peak operating current (sequential write) Typical DC (W) | 6.31 |
| Peak operating current (sequential write) Maximum DC (W) | 6.53 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
