Seagate Part #/MPN: ST800FM0002
DiscTech Item #: SGT-ST800FM0002-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 320
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC

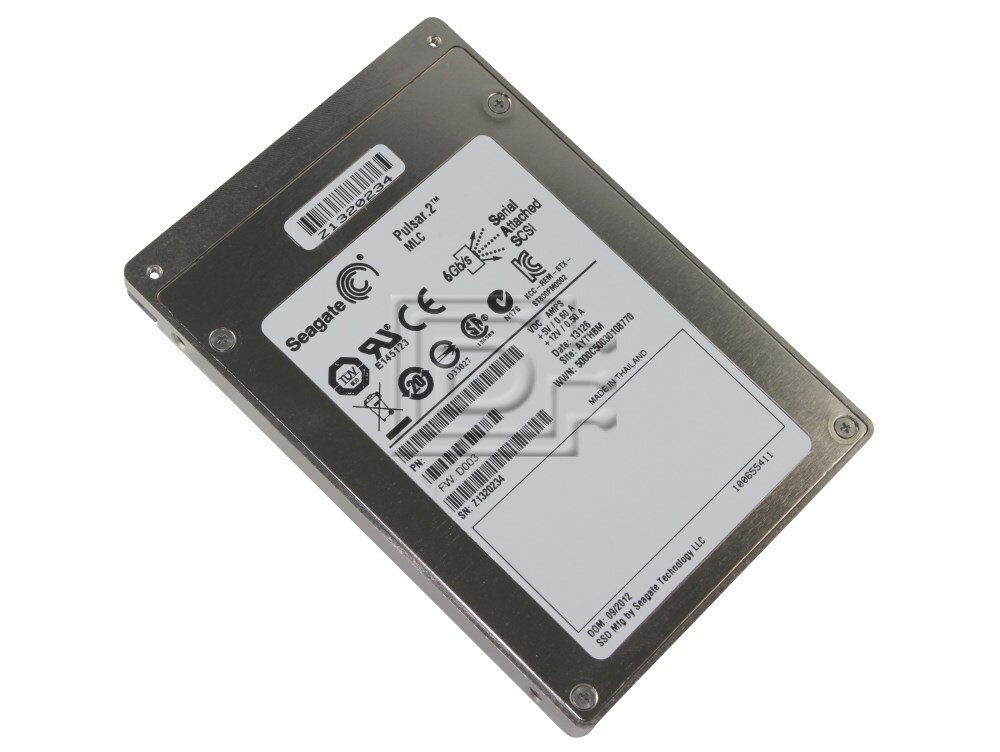

Seagate ST800FM0002 800GB 6Gbps 2.5" MLC SAS SSD - Brand New
Seagate ST800FM0002 800GB 6.0 Gbps 2.5-inch Serial-Attached SCSI Multi-Level Cell Solid-State Disk Drive - Brand New
Pulsar.2 SAS drives have the following standard features:
- 6.0 Gb Serial Attached SCSI (SAS) interface
- Integrated dual port SAS controller supporting the SCSI protocol
- Support for SAS expanders and fanout adapters
- Firmware downloadable using the SAS interface
- 128 - deep task set (queue)
- Supports up to 32 initiators
- Jumperless configuration
- User-selectable logical block size (512, 520, 524, 528, 4096, 4160, 4192, or 4224 bytes per logical block)
- Industry standard SFF 2.5-inch dimensions
- ECC maximum burst correction length of 96 bits
- No preventive maintenance or adjustments required
- Self diagnostics performed when power is applied to the drive
- Vertical, horizontal, or top down mounting
- Drive Self Test (DST)
- Background Media Scan (BMS)
- Parallel flash access channels
- Power loss data protection
- Thin Provisioning with Block Unmap Support
- Silent operation
| Product Specifications | |
|---|---|
| Product Name | ST800FM0002 |
| Product Type | Solid-State Drive |
| Drive Interface | SAS |
| Drive Width | 2.5" |
| Drive Interface Standard | 6Gb/s SAS |
| Drive Type | Internal |
| Storage Capacity | 800GB |
| NAND Flash Type | MLC |
| Performance (Managed Life Warranty) | |
| Maximum Burst Transfer Rate | 600MB/s |
| Peak sequential 128KB read/write data transfer rate (MB/s max) | 370/200 |
| Sustained sequential 128KB read/ write data transfer rate (MB/s) | 370/200 |
| Peak 4KB random read/write command rate (IOPs) | 48,000/11,000 |
| Sustained 4KB random read/write command rate (IOPs) | 48,000/15,000 |
| Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 23,000 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
