Seagate Part #/MPN: ST800FM0043
DiscTech Item #: SGT-ST800FM0043-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

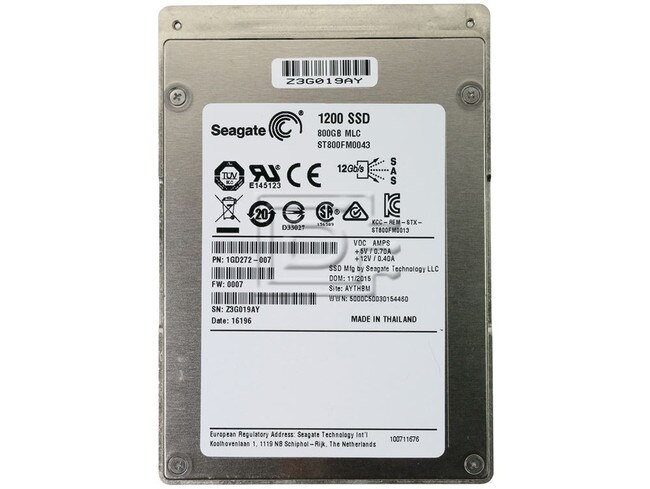

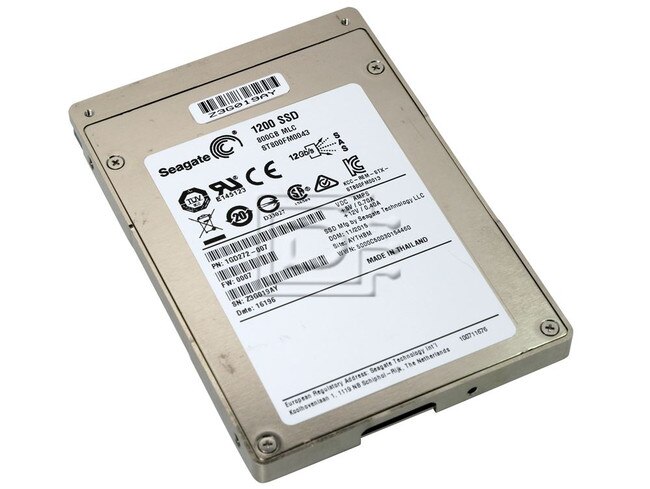

Seagate ST800FM0043 800GB 12.0Gbps 2.5in Enterprise Mixed-Use 10-DWPD SAS Ultra-Fast MLC SSD - Refurbished
Alt MPN: 1GD272-007
Ultra-Fast, Consistent Performance Plus 12Gb/s SAS
- Helps remove storage bottlenecks and close the gap between processor and data access performance
- Delivers the speed and performance consistency needed for demanding enterprise applications
- Designed to reduce data access wait times under the most complex, write-intensive workloads
- First SSD to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
- Ensures data availability for critical production systems by using redundant, failover I/O communication paths
- Helps improve ROI by leveraging existing SAS infrastructures
- Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
- Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
- Helps ensure data integrity with multiple layers of I/O error detection and correction.
Best-Fit Applications
- Demanding, enterprise applications with complex, write-intensive and mixed workloads
- IOPS-hungry enterprise applications, such as high-performance computing, online transaction processing and heavy data analytics
- Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
- External enterprise storage solutions (SAN, NAS, DAS) and servers
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SAS drives.
| Drive Model | ST800FM0043 |
|---|---|
| Capacity | 800GB |
| Performance | |
| Interface Option | 12Gbps SAS |
| NAND Flash Type | MLC |
| Sustained Data Transfer Rate, Max (MB/s) | 750 |
| I/O Data Transfer Rate, Max (MB/s) | 1200 |
| I/Os per Second per Watt (IOPS/W) | 27,160 |
| Sequential Read/Write Command Rate (MB/s) Peak, 128KB | 750/500 |
| Random Read/Write Command Rate (IOPS) Peak, 4KB | 110,000/40,000 |
| Configuration/Reliability | |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E16 |
| Annualized Failure Rate (AFR) | 0.44% |
| Total Terabytes Written (TBW) Over Warranty Period | 14,600 |
| Power Management | |
| +5/+12V Max Start Current (A) | 0.7/0.4 |
| Average Sleep Power (W) | 2.5 |
| Average Idle Power (W) | 3.0 |
| Average Operating Power (W) | 4.05 |
| Enviromental | |
| Internal Operating Temperature (°C) | 0 to 60 |
| Nonoperating Temperature (°C) | −40 to 75 |
| Temperature Change Rate/Hr, Max (°C) | 20 |
| Relative Humidity, Noncondensing (%) | 5 to 95 |
| Shock, 0.5ms(Gs) | 1000 |
| Vibration, 20Hz to 2000Hz Grms) | 11.08 |
| Physical | |
| Height (mm/in) | 7.0/0.276 |
| Width (mm/in) | 70.10/2.76 |
| Length (mm/in) | 100.45/3.955 |
| Weight (g/lb) | 100/0.220 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1GD272-007
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
