Seagate ST91608220AS SATA Hard Drive

Seagate Part #/MPN: ST91608220AS

DiscTech Item #: SGT-ST91608220AS-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 160GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 11 / 13

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 8MB

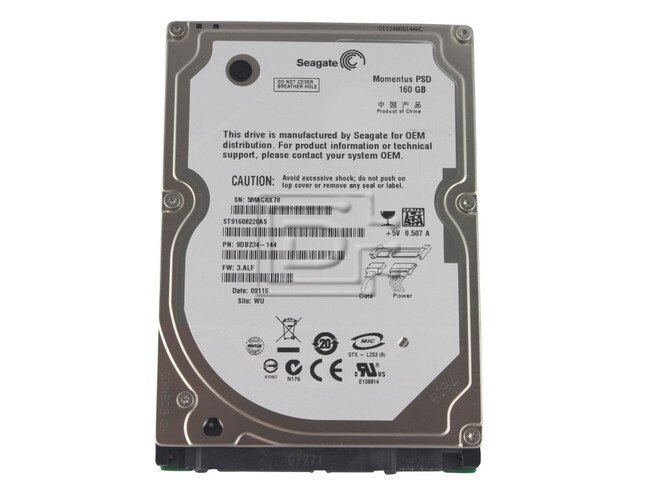

Seagate Momentus 5400 ST91608220AS 160GB 5.4K 2.5" SATA Hard Drive - Brand New

The Momentus 5400 PSD drive is a 2.5-inch drive designed with the Microsoft Vista OS in mind. By designing in a 256-MB flash memory to act as a large holding tank for frequently accessed data, the Momentus 5400 PSD drive will boot laptop PCs quickly and resume from hibernation almost instantly. The Momentus 5400 PSD drive and Windows Vista can analyze the laptop usage pattern, pin frequently used files in the flash and predict your next move. This technology allows the drive to operate out of flash with the disks spun down to conserve power. When the Momentus 5400 PSD drive operates out of the flash with the spindle motor powered off (hybrid mode), the drive becomes incredibly robust in highly mobile environments.

ManufacturerSeagate Technology
Product LineSeagate Momentus
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature0 °C
Shock Tolerance Operating350 G @ 2 ms
Shock Tolerance Storage900 G @ 1 ms
Connector Type7 pin Serial ATA
Interface (Storage)Serial ATA-150
Drive Performance
Average Latency5.56 ms
Average Seek Time11 ms
Buffer Size8 MB
Capacity80 GB
Data Transfer Rate150 MBps
Form Factor2.5 x .374
Hard Drive TypeInternal hard drive
Interface TypeSerial ATA-150
Non-Recoverable Errors1 per 10^14
Spindle Speed5400 rpm
Dimensions & Weight
Depth3.945 in
Height.374 in
Weight.254 lbs
Width2.75 in

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
