Silicom Part #/MPN: PEXG6I
DiscTech Item #: SIL-PEXG6I-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: PCIe
|
Silicom’s Gigabit Ethernet PCI Express Server adapters enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.
Silicom’s Gigabit Ethernet PCI-Express Server adapters have an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.
Silicom’s Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Key features
Copper Gigabit Ethernet (1000Base-T) Adapters :
• Independently copper Gigabit Ethernet channels support six, four, two and one Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
• Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.
• Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
• RJ-45 female connectors.
Common Key features
• Host Interface:
• Host Interface standard support.
• PCI-Express Base Specification Revision 1.0a.
• High performance, reliability, and low power use in advanced Intel integrated MAC + PHY / SERDES chip Controllers.
• Ultra deep, packet buffer per channel lowers CPU utilization, avoids PCI-Express congestion
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
• Server class reliability, availability and performance features:
• Link Aggregation and Load Balancing
Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
• Switch and NIC Independent.
• Failover
• Priority queuing – 802.1p layer 2 priority encoding.
• Virtual LANs –802.1q VLAN tagging.
• Jumbo Frame (16KB).
• 802.x flow control.
• Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
• LEDs indicators for link/Activity/Speed status.

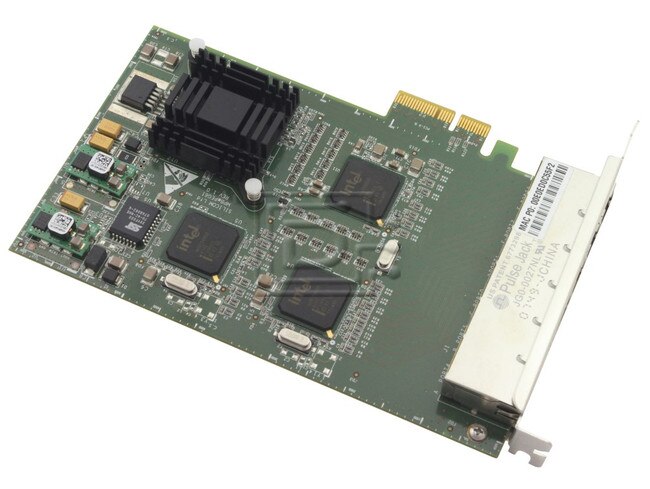

PEG6I: General Technical Specifications
Interface Standard: | PCI-Express Base Specification Revision 1.0a |
| Board Size: | Standard height short add-in card 167.64mm X 111.18mm (6.60” X 4.377”) |
| PCI Express Card Type: | X4 Lane |
| PCI Connector: | X4 Lane |
| PCI Express Voltage: | +3.3V +-9%, +12V +- 8% |
| Holder: | Metal Bracket |
| Weight: | 140 gram (4.94 oz) |
| Power Consumption: | 13.5W: 1.12 A at 3.3V and 0.81 A at 12V, Typical all ports operate at 1000Mbit/s. 8.5W: 1.12 A at 3.3V and 0.40 at 12V, Typical all ports operate at 100Mbit/s. 8W: 1.12 A at 3.3V and 0.34 at 12V, Typical all ports operate at 10Mbit/s 8W: 1.11 A at 3.3V and 0.35A at 12V, Typical No link at all ports |
| Operating Temperature: | 0°C – 50°C (32°F - 122°F) |
| Storage Temperature: | -20°C–65°C (-4°F–149°F) |
| EMC Certifications: | CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |

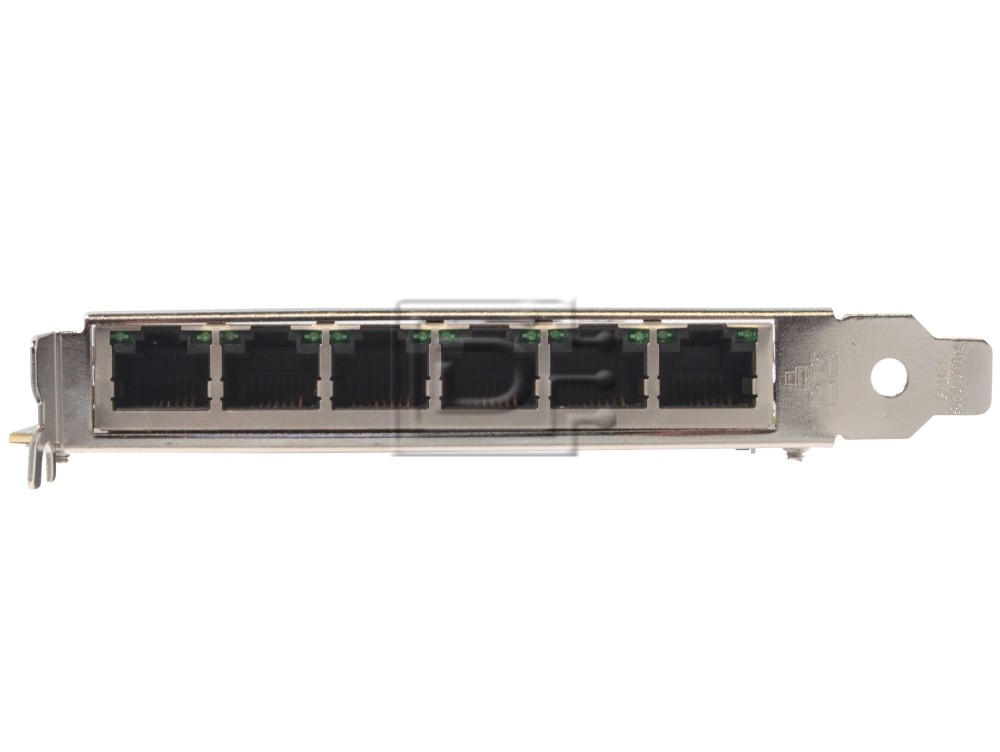

PXG6: LED / Connector Specifications
LEDs: | (2) LEDs per port |
| LEDs location | LEDs are located on the PCB, visible via holes in the metal bracket holder |
| Connectors: | (6) Shielded RJ-45 |
Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:
IEEE Standard / Network topology: | Gigabit Ethernet, 1000Base-T |
| Full duplex / Simplex | Support both Simplex & Full duplex operation in all operating speeds |
| Auto negotiation: | Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s. |
| Data Transfer Rate: | 1000 Mbit/s, 100 Mbit/s and 10 Mbits/sec in simplex mode per port. 2000Mbit/s 200 and 20 Mbit/s in full duplex mode per port. |
| Cables and Operating distance: | 10Base-T Category 3, 4, or 5 maximum 50m * 100Base-Tx Category 5 maximum 50m * 1000Base-T Category 5E maximum 50m * *Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard |
Operating Systems Support (all adapters):
Operating system support: | Windows.NET |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: PEXG6I-RoHS
Weight: 2 lb
