SUN MICROSYSTEMS Part #/MPN: ST336607LSUN36G
DiscTech Item #: SUN-ST336607LSUN36G-NP-OE
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.7 / 5.3
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

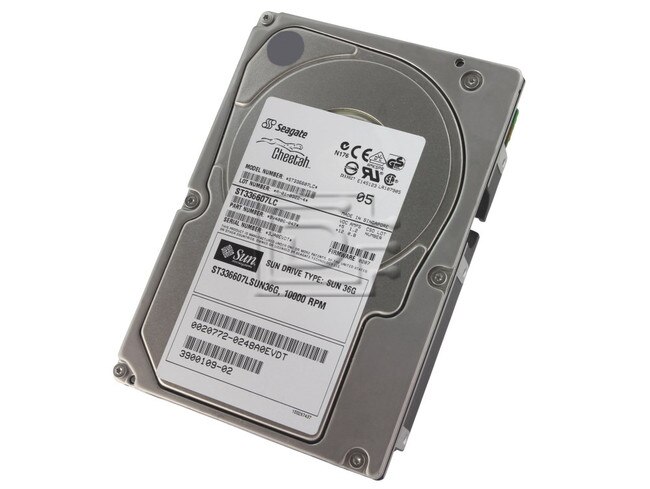

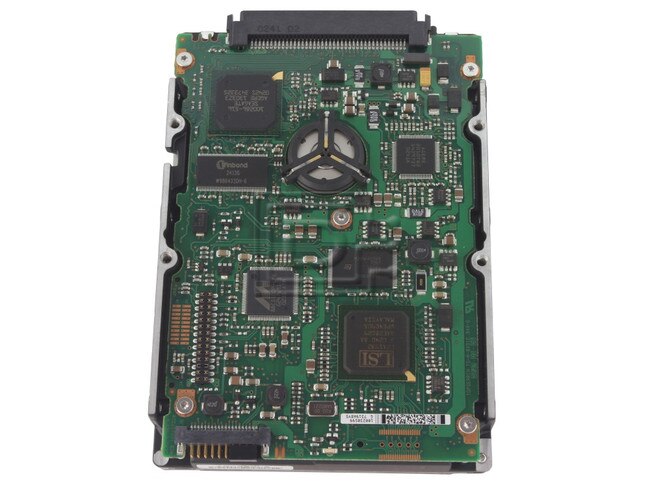

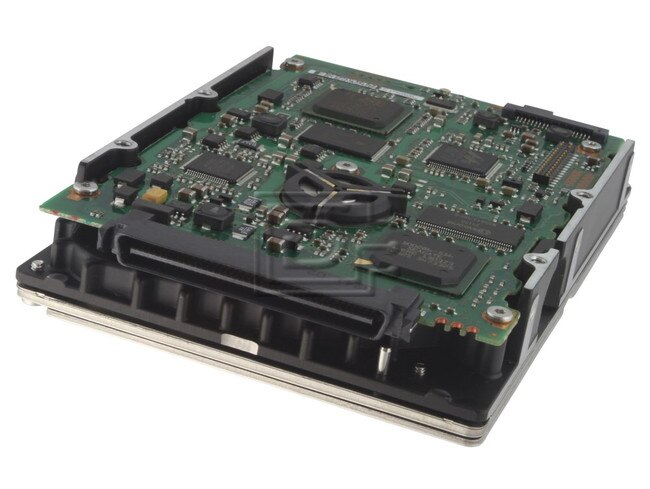

Sun / Seagate Cheatah 36G 36GB U320 80pin SCA-2 SCSI Hard Drive ST336607LSUN36G / ST336607LC - New Pull
The Cheetah 10K.6 is Seagate's sixth-generation 10K RPM high performance, high capacity disc drive. With the fastest interfaces, the highest reliability and the most mature product design, the Cheetah 10K.6 enables the lowest ownership cost. In data intensive environments, increasing the capacity per disc drive lowers ownership costs by deploying fewer systems that use less cubic feet of space requiring less infrastructure such as cabinets, HBAs and less wattage of power. spacer Features Low Ownership Cost Large capacities enables greater storage per cubic foot meaning that fewer systems are deployed, less space is utilized and operating costs are lowered. The Fastest 10K Cheetah ever! 25% improved Data Transfer Rate and nearly a 10% improvement in Seek Times over the prior generation Cheetah 73LP. Several Millennia of Engineering & Manufacturing Experience Seagate is a dependable, consistent partner offering the best technology manufactured in a highly automated factory assuring unmatched reliability. Highest Reliability Most Mature Product Design Data integrity assured 10,000 RPM spindle speed Fast access to a variety of storage applications The Most Advanced Interfaces Ultra320 SCSI & 2Gbit/sec Fibre Channel interfaces allow the fast operation of more drives than ever at the highest speeds possible. Distinctions * The Highest Reliability Rating in the Disc Drive Industry * Consistently High Investment in Research & Development Creates the Highest Technology Products * Unmatched Design and Manufacturing Experience * The Seagate Exclusive Design Service Center (DSC) Can Lower the Cost of Deploying Storage Systems * The Lowest Cost of Ownership 10K Storage Solution * The Cheetah Brand of Disc Drives are the Preferred Disc Drive for Storage Area Networks (SAN).
SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2002 ST-336607LW Ultra320 SCSI Wide (Cheetah 10K.6, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336607LW/LWV only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)Í³::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄÄ³ÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336607LC/LCV only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄÄ³ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-336607LW only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ FRONT TOP (HDA) J2 87654321 ÕÍ¸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍÍµJ1 DRIVE BOTTOM :::::::: ÔÍ¾ ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-336607LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍÍ¼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍÍ¸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍµ::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍÍ¾123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-336607LW UNFORMATTED CAPACITY (GB) ________________47.5 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________718 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________99,710 CYLINDERS ________________________________49,855 user HEADS ______PHYSICAL______________________2 DISCS (2.5 in) ___________________________1 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML INTERNAL TRANSFER RATE (mbits/sec)________475 to 841 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_59 to 105 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/320 Sync SPINDLE SPEED (RPM) ______________________10,008 AVERAGE LATENCY (mSEC) ___________________2.99 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________368K avg SECTORS PER DRIVE ________________________71,687,372 TPI (TRACKS PER INCH) ____________________64,000 BPI (PEAK KBITS PER INCH) ________________570 AVERAGE ACCESS (ms read/write)____________4.7/5.3 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.35/0.55 MAX FULL SEEK (ms read/write) ____________9.0/9.5 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________40 nonoperating ____________________75/225/120 ACOUSTICS (Bels typical, sound power) ____3.6 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______7.2/24.6 POWER REQUIREMENTS: +12V START-UP (amps) _1.03 +12V TYPICAL (amps) __0.26 idle +5V START-UP (amps) __0.90 +5V TYPICAL (amps) ___0.81 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.61/0.731 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (09/12/2002)
Click here to view the manufacturer's item description/brochure
Weight: 2 lb
Warranty: 1 Year DiscTech
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
