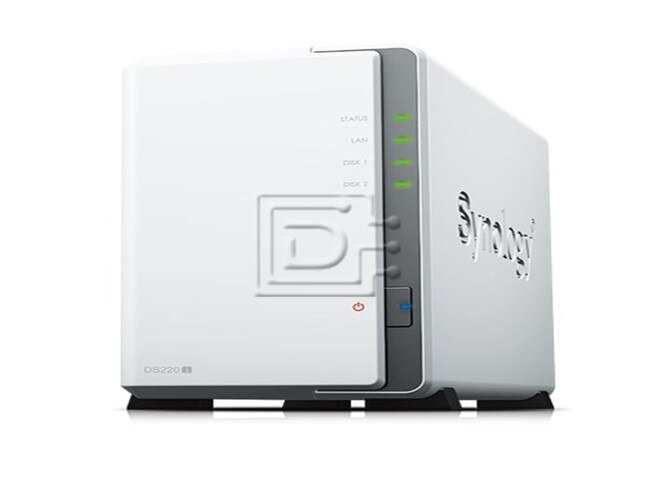

Synology DiskStation DS220j NAS Server

Synology Part #/MPN: DS220j

DiscTech Item #: SYN-DS220j-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 2

Wattage/VA: 60W

Voltage: 110-240V Multi

Synology DiskStation DS220j 2-Bay SATA Dual Core Encrypted NAS Server - Diskless - Brand New

Synology DiskStation DS220j 2-Bay Serial ATA / SATA Dual Core Encryption Network-Attached Storage / NAS Server - Diskless - Brand New

Synology DiskStation DS220j 2-bay Network Attached Storage Server includes:

  • Dual USB 3.0 ports
  • 1x Ethernet RJ45 1GbE LAN ports
  • Kensington Security Slot
  • 512 MB DDR4 RAM
  • 2x 3.5" or 2.5" SATA Drive Bays
  • Realtek RTD1296 4-core 1.4 GHz CPU

DiskStation DS220j
Personal cloud solution for data sharing and backup

Household Cloud Solution for Data Sharing and Backup
Synology DiskStation DS220j is an entry level network-attached storage for your household to store and share photos, videos, documents, and all types of personal data. The 2-bay private cloud solution provides complete and intuitive data protection approaches for you to easily back up computer data and mobile photos, with just a few clicks.


  • A Simple-to-Use Private Cloud for Everyone
    • 24/7 file server for your household to store, share, and backup personal data
  • Easy-to-Use
    • Award-winning DiskStation Manager (DSM) brings intuitive operation flow and reduces learning curve
  • Seamless File Sharing
    • Access and share data with any Windows®, macOS®, and Linux® computers or mobile devices
  • On-the-Fly Streaming
    • Integrated media server to support multimedia content streaming
  • Anytime, Anywhere
    • Freely access private cloud files on-the-go and back up mobile photos with iOS and Android™ apps
  • Data Guardian
    • Safeguard digital assets with cross-platform computer backup applications
Model NumberDS220j
CPURealtek RTD1296 4-core 1.4 GHz
Hardware Encryption EngineYes
Memory512 MB DDR4
Compatible drive type2 x 3.5" or 2.5" SATA HDD3 (drive not included)
External port2 x USB 3.0 port
Size (HxWxD)165 x 100 x 225.5 mm
Weight0.88 kg
LAN1 x Gigabit (RJ-45)
Wake on LAN/WANYes
Scheduled power on/offYes
System fan1 (92 x 92 x 25 mm)
AC input power voltage100 V to 240 V AC
Power frequency50/60 Hz, single phase
Operating temperature0°C to 40°C (32°F to 104°F)
Storage temperature-20°C to 60°C (-5°F to 140°F)
Relative humidity5% to 95% RH
Maximum operating altitude5,000 m (16,400 ft)

Click here to view the manufacturer's item description/brochure

Weight: 12 lb

Warranty: 2 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

2 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
