Toshiba Part #/MPN: MBF2600RC
DiscTech Item #: TOS-MBF2600RC-BN-OE-DEP
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.0 / 4.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

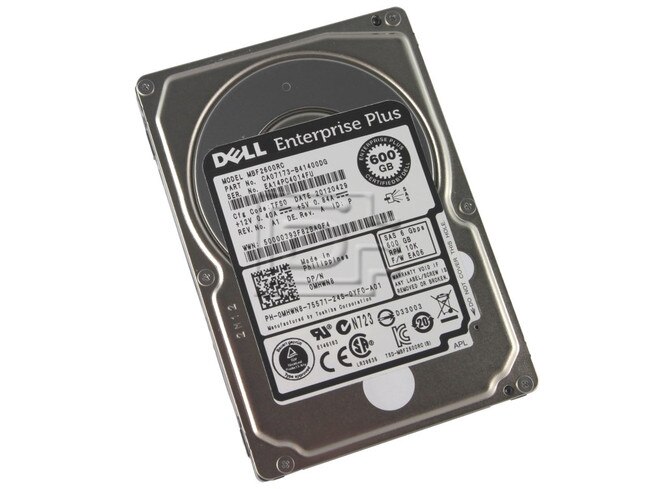

Toshiba / Fujitsu MBF MBF2600RC 600GB 10,000 RPM 6.0Gbps SFF Serial Attached SCSI Dell Enterprise Plus Hard Drive - Brand New OEM
Alt. MPN: CA07173-B41400DG
Dell Enterprise Plus PNs : MHWN8 0MHWN8
Reinforcing its strong market position in small form factor hard disk drives, Toshiba introduces a new high-performance, power-efficient enterprise class, 2.5-inch SAS hard drive offering industry leading storage capacity of up to 600GB. The MBF2-RC series drive features a 10,025 RPM spin speed, 6 Gb/sec SAS interface, and environmentally friendly low power consumption benefits.
With a top storage capacity of 600GB, Toshiba’s newest small form factor drive equals the highest capacity point currently available within the entire 2.5 and 3.5-inch form factor enterprise class segments. In addition to the low power consumption design of 2.5-inch hard drives, the MBF2-RC series features an enhanced power condition state technology enabling lower RPM spin speeds when not in use, allowing for up to 28% reduction in power consumption.
The MBF2-RC series drive is designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other business-critical, power-conscious, data-intensive systems.
This drive is compatible with any server that supports SFF (small form factor SAS drives).
|Formatted storage capacity||600.0 GB|
|Seek time (track to track)||Read 0.2 / Write 0.4 ms. typ.|
|Seek time (average)||4.0 / 4.4 ms. typ. (read/write)|
|Average latency time||2.99 ms.|
|Rotational speed||10,025 RPM|
|Interface||SAS II (6Gbps)|
|Data Buffer Size||16 MB|
|Power requirement Idle (ready)||4.5 W typ.|
|Form Factor||2.5-inch x 15mm high|
|Ambient temperature (operating)||5 to 55 degrees C|
|Ambient temperature (non-operating)||-40 to 70 degrees C|
|Vibration (operating)||0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)|
|Vibration (non-operating)||3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)|
|Shock (operating)||100G Max (1ms)|
|Shock (non-operating)||400G Max (1ms)|
|Acoustic noise (at 1 metre idle)||2.9 bels|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: MHWN8 0MHWN8 CA07173-B41400DG
Weight: 0.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
