Toshiba Part #/MPN: MK1001GRZB
DiscTech Item #: TOS-MK1001GRZB-RF-2Y
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:2 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 100GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: Read : 510 MBps / Write : 230 MBps
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: SLC

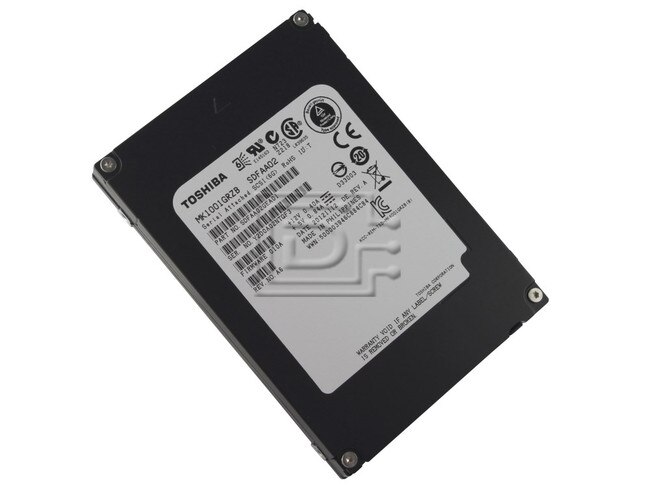

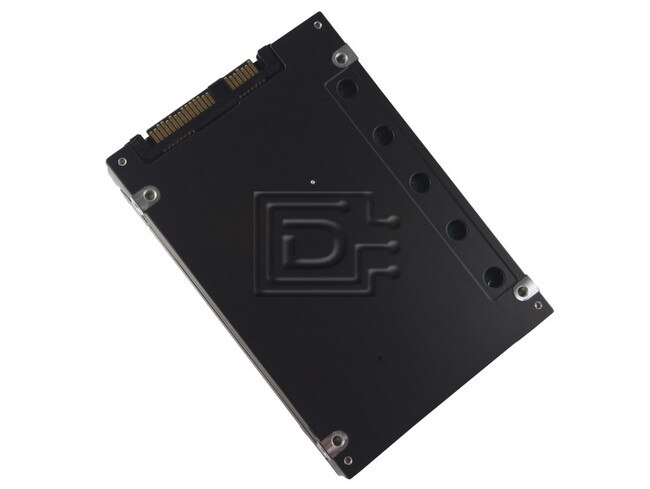

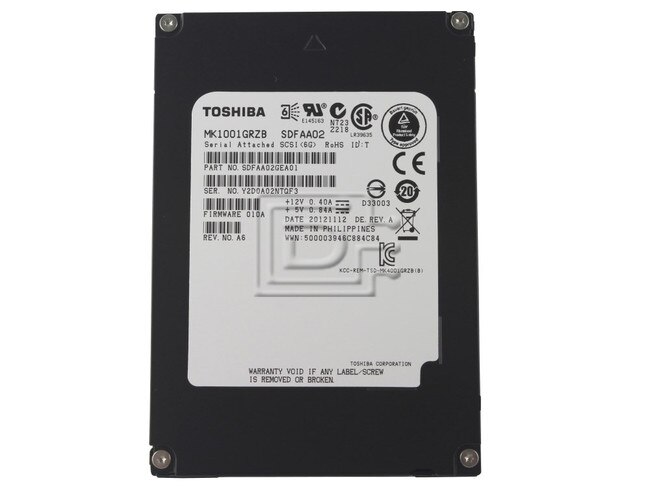

Toshiba MK1001GRZB 100GB 6Gbps SLC SAS / Serial Attached SCSI 2.5" SFF Enterprise SSD - Refurbished
Toshiba MK1001GRZB 100GB 6Gbps Single Level Cell SAS / Serial Attached SCSI 2.5inch Small Form Factor Enterprise Sold State Drive - Refurbished
Extending its position in the enterprise storage market, Toshiba Storage Device Division offers its new family of enterprise-class solid state drives (eSSDs). The MK1001GRZB uses the latest 32 nanometer (nm) enterprise grade single-level cell (SLC) NAND flash memory from Toshiba and 6 Gb/sec Serial Attached SCSI (SAS) interface.
The 2.5-inch (6.4cm) eSSD is available in three levels of capacity, 100, 200, and 400GB and is designed for use in demanding enterprise environments, such as servers, direct-attached storage and network-attached storage.
The MK1001GRZB delivers performance of 90,000 read and 17,000 write IOPS2 and sustained 510MB/sec read and 230MB/sec write throughput. Combined with a low power requirement of only 6.5 Watts at operation, Toshiba’s eSSD family also delivers an industry-leading power efficiency.
FUNCTIONAL SPECIFICATIONS | |
---|---|
Formatted storage capacity | 100 GByte |
Performance: Random read | 90,000 IOPS |
Performance: Random write | 17,000 IOPS |
Performance: Sequential read | 510 MByte/s |
Performance: Sequential write | 230 MByte/s |
Interface | SAS |
No. of SAS ports | 2 - Full duplex supported |
Data buffer | FIFO ring buffer |
Logical data block length | 512 Byte |
Power consumption: Ready | 1.9 W |
PHYSICAL SPECIFICATIONS | |
Form factor | 2.5 inch |
Mounting screws | M3 x 0.5 metric |
Height | 15 mm |
Width | 69.85 mm |
Depth | 100.45 mm |
Weight (max.) | 160 g |
Ambient temperature (operating) | From 0 °C to +55 °C |
Ambient temperature (non-operating) | From -40 °C to +70 °C |
Max. DE surface temperature (operating) | 60 °C |
Gradient | 20 °C/hour |
Relative humidity (non-condensing, operating) | From 5 % to 95 % |
Relative humidity (non-condensing, non-operating) | From 5 % to 95 % |
Maximum wet bulb | 29 °C |
Vibration (operating) | 100 - 800Hz: 1 G |
Vibration (non-operating) | 100 - 800Hz: 5 G |
Shock (operating) | 0.5 ms: 100 G |
Shock (non-operating) | 0.5 ms: 100 G |
Altitude (operating) | -305 to 4,000 m |
Altitude (non-operating) | -305 to 12,192 m |
RELIABILITY | |
MTBF | 2,000,000 Hours - (24/7 operation with 60°C max. DE surface temperature) |
Unrecoverable errors | 1 per 1016 bits read |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 2 Year Manufacturer
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
2 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
