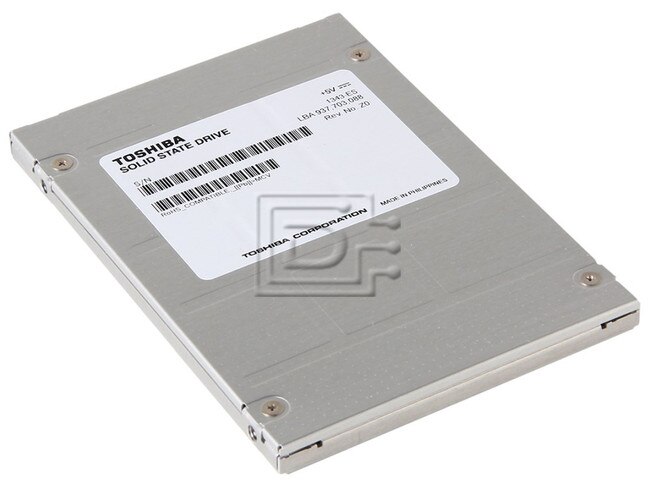

Toshiba PX02SMU040 400GB Self Encrypting 12Gbps SAS 2.5" x 7mm SSD

Toshiba Part #/MPN: PX02SMU040

DiscTech Item #: TOS-PX02SMU040-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 400 Write / 900 Read

Average Seek Time: 0.2

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Toshiba PX02SMU040 400GB 2.5" SAS 12Gbps Self Encrypting eMLC Enterprise Mixed-Use 10-DWPD SSD Solid State Drive - Brand New

Product info

Toshiba’s highest performance 2.5" Enterprise-Class Solid State Drive Architecture optimized for mission critical Tier-0 enterprise server & storage applications; features are highlighted by 6G/12G SAS and select models offering industry standard self-encryption technology.

Product Features

  • Up to 1.6 TB
  • 24 nm enterprise eMLC NAND Flash
  • 12 Gb/s SAS Interface
  • Quadruple Swing-By Code (QSBC) technology
Series Overview
Drive Capacity200 GByte400 GByte800 GByte1600 GByte
Physical Capacity256 GByte512 GByte1024 GByte2048 GByte
NAND Technology24nm eMLC (64Gb/die)
InterfaceSAS 6 Gb/sec / 12 Gb/sec, Dual port
Sector Size512B, 520B, 528B, 4096B, 4104B, 4160B & 4224B
Performance: Random read (4KiB)
  • 120,000 IOPS
Performance: Random write (4 KiB)
  • 25,000 IOPS
Performance: Sequential read (64 KiB)
  • 900 MByte/s
Performance: Sequential write (64 KiB)
  • 400 MByte/s
Form factor2.5 inch
Height7 mm7 mm7 mm15 mm
Width69.85 mm
Depth100.45 mm
Ambient temperature (operating)
  • From 0 °C to +55 °C
Case temperature (operating)
  • From 0 °C to 60 °C
Ambient temperature (non-operating)
  • From -40 °C to +70 °C
MTBF2,000,000 Hours

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
