Toshiba Part #/MPN: PX02SSF010
DiscTech Item #: TOS-PX02SSF010-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 100GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

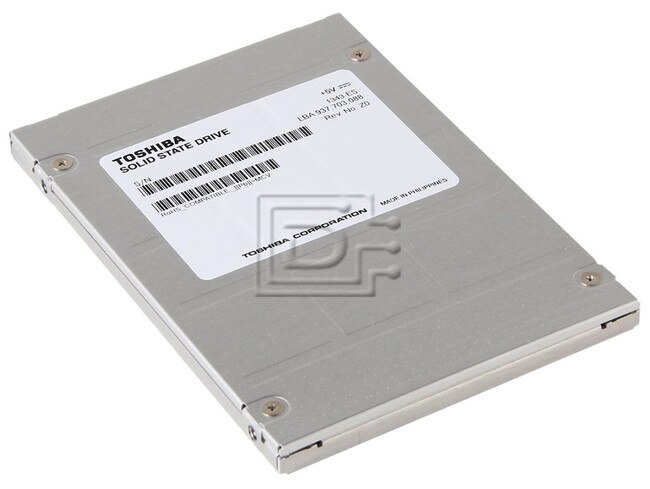

Toshiba PX02SSF010 100GB 2.5in SAS Phoenix M2+ eMLC Enterprise Write-Intensive 30-DWPD SSD - Brand New
Toshiba PX02SSF010 100GB 2.5" Serial Attached SCSI Phoenix M2+ Enterprise Multi-Level Cell Write-Intensive 30-DWPD Solid State Disk Drive - Brand New
Alt MPN: SDFCB03GEA01
High-endurance / write-intensive 2.5” SAS Enterprise SSD optimized for OLTP and other high transaction workloads; featuring 12G SAS and select models offering industry standard self-encrypting technology.
- 24nm eMLC NAND Process
- 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
- Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
- Power Loss Protection
Compatibility:
This drive is compatible with any server that accepts 2.5"x7mm Thin Case SAS drives.
Drive Model | PX02SSF010 |
---|---|
Capacity | 100GB |
Performance | |
Interface Speed (MBps) | 1500 (12Gbps) |
4KiB Random Read (Sustained) | 130,000IOPS |
4Kib Random Write (Sustained) | 42,000IOPS |
4Kib Random 70/30 Read/Write (Sustained) | 80,000IOPS |
64Kib Sequential Read (Sustained) | 1100 MiB/s 910MiB/s |
64Kib Sequential Write (Sustained) | 410 MiB/s |
MTTF (hours) | 2,000,000 |
Power Requirements | |
Voltage | 5V (+/- 5%), 12V (+/- 5%) |
Power Consumption | 2.7 W Typ. |
Energy Consumption Efficiency | 19,500 IOPS/W |
Physical | |
Height (in/mm) | 0.27/7.0 |
Width (in/mm) | 2.75/69.85 |
Depth (in/mm) | 3.95/100.45 |
Weight (lb/g) | 0.15/70 |
Enviromental | |
Temp - Operating | 0° to 55°C |
Temp - Non-Operating | -40° to 70°C |
Vibration Operating | 21.27 m/s² |
Vibration - Non-Operating | 159.74 m/s² |
Shock - Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
Shock - Non-Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
Power Loss Protection | YES |
Reliability | |
Availability (hrs/day x days/wk) | 24x7 |
Endurance - Total Bytes Written | 5.475 PB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDFCB03GEA01
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
