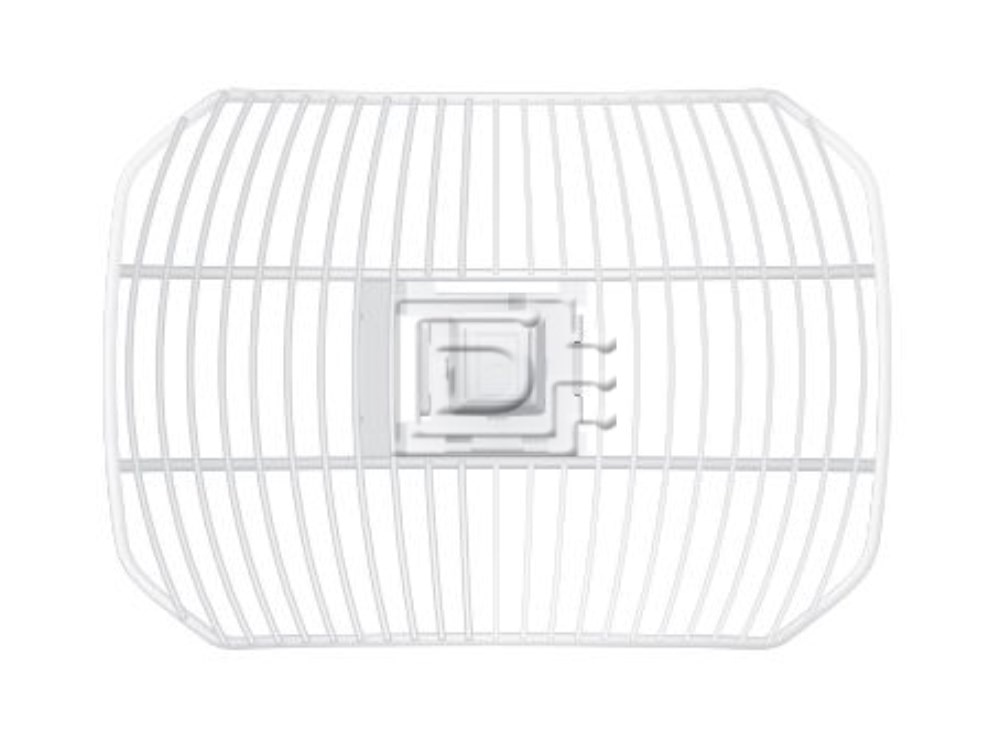

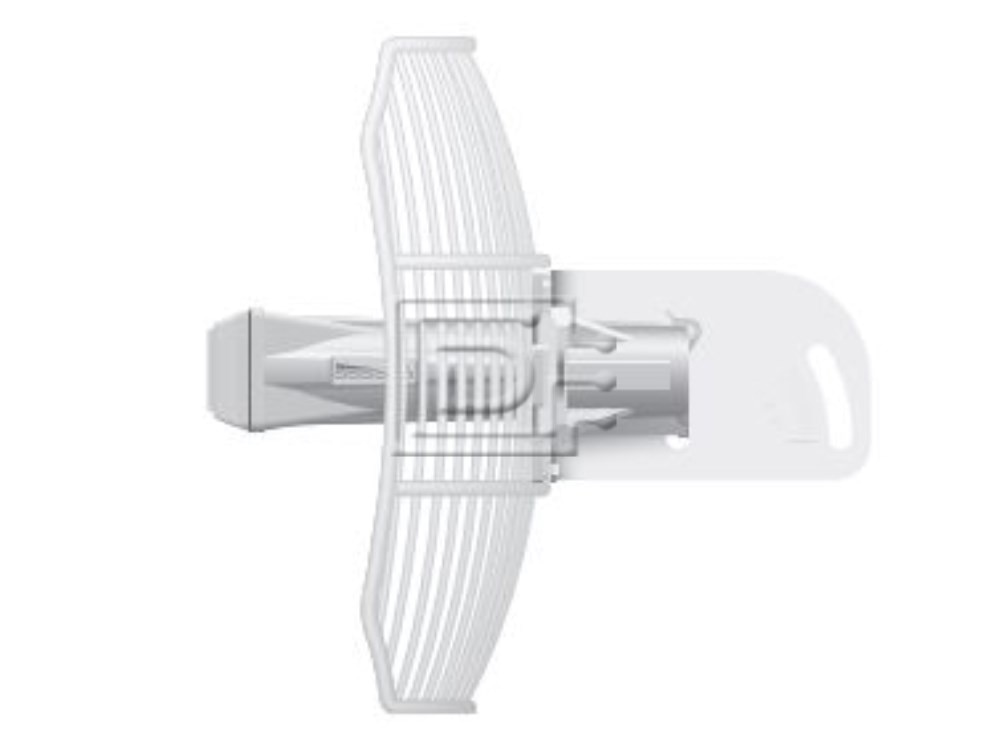

Ubiquiti Networks AG-HP-5G23 airGrid Antenna

Ubiquiti Networks Part #/MPN: AG-HP-5G23

DiscTech Item #: UBI-AG-HP-5G23-BN-1Y


$299.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$299.00

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 1

Wattage/VA: 3W

Voltage: 24V

Ubiquiti Networks AG-HP-5G23 airGrid M5 HP Wireless Broadband Antenna - Brand New

Ubiquiti Networks AG-HP-5G23 airGrid M5 HP 23 dBi Wireless Broadband Antenna - Brand New

airGrid™M
Utilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAX™ (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).

Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.

The low-cost, high-performance, robust “all-in-one” design and light weight of airGridM make it versatile and ideal in several different applications.

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency.

Compared to other systems in its class, the airGridM delivers superior performance in reduced latency, throughput, and scalability.

  • Intelligent QoS Priority is given to voice/video for seamless access.
  • Scalability High capacity and scalability.
  • Long Distance Capable of high-speed, 30+ km links.

Easy, No Tool Assembly
The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required.

You simply snap the feed, antenna, mounting bracket and rear housing together for a secure, solid assembly.

airGrid M5 HP
Model: AG-HP-5G23

  • Worldwide: 5170 – 5875 MHz
  • India: 5825 – 5875 MHz
  • USA: 5725 – 5850 MHz
  • 23 dBi
  • Antenna Size: 370 x 270 mm

SYSTEM INFORMATION
Model NumberAG-HP-5G23
Processor SpecsAtheros MIPS 24KC, 400 MHz
Memory Information32 MB SDRAM, 8 MB Flash
Networking Interface(1) 10/100 Ethernet Port
REGULATORY/COMPLIANCE INFORMATION
Wireless ApprovalsFCC Part 15.247
IC RS210
CE
RoHS ComplianceYes
PHYSICAL/ELECTRICAL ENVIRONMENTAL
Enclosure CharacteristicsOutdoor UV Stabilized Plastic
Mounting KitPole Mounting Kit (Included)
Max Power Consumption3 W
Power Supply24V
0.5A PoE Adapter (Included)
Power MethodPassive Power over Ethernet
(Pairs 4, 5+; 7, 8 Return)
Operating Temperature-30 to 75° C
Operating Humidity5 to 95% Condensing
Shock and VibrationETS1300-019-1.4
EN 302 326 DN2
SPECIFICATIONS
Dimensions370 x 270 x 260 mm
Mount Included)
Weight1452 g
(Mount Included)
Wind Survivability125 mph
Wind Loading8 Ibf @ 125 mph
ANTENNA/RADIO INFORMATION
Operation FrequencyWorldwide: 5170 - 5875 MHz
USA: 5725 - 5850 MHz
Output Power28 dBm
Max VSWR>1.5:1
Gain23 dBi

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 3.5 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
