Brocade BR-1860-1P 16Gb Single Port HBA

BROCADE Part #/MPN: BR-1860-1P

DiscTech Item #: BRC-BR-1860-1P-BN-OE

$175.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:1Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$175.00

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II, Fiber Optic - LC/PC, Ethernet RJ45, PCIe, SFP

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Bays/Ports/Slots: 1

Wattage/VA: 90W

Voltage: 12V

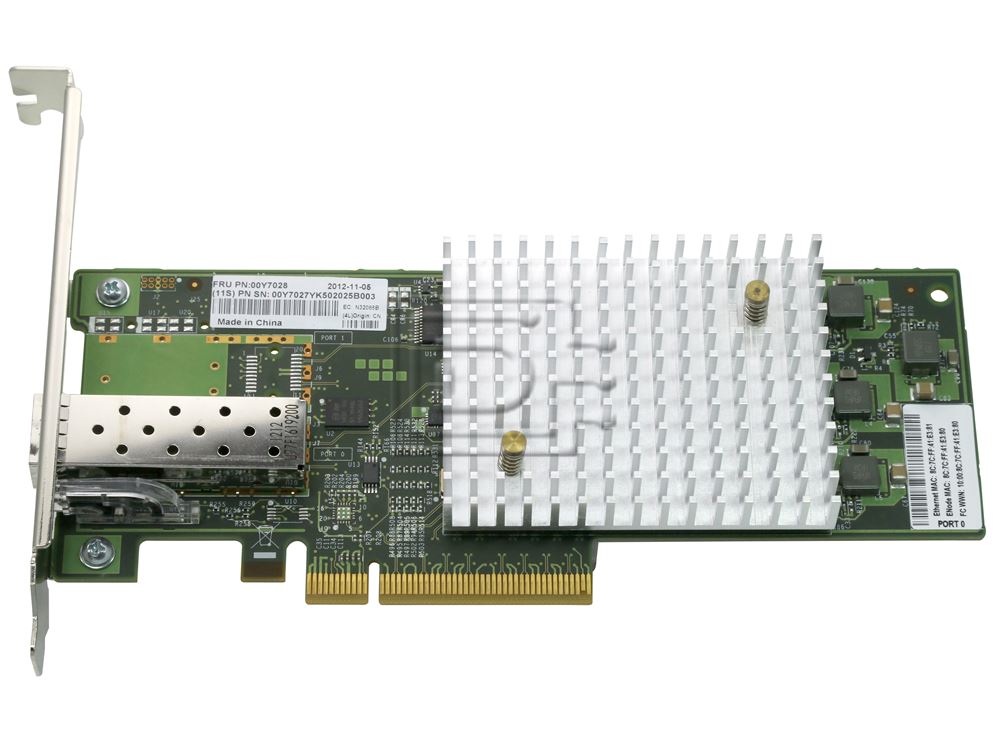

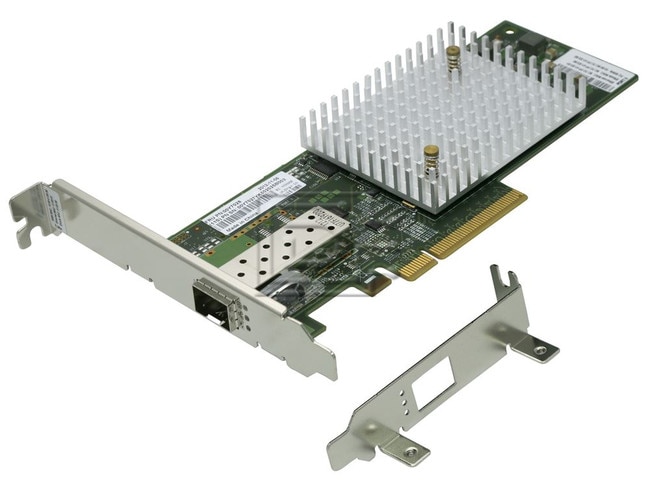

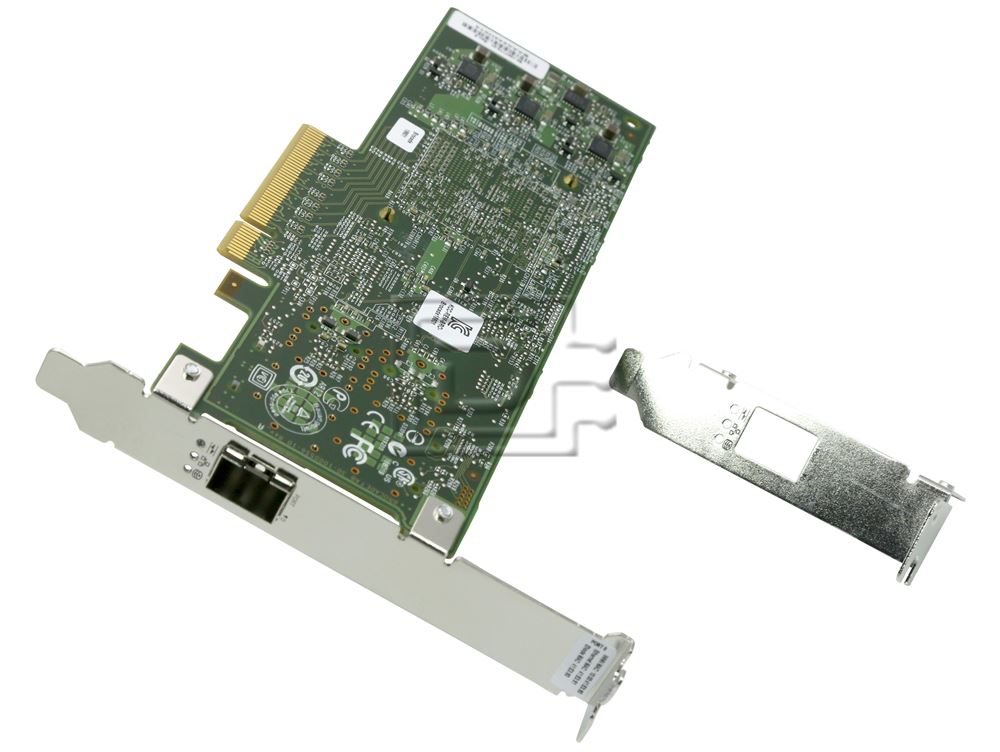

Brocade BR-1860-1P 16Gb Single Port Fibre Channel PCIe HBA w/ one 10 GbE SR SFP+ included - Brand New

Brocade BR-1860-1P 16Gb Single Port Fibre Channel PCIe / PCI Express HBA / Host Buss Adapter with one (1) 10 GbE / Gigabit Ehernet SR SFP+ (plus) included - Brand New

The Brocade 1860 Fabric Adapter is a new class of adapter that meets all the connectivity needs of cloud-enabled data centers while providing unmatched performance, application-aware services, unified management, and reduced cost and complexity. It is the simplest, most flexible, and most powerful server connectivity adapter designed to extend fabric services to Virtual Machines (VMs) and applications in highly demanding virtualized environments.

The BR-1860 stand-up Fabric Adapters are low-profile MD2 form factor PCI Express (PCIe) cards, measuring 16.751 cm by 6.878 cm (6.595 in. by 2.708 in.). One and two-port models are available. Ports support 10 GbE, 8 Gbps FC, or 16 FC small form factor pluggable (SFP+) transceiver optics. With the appropriate optic installed, ports can be configured for HBA, CNA, or NIC operation using the AnyIO feature.

FCC Warning (US Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

  • Reorient or locate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

BROCADE 1860 FABRIC ADAPTER SPECIFICATIONS
Model NumbersBR-1860-1P
Alternate Model Numbers00Y7028
00Y7026
00Y7027
Product DescriptionSingle port, one 10 GbE SR SFP+ included
Fibre Channel Specifications
Data rate
  • 14.025 Gbps (1600 MB/sec)
  • 8.5 Gbps (800 MB/sec)
  • 4.25 Gbps (400 MB/sec)
  • 2.125 Gbps (200 MB/sec) auto-sensing (per port)
  • full duplex
    • PerformanceOver 500,000 IOPS per port

    (1,000,000 IOPS per dual-port adapter)
    Protocols
  • SCSI-FCP
  • FCP-2
  • FCP-3
  • FC-SP


    • (See Documentation) for full list of supported protocols.
    TopologyPoint-to-point (N_Port), switched fabric (N_Port), FC-AL, FC-AL2
    Dynamic Fabric Provisioning (DFP)DFP for Fibre Channel Fabric Assigned Worldwide Name (FA-WWN)
    Diagnostic Port (D_Port) PPort type enabling rapid isolation of optics or cable problems
    Credit recoveryBuffer credit loss detection and automatic recovery. Supported on Brocade 1860 when operating at 16 Gbps link speed.
    Forward Error Correction (FEC)Error recovery mechanism to correct bit errors without referring back to the originator of the frame. Supported on Brocade 1860 when operating at 16 Gbps link speed.
    Distance support
  • 15 meters (m) at 16 Gbps on 62.5/125 μm (OM1) Multi-Mode Fiber (MMF)
  • 35 m at 16 Gbps on 50/125 μm OM2 MMF
  • 100 m at 16 Gbps on 50/125 μm OM3 MMF
  • 125 m at 16 Gbps on 50/125 μm OM4 MMF
  • 10 km at 16 Gbps on 9/125 μm Single-Mode Fiber (SMF)
    • Brocade Server Application Optimization (SAO)
  • Extends Quality of Service (QoS) to VMs and applications
  • N_Port Trunking of 2×16 Gbps links into a single logical 32 Gbps link
    • Boot options
  • Boot from SAN (including DAS point-to-point topology)
  • Fabric-based Boot LUN Discovery
  • Boot-up delay in 1-, 2-, 5-, and 10-minute intervals
    • Ethernet Specifications
    Data rate10.3125 Gbps
    Performance10 Gbps full-duplex line rate
    Distance support
  • 33 meters at 10 Gbps on 62.5/125 μm (OM1) Multi-Mode Fiber (MMF)
  • 82 m at 10 Gbps on 50/125 μm OM2 MMF
  • 300 m at 10 Gbps on 50/125 μm OM3 MMF
  • 10 km at 10 Gbps on 9/125 μm Single-Mode Fiber (SMF)
    • Frame sizesAll standard Ethernet frame sizes supported, including 9600 byte jumbo frames and mini-jumbo frames
    DCB support
  • • 802.1Qaz: Enhanced Transmission Selection (ETS) and Data Center Bridging Exchange (DBCX) protocol
  • 802.1Qbb: Priority-based Flow Control (PFC)
  • iSCSI Type-Length Value (TLV) support
    • Ethernet accelertion
  • IPv4/IPv6, TCP, and UDP checksum offload
  • IPv4 header checksum offload
  • TCP Segmentation Offload (TSO)
  • Receive Side Scaling (RSS)
  • Header Data Split (HDS)
  • VLAN insertion/stripping and filtering
  • Large Receive Offload (LRO)
    • Virtual switching offloadsVirtual Machine Optimized Ports (VMOPs)
  • VMware NetQueue (Tx and Rx)
  • Microsoft VMQ (Rx)
  • Edge Virtual Bridging (EVB) 802.1Qbg-ready hardware
  • Virtual Ethernet Bridging (VEB)
  • Virtual Ethernet Port Aggregator (VEPA)
    • Boot optionsPre-boot eXecution Environment (PXE and gPXE)
    FCoE Specifications
    Protocols
  • FC-SP
  • FC-LS
  • FC-GS
  • FC-FS2
  • FC-FDMI
  • FC-CT
  • FCP
  • FCP-2
  • FCP-3
  • FC-BB-5
    • PerformanceOver 500,000 IOPS per port
    (1,000,000 IOPS per dual-port adapter)
    LoginsSupport for 2048 logins and 4096 exchanges
    Class of serviceClass 3, Class 2 control frames supported
    Boot options
  • Boot from SAN (including DAS point-to-point topology)
  • Fabric-based Boot LUN Discovery
  • Boot-up delay in 1-, 2-, 5-, and 10-minute intervals
    • Host Specifications
    Server platformIntel (IA32, IEM64T), AMD (x86, 64), and Sun (x86, SPARC)
    Server chipsetIntel, nVidia, ServerWorks/Broadcom, AMD/ATI, and SPARC
    Bus interfacePCI Express Gen 2.0 Compatible (x8), with MSI-X and INTx
    Software
    Management
  • Brocade Host Connectivity Manager (HCM)
  • Brocade Configuration Utility (BCU) Command Line Interface (CLI)
  • Brocade Network Advisor
    • Driver-and HCM-supported operating systems (check the Brocade Server Adapters Interoperability Matrix for a complete list)
  • Windows Server 2003/2008/2008 R2/2012 (Hyper-V)
  • RHEL 4/5/6
  • SLES 9/10/11
  • Solaris 10/11 (x86 and SPARC)
  • and VMware ESX 3.5, ESX/ESXi 4.0/4.1/5.0/5.1
    • APIsSNIA-HBA-API 2.0 and FDMI-I
    I/O Virtualization
    Brocade vFLink Up to four Physical Functions (PFs) per port (eight PFs per dual-port adapter) with configurable minimum and maximum bandwidth assignment allocated in 100 Mbps increments
    SR-IOVUp to 255 Virtual Functions (VFs) per adapter
    Physical Specifications
    Supported media
  • Brocade 16 Gbps Fibre Channel LC-style pluggable (SFP+), SWL (850 nm) and LWL 10 km (1310 nm), hot-swappable
  • Brocade 8 Gbps Fibre Channel LC-style pluggable (SFP+), SWL (850 nm) and LWL 10 km (1310 nm), hot-swappable
  • Brocade 10 Gbps Ethernet LC-style pluggable (SFP+), SR (850 nm) and LR 10 km (1310 nm), hot-swappable
  • Brocade 10 Gbps Ethernet LC-style pluggable (SFP+), USR (100 m), hot-swappable
  • Brocade 10 Gbps Ethernet direct-attached active Twinax SFP+ copper cable (1 m, 3 m, 5 m), hot-swappable
  • Non-Brocade 10 Gbps Ethernet directattached active Twinax SFP+ copper cable (1 m, 3 m, 5 m, 7 m, 10 m), hotswappable (requires software driver version 3.0.3 or later)
    • Form factorPCI Express low-profile form factor
    16.77 cm×6.89 cm
    (6.60 in.×2.71 in.)

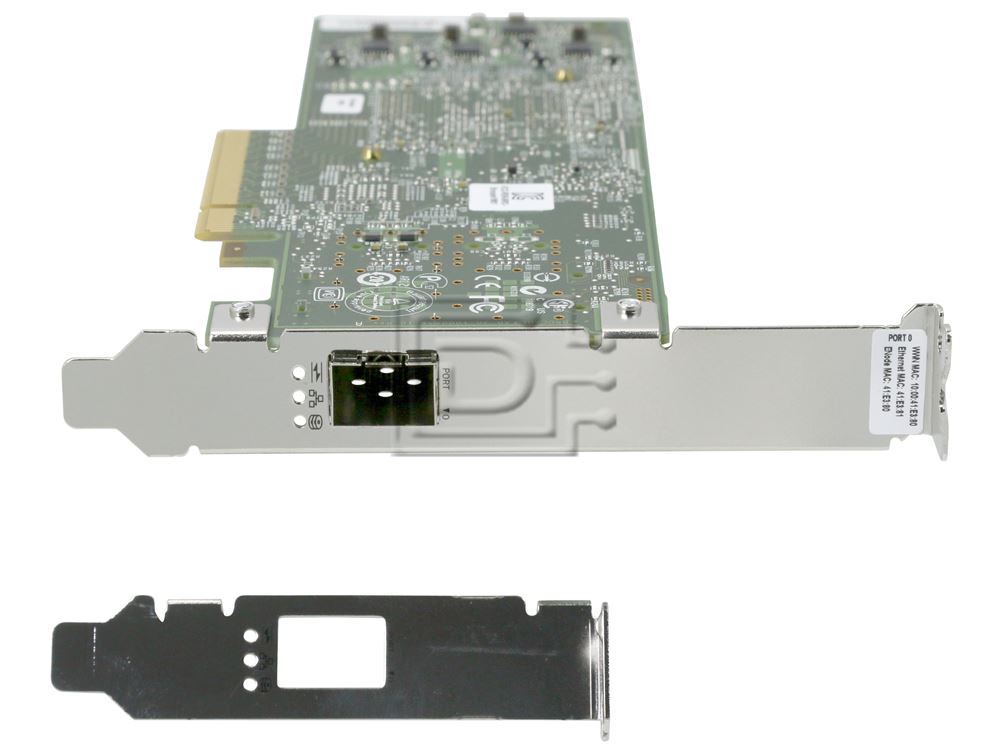

    Bracket size
  • Standard:
    1.84 cm×12.08 cm
    (0.73 in.×4.76 in.)
  • Low profile:
    1.84 cm×8.01 cm
    (0.73 in.×3.15 in.)
    • Environmental and Power Requirements
    Airflow45 LFM
    Temperature
  • Operating temperature
    0ºC to 55ºC
    32ºF to 131ºF (dry bulb)
  • Non-operating temperature
    −43ºC to 73ºC
    −40ºF to 163ºF (dry bulb)
    • Humidity
  • Operating humidity
    5% to 93%
    (relative, non-condensing)
  • Non-operating humidity
    5% to 95%
    (relative, non-condensing)
    • Power dissipation9 W (typical)
    Operating voltage12 V
    Agency Approvals
    United States45 LFM
    Canada45 LFM
    Japan45 LFM
    European Union45 LFM
    Australia, New Zealand45 LFM
    Russia45 LFM
    Korea45 LFM
    TaiwanCNS 13438(95) Class A; BSMI Mark
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 00Y7028 00Y7026 00Y7027

    Weight: 1.5 lb
