Dell Part #/MPN: 540-BBHG
DiscTech Item #: DEL-540-BBHG-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:17Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Ethernet RJ45, PCIe

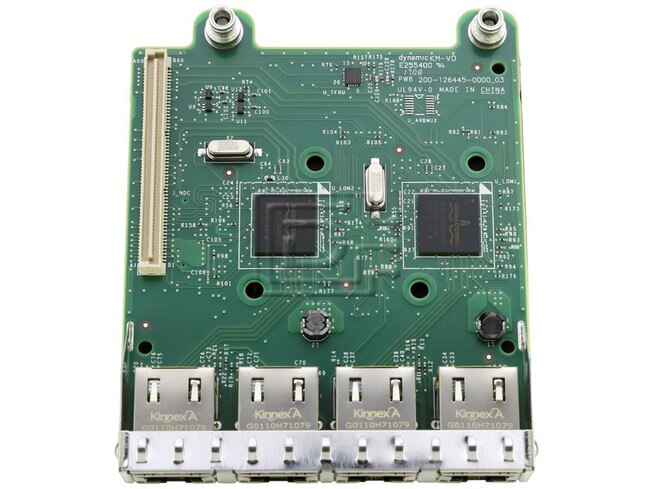

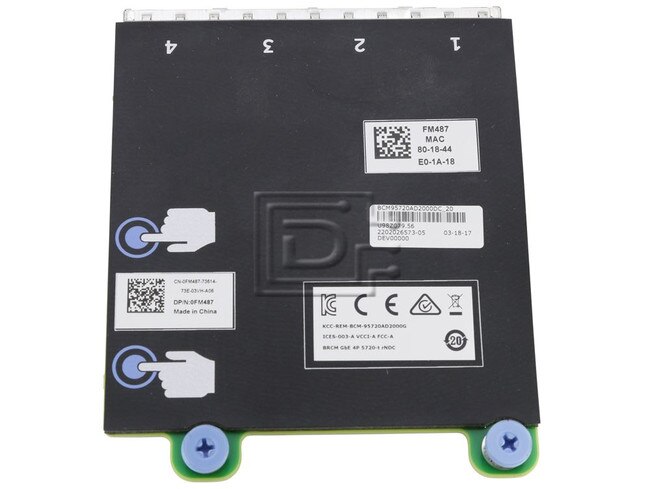

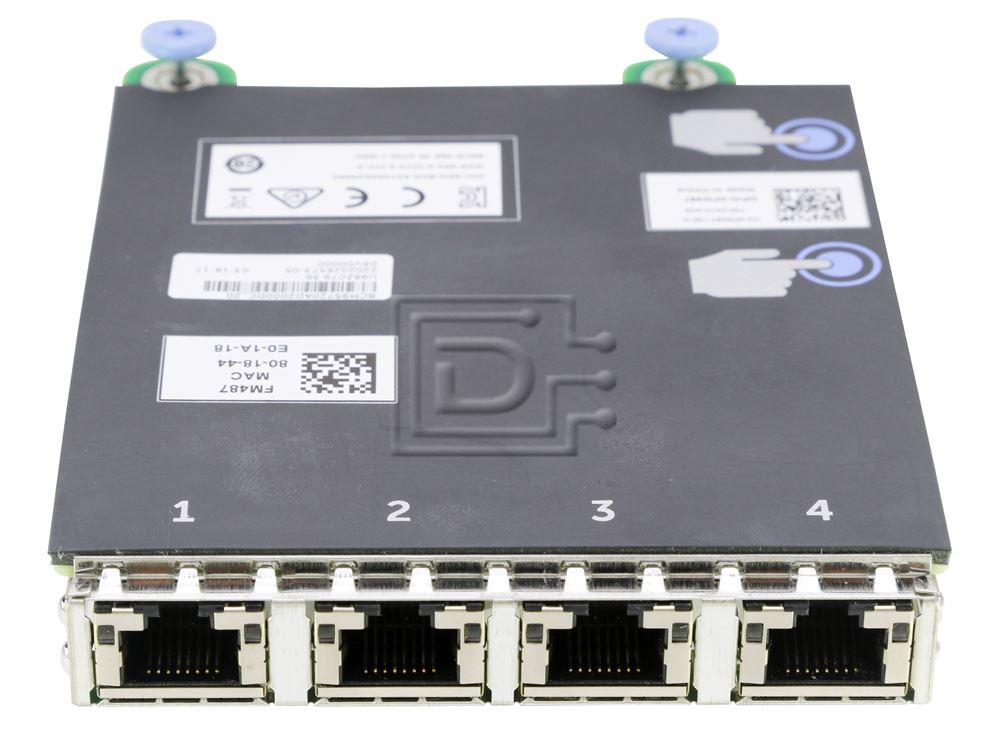

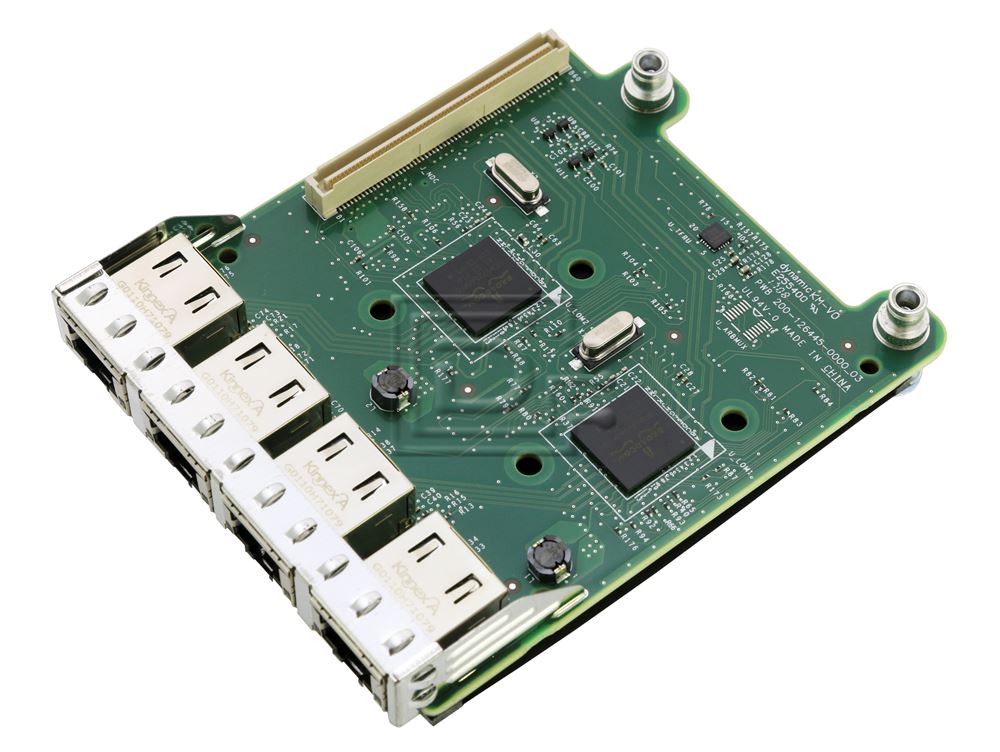

Dell 540-BBHG / FM487 Broadcom 5720 Quad Port Ethernet 1GbE Mezzanine / Daughter Card Network Adapter for PowerEdge - New Pull
Dell now offers Broadcom® 540-BBHG / FM487 Quad-port 1 Gb Ethernet (GbE) RNDC Network Interface Card (NIC) for Dell® PowerEdge® rack and tower servers. It leverages Broadcom's long-standing industry leadership in Ethernet, providing the highest levels of performance, efficiency, and scalability for the enterprise data center
Designed for today's enterprise, the Broadcom 5720-based NIC adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The adapter utilizes Broadcom's quad-port RNDC BCM5720 integrated controller to deliver lower power consumption and Energy Efficient Ethernet™ (EEE), reducing IT operation costs.
Increasing application workloads are placing greater demands on enterprise networks, and the Broadcom 5720-based Quad-port 1GbE NIC is the solution of choice for such environments, providing a reliable, high-performance, energy-efficient 1GbE connectivity solution.
Features
- Quad-port GbE NIC for select Dell PowerEdge rack and tower servers
- Precision Time Protocol (PTP)
- Energy Efficient Ethernet (EEE)
- Full line-rate performance across all ports
- Broad OS and hypervisor support
- iSCSI remote boot support
- Preboot eXecution Environment (PXE) support
- Support for VMware® NetQueue™ and Microsoft® VMQ
- Link aggregation and automatic load-balancing
- Wake-on-LAN support
- MSI and MSI-X support
- IPv4 and v6 offloads
- Stateless offload
- TCP, UDP, and IP checksum
- Large Send Offload (LSO)
- TCP Segmentation Offload (TSO)
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- VLAN support with VLAN tagging
- Jumbo frame support for frames larger than 1500 Bytes
- Broadcom Advanced Control Suite (BACS) management application and integration into Dell's embedded management framework (iDRAC7 and Lifecycle Controller)
Alternate Part Numbers: FM487 0FM487
Compatibility:
This Dell Broadcom network adapter is compatible with Dell / EMC PowerEdge servers ...
- PowerEdge R620
- PowerEdge R630
- PowerEdge R640
- PowerEdge R720
- PowerEdge R720XD
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R740
- PowerEdge R740XD
- PowerEdge R820
- PowerEdgeR830
- PowerEdge R920
- PowerEdge R930
- PowerEdge R940
- PowerEdgeR7425
- PowerVault DL4000 / DR4100 DISK BACKUP APPLIANCE
| General - Dell 540-BBHG / FM487 |
| Mezzanine Daughter Board |
| 4 x 1GbE RJ-45 Ports |
| For Select Dell Rack Servers |
| Bus type x1 PCI Express 2.0 (5 GT/s) |
| Data transfer rate per port 10/100/1000 Mbps |
| MAC controller BCM5720 |
| Connector 4x RJ-45 |
| OS Support |
| Microsoft Windows Server® 2008, 2008 R2, all editions |
| Linux Red Hat® Enterprise Linux (RHEL) 5.7/5.8, 6.1/6.2 |
| Novell® SUSE® Enterprise Server (SLES) 10 SP4, 11 SP2 |
| VMware vSphere™ 4.1 and 5.0 |
| Citrix XenServer 6.0 |
| Management |
| Broadcom BACS management application, WMI, and |
| Broadcom Management API (BMAPI) |
| Dell Embedded management framework (iDRAC and |
| Lifecycle Controller) |
| Environmental Requirements |
| Operating temperature 32°F to 131°F (0°C to 55°C) |
| Storage temperature –40°F to 149°F (–40°C to 65°C) |
| Relative humidity 5% to 95% noncondensing |
| Hardware |
| Certifications RoHS, FCC A, UL, CE, VCCI, BSMI, CTICK, KC |
| Advanced Features and Standards |
| PCI Express base specification 2.0 |
| PCI bus power management interface (rev 1.2) |
| Advanced Error Reporting (AER) |
| TCP segmentation/large send offload |
| PCI hot plug/hot swap |
| ACPI v2.0 |
| SMBus 2.0 |
| IEEE 1588—Precision Time Protocol (PTP)-ready |
| IEEE 802.1q—Virtual LAN (VLAN) support—VLAN tagging support |
| IEEE 802.3x—Flow control |
| IEEE 802.3z (Clause 30)—Statistics for SNMP MIB II, Ethernet-like and Ethernet MIB |
| IEEE 802.3az—Energy Efficient Ethernet |
| IPv4 and IPv6 offload |
| Teaming support |
| MSI-X supports independent queues |
Alternate MPNs: 0FM487 FM487 0R1XFC R1XFC
Weight: 2 lb
