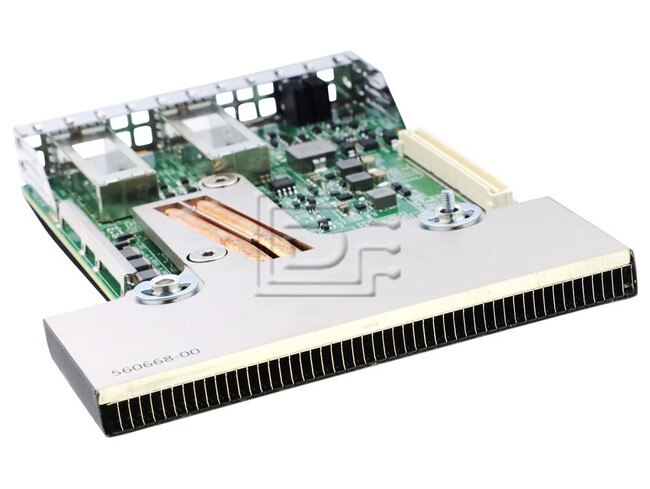

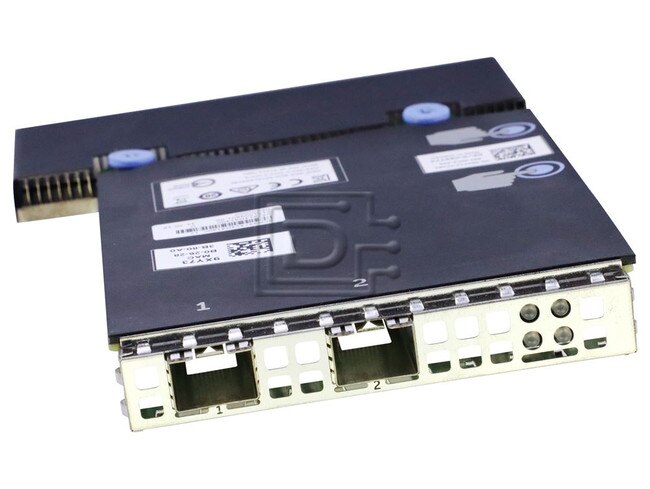

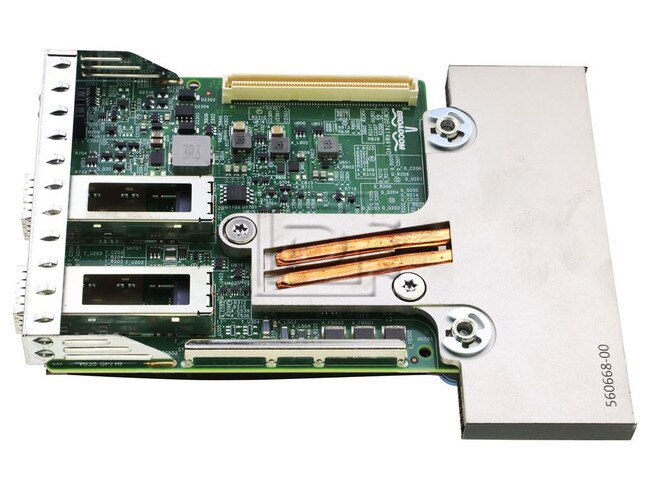

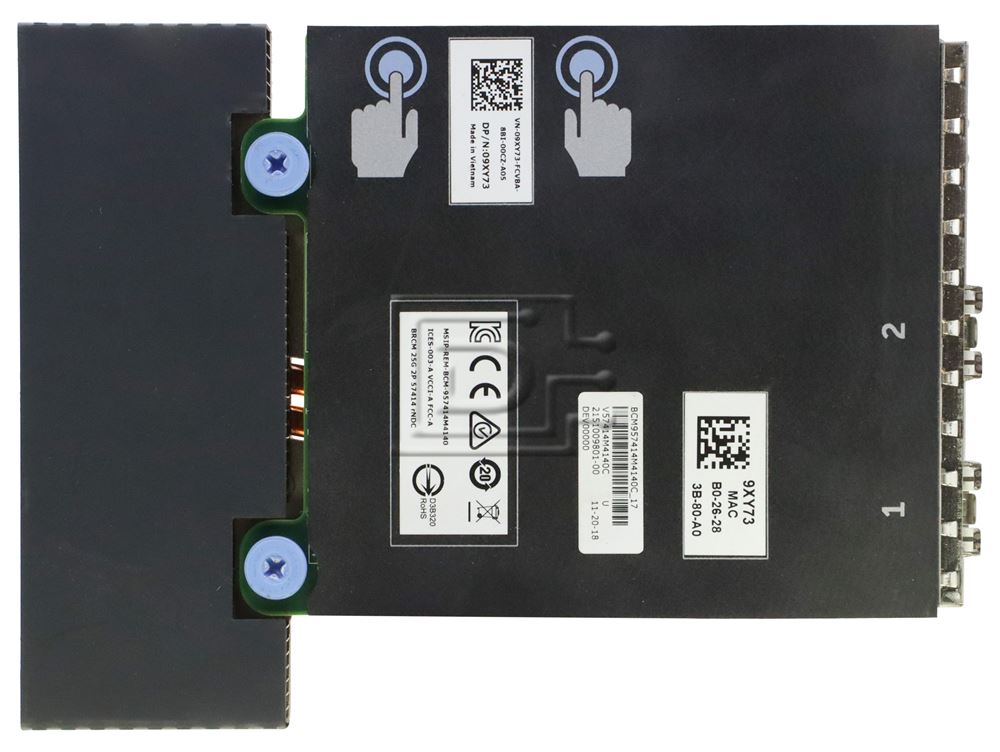

Dell 540-BBUS / JJ4YH / 9XY73 Broadcom 57414 Dual Port 10/25GbE SFP28 Mezzanine / Daughter Card Network Adapter

Dell Part #/MPN: 540-BBUS

DiscTech Item #: DEL-540-BBUS-NP-OE

$449.99
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:4Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$449.99

Interface Types: Ethernet RJ45, PCIe

Compatible Systems: Dell 14th Gen. R640/R740

Dell 540-BBUS / JJ4YH / 9XY73 Broadcom 57414 Dual Port 10/25GbE SFP28 Mezzanine / Daughter Card Network Adapter for PowerEdge - New Pull

Dell now offers Broadcom® 540-BBUS / JJ4YH / 9XY73 / 57414 Dual-Port 10/25GbE SFP28 RNDC Network Interface Card (NIC) for Select Dell® PowerEdge® rack servers and PowerVault® storage arrays. It leverages Broadcom's long-standing industry leadership in Optical Fiber, providing the highest levels of performance, efficiency, and scalability for the enterprise data center

Designed for today's enterprise, the Broadcom 57414-based NIC adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The adapter utilizes Broadcom's dual-port RNDC BCM57414 integrated controller to deliver lower power consumption and Energy Efficient Ethernet™ (EEE), reducing IT operation costs.

Increasing application workloads are placing greater demands on enterprise networks, and the Broadcom 57414-based Dual-port 10/25GbE NIC is the solution of choice for such environments, providing a reliable, high-performance, energy-efficient 10/25GbE connectivity solution.

Features

  • Dual-port GbE NIC for select Dell PowerEdge rack servers and PowerVault storage arrays
  • Dual-port pluggable media interface, which may be equipped with 25G SFP28 or 10G SFP+ optical transceiver or with copper direct-attach cable
  • Fully compliant with the SFF-8402 standard
  • Features a compact space-saving design
  • Ideal for high-performance network applications
  • SR-IOV with up to 128 VFs
  • Function Level Reset (FLR) support
  • TruFlow™ flow processing engine
  • Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap
  • vSwitch acceleration
  • Tunnel-aware stateless offloads
  • DCB support: PFC, ETS, QCN, DCBx
  • RDMA over converged Ethernet (RoCE)
  • SMBus 2.0
  • MCTP over SMBus
  • Jumbo frames up to 9 KB
  • Advanced Congestion Avoidance
  • Multiqueue, NetQueue, and VMQ
  • IPv4 and IPv6 offloads
  • TCP, UDP, and IP checksum offloads
  • Large Send Offload (LSO)
  • Large Receive Offload (LRO)
  • TCP Segmentation Offload (TSO)
  • Receive-side Scaling (RSS)
  • Transmit-side Scaling (TSS)
  • VLAN insertion/removal
  • Interrupt coalescing
  • Network boot-PXE, UEFI
  • iSCSI boot
  • MSI and MSI-X
  • Broadcom Advanced Control Suite (BACS) management application and integration into Dell's embedded management framework (iDRAC7 and Lifecycle Controller)

Applications

Dual-Port 25 Gb/s Ethernet Network Interface Card for Data Centers or Cloud Computing.

Alternate Part Numbers: JJ4YH 0JJ4YH 9XY73 09XY73

Compatibility:

This Dell Broadcom network adapter is compatible with the following Dell / EMC PowerEdge servers and PowerVault storage arrays ...

  • PowerEdge R640
  • PowerEdge R740
  • PowerEdge R740XD
  • PowerEdge R7425
  • PowerEdge R840
  • PowerEdge R940
  • PowerEdge R940xa
  • PowerVault NX3240
  • PowerVault NX3340

General - Dell 540-BBUS / JJ4YH / 9XY73
Mezzanine Daughter Board
2 x 25Gb Ethernet - SFP28 Ports
For Select Dell Rack Servers and PowerVault Storage Arrays
rNDC
Data transfer rate per port 2500 Mbps
MAC controller BCM57414
Connector 2x 25 Gigabit SFP28
Advanced Features and Standards
Fully compliant with the SFF-8402 standard
SR-IOV with up to 128 VFs
Function Level Reset (FLR) support
TruFlow™ flow processing engine
Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap
vSwitch acceleration
Tunnel-aware stateless offloads
DCB support: PFC, ETS, QCN, DCBx
RDMA over converged Ethernet (RoCE)
SMBus 2.0
MCTP over SMBus
PCIe-based UART and KCS
Jumbo frames up to 9 KB
Advanced Congestion Avoidance
Multiqueue, NetQueue, and VMQ
IPv4 and IPv6 offloads
TCP, UDP, and IP checksum offloads
Large Send Offload (LSO)
Large Receive Offload (LRO)
TCP Segmentation Offload (TSO)
Receive-side Scaling (RSS)
Transmit-side Scaling (TSS)
VLAN insertion/removal
Interrupt coalescing
Network boot-PXE, UEFI
iSCSI boot
MSI and MSI-X

Alternate MPNs: JJ4YH 0JJ4YH 9XY73 09XY73

Weight: 2 lb

Warranty: 1 Year DiscTech
