INTEL Part #/MPN: SSDSC2BB120G6R
DiscTech Item #: INT-SSDSC2BB120G6R-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 120GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 475/135
Average Seek Time: 55 µs/66 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC

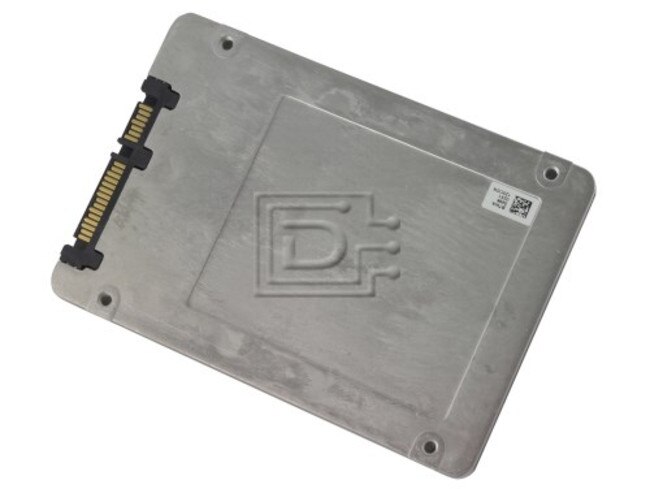

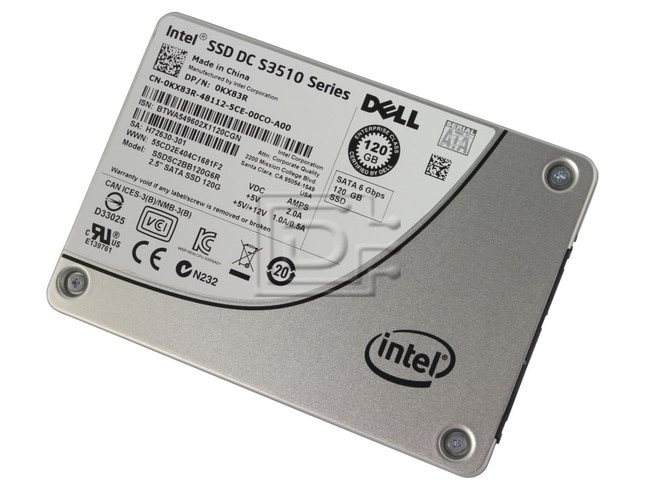

Dell KX83R / Intel DC S3510 SSDSC2BB120G6R 120GB 2.5" 6Gbps MLC SED SATA SSD - Brand New OEM
Dell KX83R / Intel DC S3510 SSDSC2BB120G6R 120GB 2.5" 6Gbps MLC SED SATA SSD - Brand New OEM
Alt Part Number KX83R, 0KX83R
Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.
The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.
Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
Compatibility:
This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.
| Specification | |
|---|---|
| Intel Model Number | SSDSC2BB120G6R |
| Dell Model Number | KX83R |
| PACKAGE SPECIFICATIONS | |
| Capacity | 120GB |
| Form Factor | 2.5" 7mm |
| Interface | SATA 3.0 6Gb/s |
| Lithography Type | 16 nm |
| Advanced Technologies | |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | No |
| Temperature Monitoring and Logging | Yes |
| End-toEnd Protection | Yes |
| Intel Smart Response Technology | No |
| Intel Rapid Start Technology | No |
| Essentials | |
| Status | Launched |
| Launch Date | Q2'15 |
| Sequential Read | 475 MB/s |
| Sequential Write | 135 MB/s |
| Random Read (100% Span) | 68000 IOPS |
| Random Write (100% Span) | 5300 IOPS |
| Latency - Read | 55 µs |
| Latency - Write | 66 µs |
| Power - Active | 2.14 W |
| Power - Idle | 600 mW |
| Vibration - Operating | 1000G/0.5 msec |
| Vibration - Non-Operating | 1000G/0.5 msec |
| Shock (Operating and Non-Operating) | 1000G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Weight | 88 grams ± 2 grams |
| Mean Time Between Failures (MTBF) | 70 TBW |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
| Recommended Customer Price | N/A |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: KX83R 0KX83R
Weight: 0.5 lb
