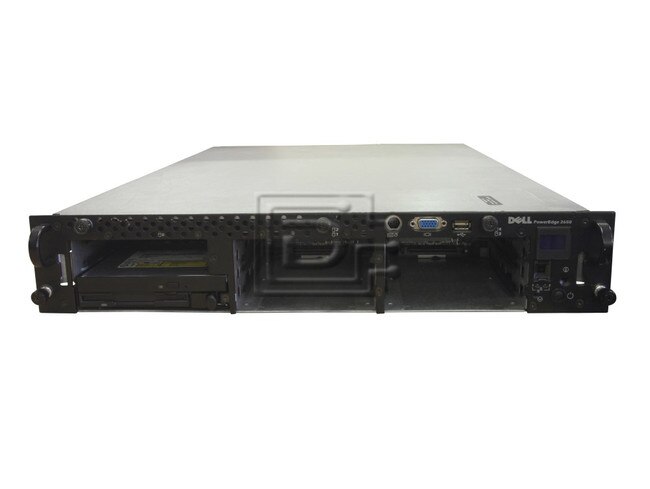

Dell PowerEdge 2650 Server

(0) No Reviews Yet

Dell Part #/MPN: PE2650

DiscTech Item #: DEL-PE2650-UP-OE


Interface Types: SCSI 80pin SCA-2 Hot-Swap, Ethernet RJ45, PCI, PCI-X, VGA, Serial RS-232 DB9, PS2, Riser

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

On-Board Cache: 256MB

Bays/Ports/Slots: 5

U Height: 2U


Microprocessor type

up to two Intel® Xeon™ microprocessors with a minimum internal operating frequency of at least 1.8 GHz

Front-side bus (external) speed

400 MHz

Internal cache

512 KB cache

Math coprocessor

internal to microprocessor

Expansion Bus

Bus type


Expansion slots

3 dedicated PCI/PCI-X (full-length, 64-bit, 33/66/100/133 MHz; 2 slots on bus 1, and 1 slot on bus 2



72-bit ECC PC-1600 DDR SDRAM DIMMs, with 2-way interleaving

Memory module sockets

six 72-bit wide 184-pin DIMM sockets

Memory module capacities

128-, 256-, 512 MB, or 1-GB registered SDRAM DIMMs, rated for 200-MHz DDR operation

Minimum RAM

256 MB

Maximum RAM

6 GB


Diskette drive

3.5-inch, 1.44-MB diskette drive

SCSI hard drives

up to five 1-inch, internal Ultra3 SCSI

CD or DVD drive

one IDE CD or DVD drive

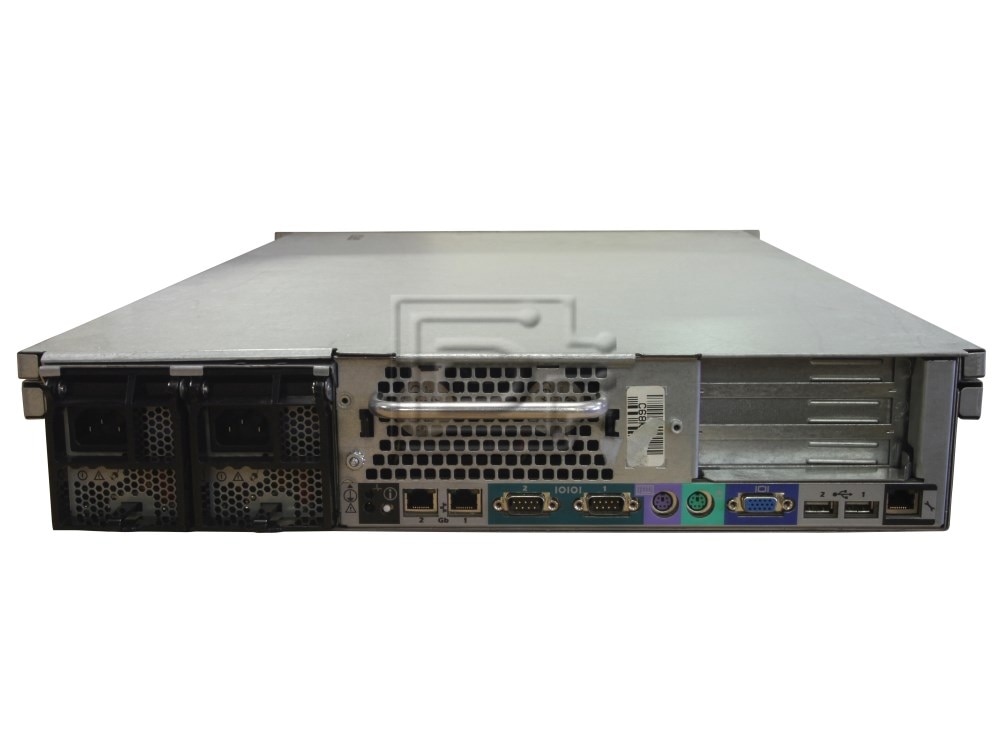

Ports and Connectors

Externally accessible:



two 9-pin connectors


two 4-pin connectors


two RJ45 connectors for integrated 10/100/1000 NICs

Embedded remote access Ethernet

one RJ45 connector for integrated remote access card (100 Mbit Ethernet controller) used for remote system administration


one 15-pin connector

PS/2-style keyboard

6-pin mini-DIN connector

PS/2-compatible mouse

6-pin mini-DIN connector




one 15-pin connector


one 4-pin connector

PS/2-style keyboard/mouse

6-pin mini-DIN, keyboard default (mouse optional with combination Y adapter)


Video type

ATI Rage XL PCI video controller; VGA connector

Video memory

8 MB


Power supply:



500 W (AC)


100–240 VAC, 50/60 Hz, 5.0 A

200–240 VAC, 50/60 Hz, 5.0 A

Heat dissipation

180 W or 614.3 BTU/hr

Maximum inrush current

under typical line conditions and over the entire system ambient operating range, the inrush current may reach 55 A per power supply for 10ms or less

System battery

CR2032 3.0-V lithium coin cell

Click here to view the manufacturer's item description/brochure

Weight: 50 lb

Warranty: 1 Month DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Month DiscTech Warranty
