Toshiba Part #/MPN: KPM5XVUG960G
DiscTech Item #: KIO-KPM5XVUG960G-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 839/650
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

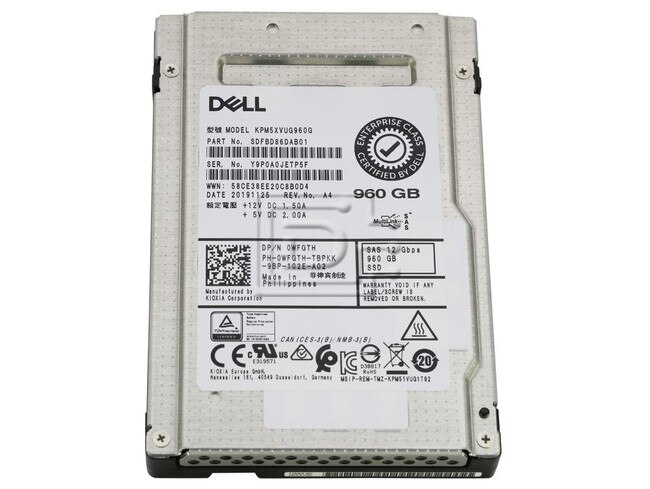

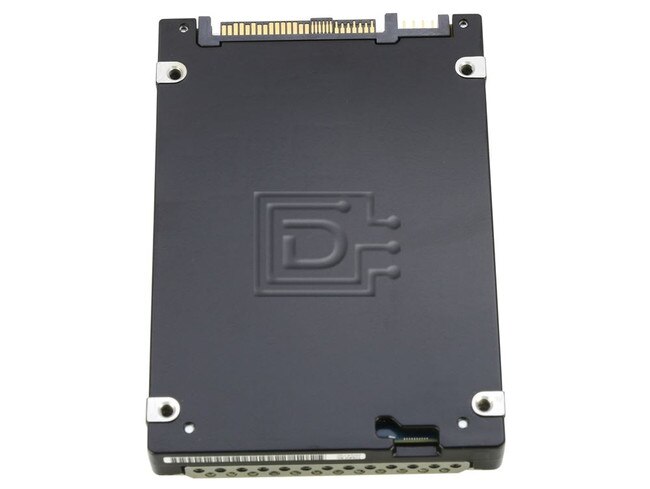

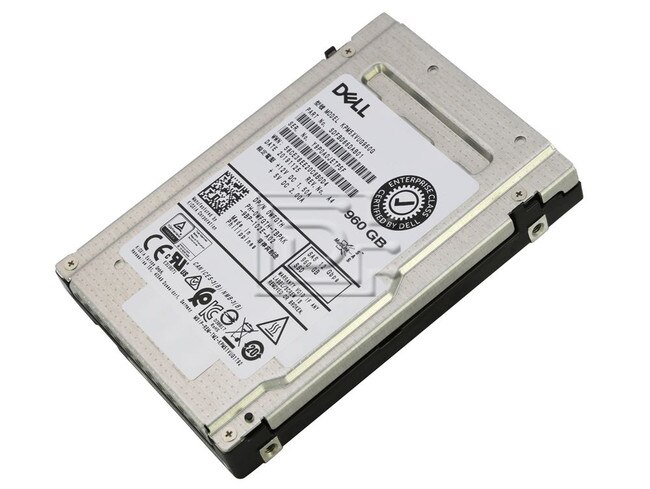

Dell WFGTH / KIOXIA KPM5XVUG960G SDFBD86DAB01 960GB 2.5" 12Gbps Enterprise SAS Mixed Use SSD - Brand New OEM
Dell WFGTH / KIOXIA PM5-V Series KPM5XVUG960G SDFBD86DAB01 960GB 2.5" 12Gbps Enterprise SAS Mixed Use Solid State Drive
DP/N: WFGTH 0WFGTH SDFBD86DAB01
Enterprise Mixed Use SSD
RM5 Series Value SAS Solid State Drive RM5 Series 12Gb/s value SAS SSDs are priced to replace SATA in servers, delivering improved performance and reliability, with no change to the server infrastructure.
Dell EMC + KIOXIA = Better Together
- Together: 20+ years of storage collaboration*
- SSDs shipping across all of Dell EMC’s major server and storage product lines
- All KIOXIA SSDs are VMware vSAN certified for your virtualized data center environments
- Sole vendor to offer value SAS (RM5 Series) and data center NVMe (CD5 Series) SSDs, similarly priced to SATA
Compatibility:
This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.
| Toshiba Enterprise Mixed Use SSD | |
|---|---|
| Model Number | KPM5XVUG960G |
| Capacity | 960 GB |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Sustained 128KiB Sequential Read | 1835 MiB/s |
| Sustained 128KiB Sequential Write | 1258 MiB/s |
| Sustained 4KiB Random Read | 290,000 IOPS |
| Sustained 4KiB Random Write | 90,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WFGTH 0WFGTH SDFBD86DAB01
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
