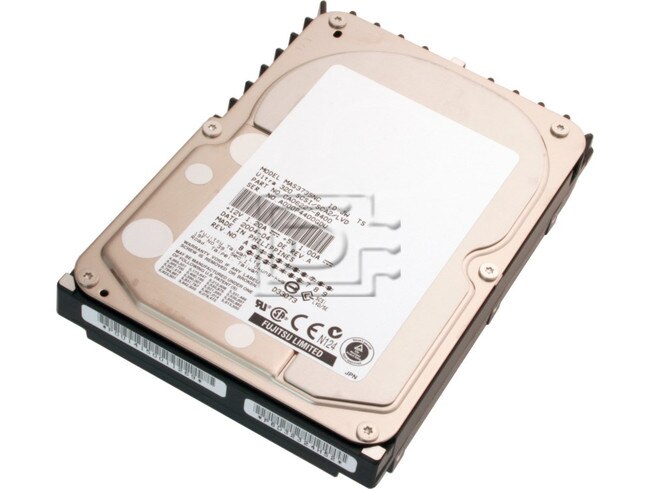

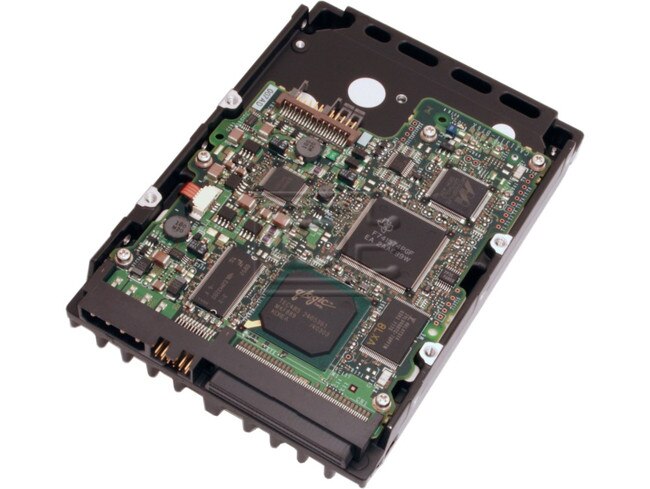

Fujitsu MAS3735NC MAS SCSI Hard Drive

(0) No Reviews Yet

FUJITSU Part #/MPN: MAS3735NC

DiscTech Item #: FUJ-MAS3735NC-BN-3Y


$189.95
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$189.95

Enterprise Grade

Capacity: 73GB

Speed: 15,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 114

Average Seek Time: 3.3 / 3.8

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

Fujitsu MAS 73GB 15K U320 80pin SCA-2 SCSI Hard Drive MAS3735NC Brand New

The MAS series of hard drives combine numerous, innovative Fujitsu technologies to deliver industry-leading performance and reliability. Our seventh-generation Giant Magneto-Resistive (GMR) head technology increases areal density, so MAS drives can achieve capacities up to 73.5 GB using fewer platters. A super-fast 15,000-RPM rotational speed lowers average seek time to 3.3 ms, single-track seek time to 0.3 ms, and average rotational latency to 2.0 ms. To improve response time in high-load, multitasking applications, the MAS series features an 8-MB, 32-bit-wide data cache and a dual-processor architecture. Acceleration Feed Forward, a method of canceling out rotational vibrations and shocks, also helps improve drive performance. And to make MAS drives quieter, we’ve incorporated fluid dynamic bearings (FDBs).


Compatibility:

The SCA-2 80-pin version of these low-profile 1" of these SCSI hard drives are compatible with all of the following systems (this list is not all inclusive):

Dell® PowerEdge servers 800, 1500, 1550, 1600, 1600SC, 1650, 1750, 1800, 1850, 2300,2350, 2400, 2450, 2500, 2500SC, 2550, 2600, 2650, 2800, 2850, 3250, 4300, 4350, 4400, 4600, 6300, 6350, 6400, 6450, 6600, 6650, 6800, 6850, 7150 & 8450 Series Servers and Dell Powervault® 200S, 201S, 210S, 211S, 220S, 221S, 220F, 221F, 224F, 650F, 660F, 750N & 755N Arrays & PowerApp 120.

HP / Compaq Proliant® server CL-1850, DL-320, DL-380, DL-580, DL-590/64, DL-760, ML-350, ML-330, ML-350, ML-370, ML-380, ML-530, ML-570, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. Additionally 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays

IBM xServer eSeries & Netfinity Servers x220, x230, x225, x232, x235, x240, x250, x300, x320, x330, x335, x340, x345, x360, 3500, 4500R, 5100, 5600, 6000R, 7100, 7600 & 8500. Also compatible with x206, x225, x226, x235, x236, x335, x336, x345, x346, x365, x385, x400, x455.

DescriptionMAS3735MAS3367MAS3184
Functional Specifications
Capacity (formatted) 73.5 GB 36.7 GB 18.4 GB
Disks/heads 4/8 2/4 1/2
Disk media diameter 2.75 in.
Bytes/sector 512
Cylinders 27,100
Logical blocks 143,552,13671,819,49635,890,512
Recording density 580,000 BPI
Track density 60,000 TPI
Buffer size 8192 KB
Interfaces Ultra320 SCSI (68 or 80 pin) and 2 GB/s Fibre ChannelUltra320 SCSI (68 or 80 pin)
Seek time Track to track Read: 0.3 ms (typ) / Write: 0.5 ms (typ)
AverageRead: 3.3 ms (typ) / Write: 3.8 ms (typ)
Full stroke Read: 8.0 ms (typ) / Write: 9.0 ms (typ)
Data transfer rate To/from media 93.1 to 118.2 MB/s
To/from host Ultra320 SCSI - 320 MB/s (max.) / Fibre Channel - 212.5 Mb/s (max.)Ultra320 SCSI - 320 MB/s (max.)
Start time 30 s (typ)
Stop time 30 s (typ)
Rotational speed (RPM) 15,000
Average latency 2.00 ms
Power consumption, idle SCSI 11.3 W8.5 W7.5 W
FC 13.0 W10.2 WN/A
Spindle motor FDB (Fluid Dynamic Bearings)
Physical Specifications
Power requirements Idle (ready) 11.3 W (typ) 8.5 W (typ) 7.5 W (typ)
Spin-up 12V @ 2.5 A

5V @ 0.85 A
Dimensions Height 25.4 mm (1.0 in.)
Width 101.6 mm (4.0 in.)
Depth 146.0 mm (5.75 in.)
Weight 0.80 kg (1.76 lb.)
Drive temperature Operating 5°C to 55°C
Non-operating -40°C to 70°C
Gradient15°C/H max
Relative humidity Operating 5% to 95% (non-condensing)
Non-operating 5% to 95% (non-condensing, with packaging)
Vibration Operating 1.0 G (20 to 300 Hz)
Non-operating 5.0 G (20 to 300 Hz)
Shock Operating 65 G (half-sine pulse, 2 ms duration)

Rotational - 25,000 rad/sec2. @ 2 ms.
Non-operating 250 G (half-sine pulse, 2 ms duration)
Altitude Operating -984 to 9,843 ft.
Non-operating -984 to 39,370 ft.
Acoustics   Idle< 3.6 bels
Reliability Specifications
MTBF 1,200,000 hours
MTTR No field repairable parts, return to factory for repair.
Start/stop cycles 20,000 cycles
Error Rate Seek error 10 per 108 seeks
Non-recoverable read error 1 per 1015 bits read

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 3 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

3 Year DiscTech Warranty
