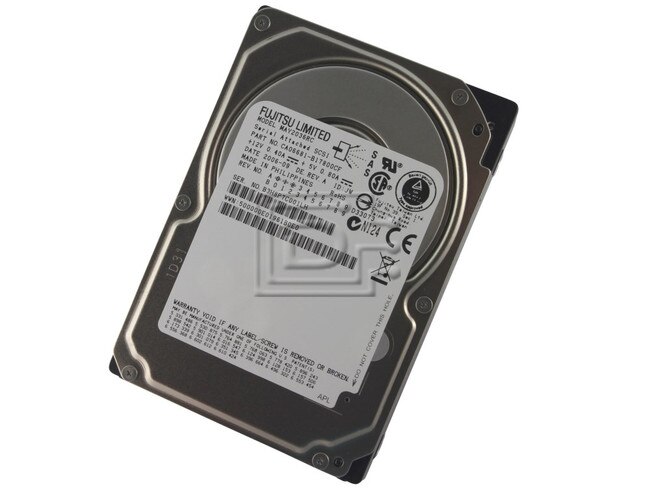

Fujitsu MAY2036RC SAS Hard Disk Drive

(0) No Reviews Yet

FUJITSU Part #/MPN: MAY2036RC

DiscTech Item #: FUJ-MAY2036RC-BN-OE


$45.00
$45.00

Enterprise Grade

Capacity: 36GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 4 / 4.5

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 16MB

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity36.7 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)4.0/4.5 ms. typ. (read/write)
Seek time (full track)8.0/9.0 ms. typ. (read/write)
Average latency time2.99 ms.
Rotational speed10,025 RPM
InterfaceSAS (3Gbps)
Data Buffer Size16 MB
Recording code32/34 MEEPRML
Head positioning methodROTARY VCM
Spindle start time15 seconds typical
Spindle stop time15 seconds typical
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)4.5 W typ.
Form Factor2.5-inch x 15mm high
Mounting screws#4 x M3
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)55 max deg. C
Gradient15 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Altitude (operating)3,000 metres
Altitude (non-operating)12,000 metres
Acoustic noise (at 1 metre idle)>/=2.9 (ready) bels
RELIABILITY
MTBF (Mean Time Between Failures)1,400,000 power on hours
Component life (years)

Design life used to calculate MTBF. NOT Warranty
5 years
Unrecoverable errors1 per 10^15 bits read
Seek errors10 per 10^8 seeks

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
