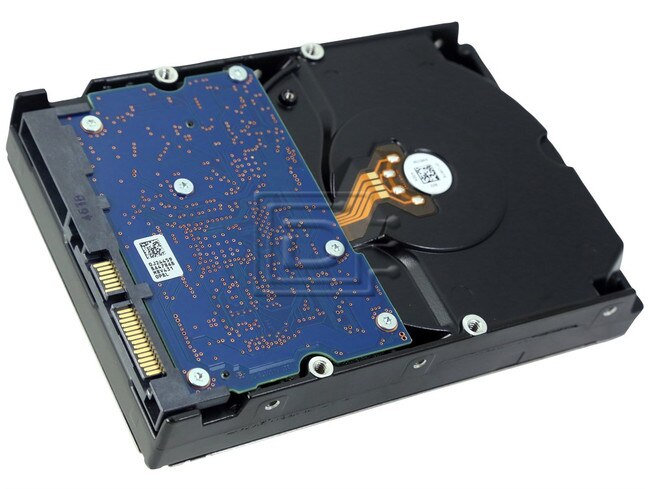

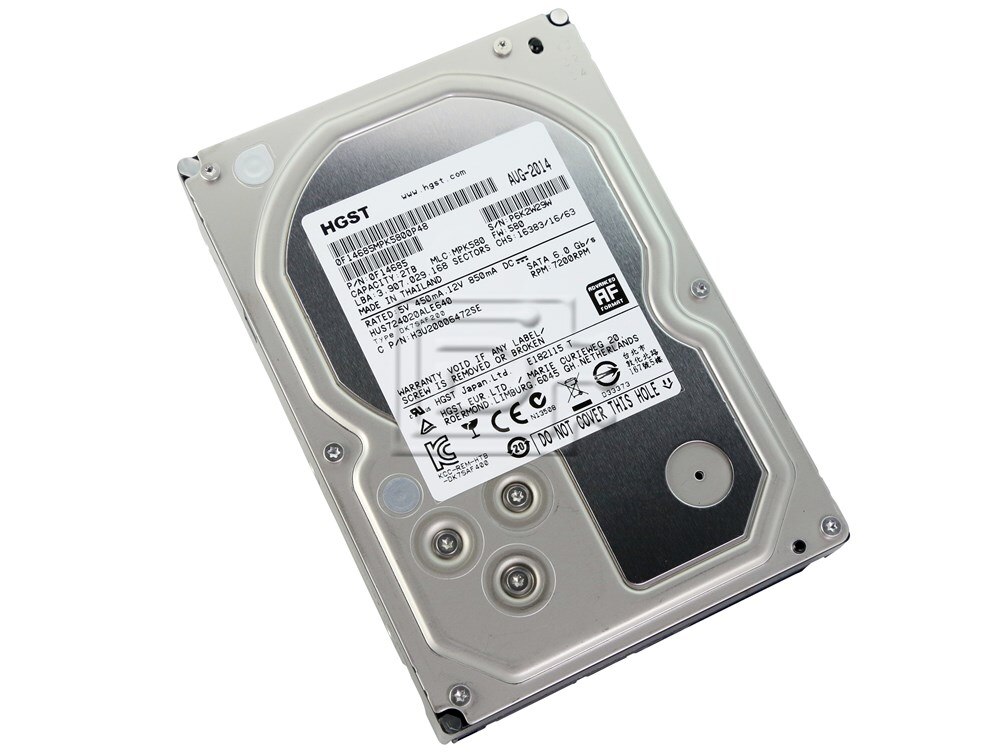

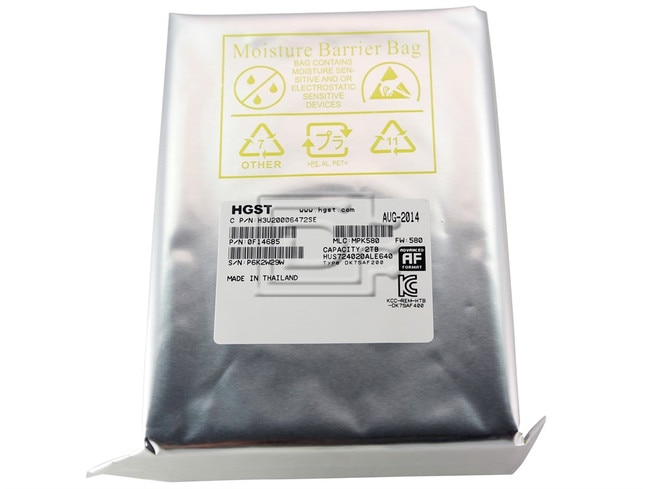

HGST Hitachi 0F14685 / HUS724020ALE640 2TB 3.5" 6Gbps 7.2K SATA Hard Drive

(0) No Reviews Yet

Hitachi Part #/MPN: 0F14685

DiscTech Item #: HIT-0F14685-BN-OE


$73.00
$73.00

Enterprise Grade

Capacity: 2TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 181

Average Seek Time: 8.0

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 64MB

HGST Hitachi 0F14685 / HUS724020ALE640 2TB 3.5" 6Gbps 7.2K RPM Ultrastar 7K4000 SATA Hard Drive - Brand New

HGST Hitachi 0F14685 / HUS724020ALE640 2TB 3.5" 6Gbps 7.2K RPM Ultrastar 7K4000 SATA HDD - Brand New

Ultrastar® 7K4000 3.5-Inch Enterprise 7200 RPM Hard Disk Drives

Delivering Industry-Leading Quality and Reliability

HGST Ultrastar® 7K4000 is the world’s first 4TB 7200 RPM hard drive with a 2.0 million hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents the sixth-generation HGST 5-platter design, which has been field proven by top server and storage OEMs and Internet giants. Engineered for the highest quality,the Ultrastar 7K4000 is put through grueling design tests during development and must pass stringent ongoing reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime, eliminating service calls and minimizing TCO.

Increasing Capacity Density by One Third

To deal with the explosive petabyte (PB) growth, data centers require large amounts of efficient storage. Reducing W/GB without expanding floor space is vital to lowering operating costs. To meet these demands, Ultrastar 7K4000 delivers 33% more capacity in the same footprint at 24% lower W/GB than its predecessor, Ultrastar 7K3000. Now you can get 2.4PB in the footprint of a standard 19-inch enterprise storage rack by stacking ten 4U, 60-bay enclosures. Ultrastar 7K4000 dual port SAS is available in traditional 512, 520 and 528 byte sector size. Ultrastar 7K4000 SATA is an Advanced Format* drive, using 4096-byte sector size to provide enormous capacity earlier than otherwise possible for environments optimized for this technology. Advanced Format drives are backwards compatible with legacy 512-byte sector size by offering built-in 512-byte emulation through the SATA interface.

Combining 7200 RPM Performance and Granular Power Control

Operating at 7200 RPM, Ultrastar 7K4000 offers better overall performance than slower RPM capacity-oriented drives, and does so at impressively low power-consumption rates. The Ultrastar 7K4000 can help data centers achieve lower AC power and HVAC requirements. With five Advanced Power Management modes,the 7K4000 achieves a 59% reduction in watts during low RPM idle mode, and uses less than 2W during standby/sleep modes, freeing up precious headroom for growing enterprise needs.

Innovating for a More Sustainable Environment

The Ultrastar 7K4000, with its halogen-free design and power-efficient operation, qualifies for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.

Highlights

  • 2.0 million hours MTBF
  • 2 terabytes of capacity
  • SATA 6Gb/s and SAS 6Gb/s models for configuration flexibility
  • Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
  • 24x7 accessibility for enterprise-class, capacity-optimized applications

Applications/Environments

  • Cloud storage
  • Massive Scale Out (MSO)
  • Data warehousing & mining
  • Disk-to-disk backup & archiving
  • RAID arrays
  • Network Attached Storage (NAS)


Compatibility:

This drive is compatible with any server that accepts 3.5 in x 1.0 in (LFF) SATA drives.

SPECIFICATIONS
Model Number0F14685
Alt Model NumberHUS724020ALE640
CONFIGURATION
InterfaceSATA 6Gb/s
Capacity (GB) at 512 bytes/sector2TB/2000GB
Form factor3.5-inch
Sector Size (bytes)512n
Max. areal density (Gbits/sq. in)475
PERFORMANCE
Data buffer (MB)64
Rotational speed (RPM)7200
Interface transfer rate (MB/s, max)600
Sustained transfer rate (MB.s, typical)181
Seek time (read, ms, typical)8.0
RELIABILITY
Error rate (non-recoverable, bits read)1 in 10e15
Load/Unload cycles (at 40° C)600,000
Availability (hrs/day x days/wk)24 x 7
MTBF (M hours)2.0
RELIABILITY
Idle (Bels, typical)2.9
POWER
Requirement+5 VDC (+/-5%)

+12 VDC (+10%/-8%)
Startup current (A, max)1.2 (+5V)

2.0 (+12V)
Read/write (W)11.4
Idle (W, avg)6.9
Unload idle (W)5.7
PHYSICAL
z-height (mm/in max)26.1/1.028
Dimensions (width x depth)101.06 mm (+/-0.25) x 147 mm

4 in (+/-0.01) x 5.787 in
Weight (g/lb, typical)690/1.521
ENVIRONMENTAL (OPERATING)
Ambient temperature5° to 60° C
Shock (half-sine wave 2 ms, G)70
Vibration (G RMS, 5 to 500 Hz)0.67 (XYZ)
ENVIRONMENTAL (NON-OPERATING)
Ambient temperature-40° to 70° C
Shock (half-sine wave 1 ms, G)300
Vibration (G RMS, 5 to 500 Hz)1.04 (XYZ)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUS724020ALE640

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New
