Hitachi Part #/MPN: 0B23316
DiscTech Item #: HIT-0B23316-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 135 - 98
Average Seek Time: 3.6
Electrical Interface: FC-AL - 4Gbps
On-Board Cache: 16MB

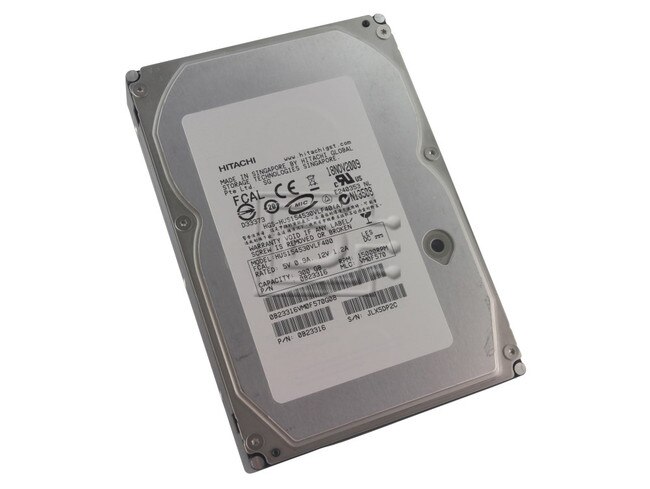

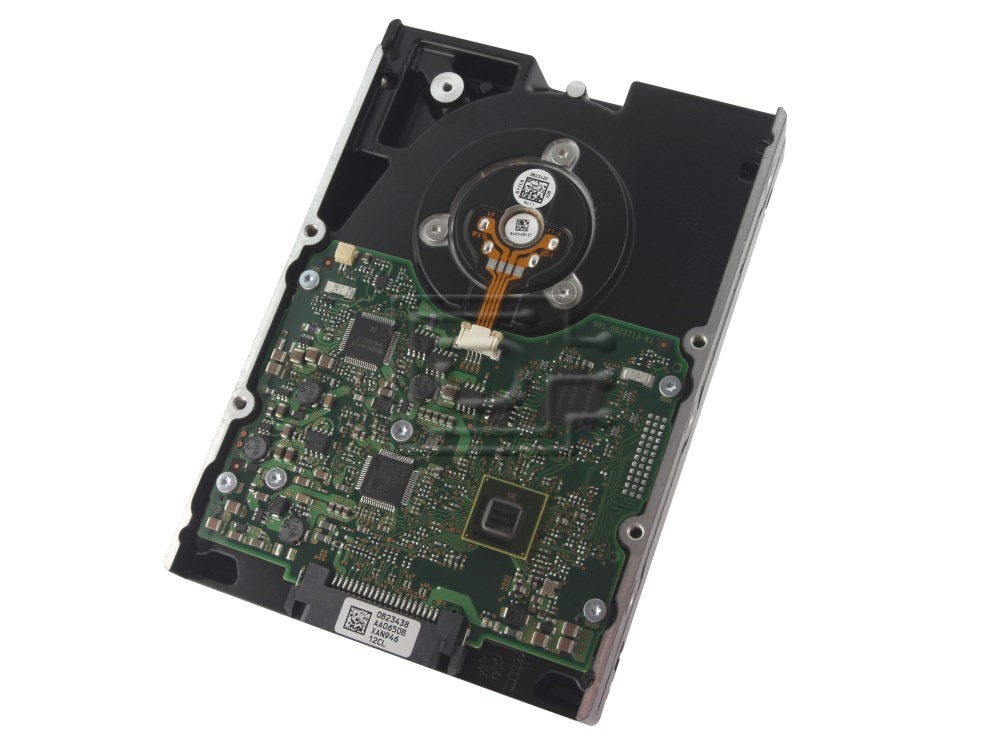

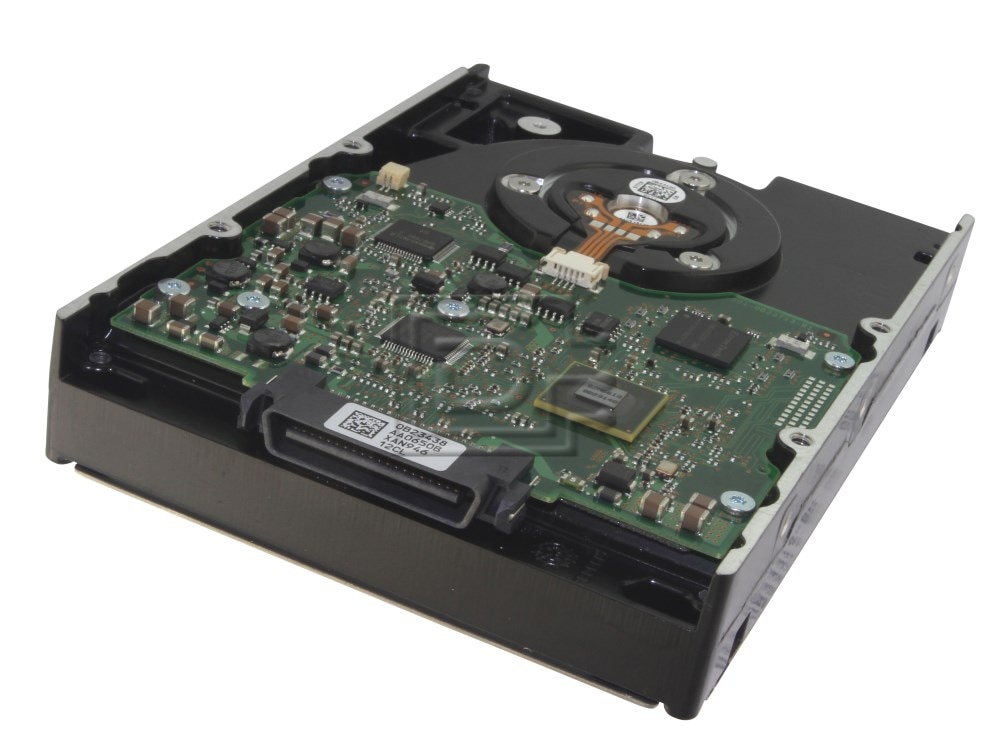

Hitachi UltraStar 0B23316 / HUS154530VLF400 300GB 15K 4Gbps 40pin FC-AL Fibre Channel Hard Drive - Brand New
Ultimate performance meets high capacity
Hitachi’s next-generation 3.5-inch 15,000 RPM enterprise class hard drive delivers the performance and reliability required in mission-critical non-stop computing environments. Built upon the mature system architecture and electronics of the prior generation, the Ultrastar™ 15K450 provides spacious capacity up to 450GB,16MB cache and a choice of Serial Attached SCSI (SAS) 3Gb/s or Fibre Channel Arbitrated Loop (FCAL) 4Gb/s interfaces. These features make the Ultrastar 15K450 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and multi-user applications. The mature design of Ultrastar 15K450 helps ensure shorter qualification time.
Highest reliability for demanding environments
Important reliability features come standard in the Ultrastar 15K450. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi-patented Thermal Fly-height Control (TFC) technology maintains a consistent fly-height during the read/write process ensuring a better soft error rate, while end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.
Proven PMR technology
The Ultrastar 15K450 is the first enterprise-class drive from Hitachi to use Perpendicular Magnetic Recording (PMR) technology. PMR has already been in use across the company’s mobile and desktop product lines and has been proven ready for the demanding mission-critical server and storage applications in the enterprise environment.
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays
| Specifications | |
|---|---|
| Model number | 0B23316 / HUS154530VLF400 |
| Model Name | 15K450 |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 4 |
| Number of Heads (physical) | 8 |
| Performance | |
| Internal Transfer Rate (max) | 2090 / 1897 Mbits/sec |
| External (I/O) Transfer Rate (max) | 425 MBytes/sec |
| Sustained Transfer Rate | 135 - 98 MBytes/sec |
| Average Latency | 2.0 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.8 mm |
| Width | 101.6 mm |
| Length | 146.2 mm |
| Weight | 750 g |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS154530VLF400
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
