INTEL Part #/MPN: SSDSC2BW120A3F
DiscTech Item #: INT-SSDSC2BW120A3F-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 120GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

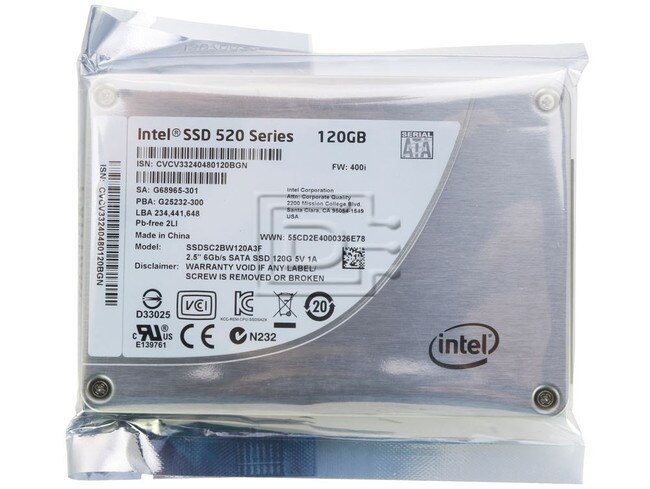

Intel SSDSC2BW120A3F 520 Series 120GB MLC SATA 6Gbps (AES-128) 2.5-inch Internal Solid State Drive (SSD) - Brand New
Intel 520 Series SSDSC2BW120A3F 120 GB 2.5in MLC SSD SATA3 Hard Drive - Brand New
Intel Model Number: SSDSC2BW120A3F
Intel Solid-State Drives (Intel SSDs) continue to evolve with the Intel SSD 500 Family. Available in a wide range of capacities up to 480 GB, the Intel Solid-State Drive 520 Series delivers leading performance for Serial Advanced Technology Attachment (SATA)-based computers. By combining Intel's leading 25nm NAND flash memory technology with SATA 6Gb/s interface support, the Intel SSD 520 Series delivers sequential read speeds of up to 550 MB/s and sequential write speeds of up to 520 MB/s. The industry-standard 2.5-inch form factor enables interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, and ruggedness offered by an SSD.
The Intel SSD 520 Series also offers built-in data protection features including Advanced Encryption Standard (AES) 256-bit Encryption, End-to-End Data Protection, and Data Compression. Now that your work is safe, use the world-class performance of the Intel SSD 520 Series to dominate your gaming competition or to reach new levels of creativity and productivity.
Compatibility:
| Specifications | |
|---|---|
| Intel Model Number | SSDSC2BW120A3F |
| Model Name | 520 Series |
| Formatted Capacity | 120 Gbytes |
| Components | Intel NAND Flash MLC |
| Form Factor | 2.5" |
| Performance | |
| External (I/O) Transfer Rate (max) | SATA III 6.0 Gb/s |
| Max Seq. Read | Up to 550MB/s (SATAIII) / Up to 280 MB/s (SATAII) |
| Max Seq. Write | Up to 520 MB/s (SATAIII) / Up to 260MB/s (SATAII) |
| 4KB Random Read/Write | Up to 25,000 IOPS / 40,000 IOPS |
| Latency - Read | 80 µs |
| Latency - Write | 85 µs |
| MTBF | 1,200,000 Hours |
| Uncorrectable Bit Error Rate | 1 sector per 10 x16th |
| Environmental | |
| Operating Temp. | 0C - +70C |
| Product Specifications | |
|---|---|
| Product Name | SSDSC2BW120A3F |
| Model Name | 520 Series |
| Formatted Capacity | 120 Gbytes |
| Components | Intel NAND Flash MLC |
| Form Factor | 2.5" |
| Drive Type | Internal |
| Storage Capacity | 120GB |
| Hot Swappable | Yes |
