Juniper Part #/MPN: NS-050B-001
DiscTech Item #: JUN-NS-050B-001-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps

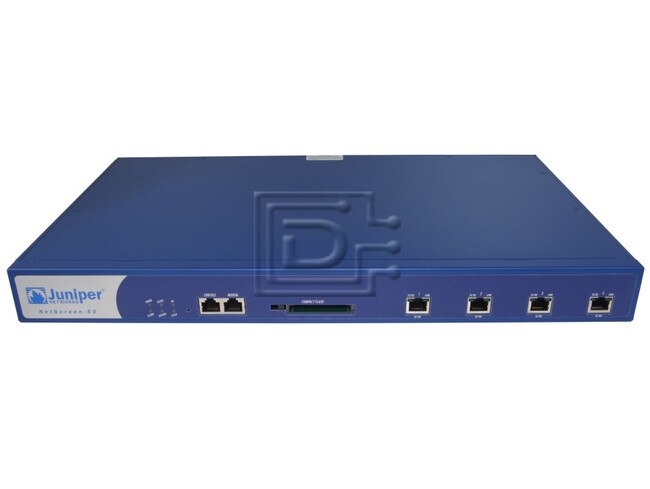

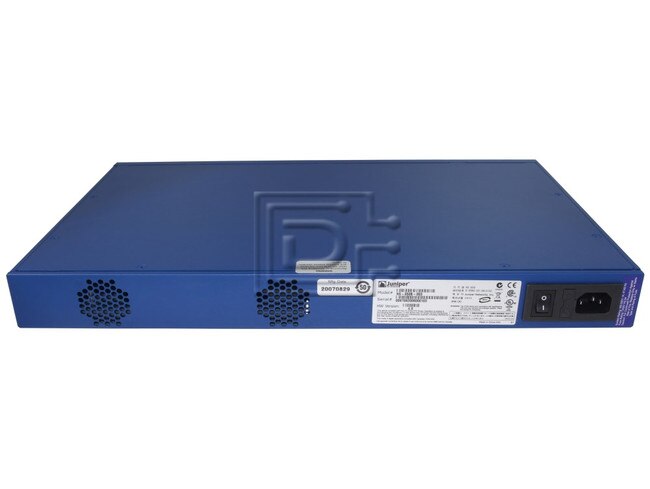

Juniper / Netscreen 50 Baseline Firewall / VPN Appliance - Unlimited Users, 150 Tunnels NS-050B-001 - Brand New
The Juniper Networks NetScreen 50 Baseline appliances are integrated security devices for enterprise branch and remote offices, as well as small to medium-sized companies. They provide solutions for perimeter security with multiple DMZs, VPNs for wireless LAN security, or protection of internal networks. The NetScreen 50 Baseline appliance is a high-performance integrated security appliance, offering 170 Mbps of firewall and 45 Mbps of 3DES or AES VPN performance, with support for 48,000 concurrent sessions, and 150 VPN tunnels.
This unit has the Baseline software license designed as an entry-level solution for customer environments where features such as Deep Inspection, OSPF and BGP dynamic routing, advanced High Availability, and full capacity are not critical requirements. NS-050-001 is the Juniper part number for this unit with the Advanced licensing option that includes these features.
| Specification | NS-050B |
| Maximum Performance and Capacity | |
| Firewall performance | 170 Mbps |
| 3DES+SHA-1 performance | 45 Mbps |
| Concurrent sessions (Baseline / Advanced) | 48,000 / 64,000 |
| New sessions/second | 5,000 |
| Policies | 1,000 |
| Interfaces | 4 10/100 Base-T |
| Mode of Operation | |
| Layer 2 mode (transparent mode) | Yes |
| Layer 3 mode (route and/or NAT mode) | Yes |
| NAT (Network Address translation) | Yes |
| PAT (Port Address translation) | Yes |
| Policy-based NAT | Yes |
| Virtual IP | 2 |
| Mapped IP | 500 |
| Virtual LANs (Baseline / Advanced) | Not Available / 16 |
| Routing Protocols Supported (Baseline / Advanced) | RIPv1/v2 only / OSPF, BGP, RIPv1/v2 |
| MIP/VIP Grouping | Yes |
| Users supported | Unrestricted |
| Firewall | |
| Number of network attacks detected | 31 |
| Network attack detection | Yes |
| DoS and DDoS protections | Yes |
| TCP reassembly for fragmented packet protection | Yes |
| Malformed packet protections | Yes |
| IPS (Deep Inspection FW) (Baseline / Advanced) | Not Supported / Yes |
| Anti-Spam | Not Supported / Yes |
| Integrated (Baseline / Advanced) | Not Supported / Yes |
| Redirect Web Filtering (Baseline / Advanced) | Yes / Yes |
| Content Inspection | Yes |
| VPN | |
| Concurrent VPN tunnels (Baseline / Advanced) | 150 / 500 |
| Tunnel interfaces | 50 |
| DES (56-bit), 3DES (168-bit) and AES encryption | Yes |
| Manual Key, IKE, PKI (X.509) | Yes |
| Physical | |
| Dimensions | 1.73 / 17.5 / 10.8 inches |
| Weight | 8 lbs. |
| Power Supply (AC) | 90 to 264 VAC, 45 watts |
| Power Supply (DC) | -36 to -72 VDC, 50 watts |
| Operating Temperature | 23 to 122° F, -5 to 50° C |
| Non-Operating Temperature | -4 to 158° F, -20 to 70° C |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: NS-050-001
Weight: 14 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
