Maxtor Part #/MPN: 8D073J0
DiscTech Item #: MAX-8D073J0-OB-OE
- New Open BoxCondition Levels Explained
The product is new, either in resealed factory packaging or replacement packaging. (Typically on hard drives this means that the drives have been re-bagged).The item may be a customer returned item.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 89
Average Seek Time: 4.0 / 4.5
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

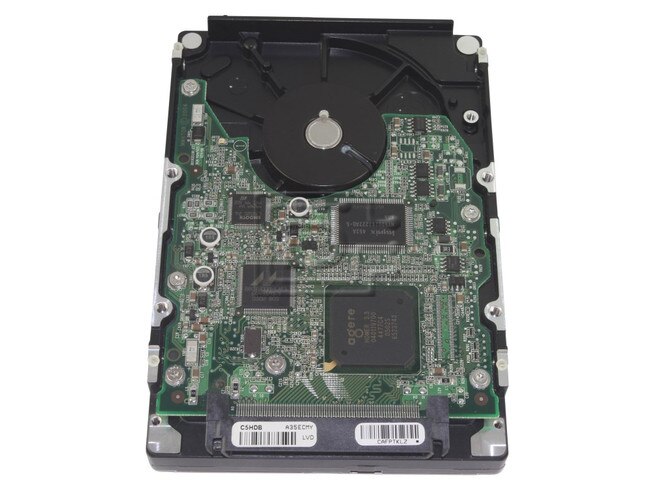

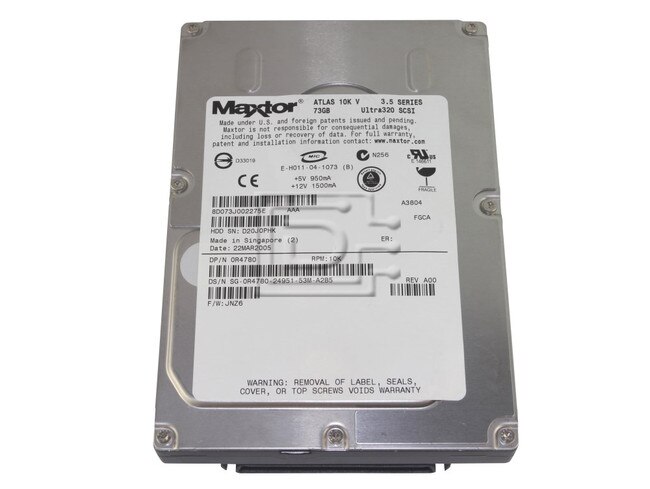

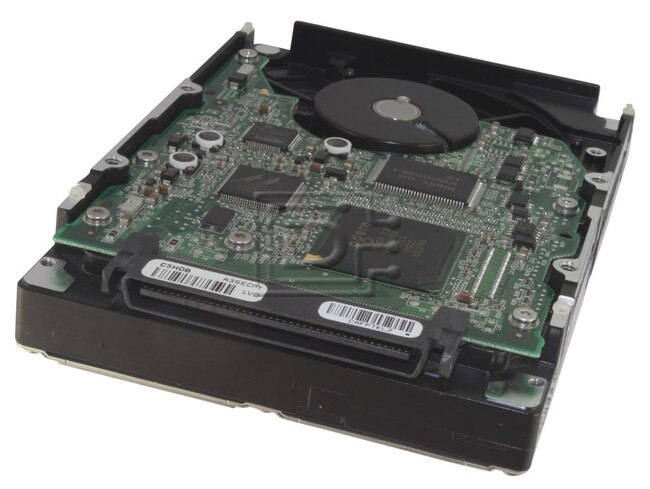

Maxtor 8D073J0 Atlas 10K V 73GB U320 80pin SCA-2 SCSI Hard Drive - New Open Box
The Atlas 10K V SCSI hard disk drive is the industry’s largest and most reliable 10K SCSI drive, with 300GB maximum capacity and a MTTF of 1.4 million hours. Seek times as fast as 4.0ms and 89MB/sec sustained data transfer rate makes the Atlas 10K V drive an excellent solution for any application. It includes Maxtor’s intelligent drive technology, MaxAdapt®, which allows the HDD to adapt to individual system designs for seamless integration while maintaining peak performance.
MaxAdapt features include:
* Adaptive Bias Estimation -- maintains consistent performance
* Virtual Cache Lines (VCL) -- allows dynamic assignment of cache segments
* Adaptive Active Filtration -- improves signal integrity
* Rotational Vibration Compensation (RVC) -- monitors and corrects for induced vibration
Performance improvement features include:
* Anticipatory read and write streams -- minimizng latency
* Opportunistic pre-fetch -- uses latency between commands to read ahead
* Auto Read mode -- improves random and multiple sequential streams performance
* Industry's highest 10K performance
* Formatted capacity: 73.4GB, 147.1GB, 300GB
* Seek time as fast as 4.0ms
* Designed for 1.4 million hours MTTF
* Third-generation Ultra320 SCSI
* MaxAdapt® intelligent drive technology
* 89MB/s maximum sustained data rate
* 8MB cache buffer
* Enhanced S.M.A.R.T. features
* Thermal sensor
Specifications | 73.5 GB | 147.1 GB | 300 GB |
Formatted Capacity (GB) | 73.5 | 147.1 | 300 |
Bytes per Sector | 512 | 516 | 518 |
Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI) | |||
Interface Connectors 68-pin WIDE and 80-pin SCA-2 | |||
Average Read/Write (ms) | 4.0/4.5 | 4.2/4.7 | 4.4/4.9 |
Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
Full stroke Read/Write (ms) | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
Maximum Sustained Transfer Rate (MB/sec) | 89 | 89 | 89 |
Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
Non-Condensing Humidity (%) | 5 to 95 | 5 to 95 | 5 to 95 |
Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
Idle Power (W) | 8.0 | 8.5 | 10.8 |
Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
Weight max (lb/kg) | 1.8/0.82 | 1.8/0.82 | 1.8/0.82 |
Click here to view the manufacturer's item description/brochure
