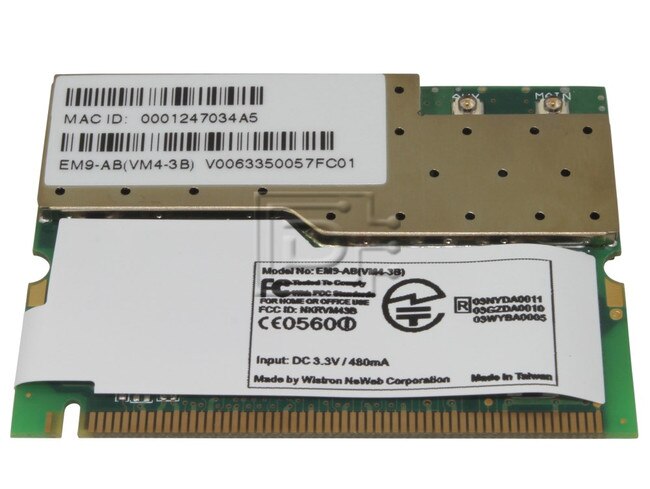

Netegriti EM9-AB 802.11a & 802.11b Mini PCI Wireless Card

(0) No Reviews Yet

neTegriti Part #/MPN: EM-9AB

DiscTech Item #: NTG-EM-9AB-BN-FW


$5.00
$5.00

Interface Types: Ethernet RJ45, Mini-Coax SMT

Encryption/SED Supported

Netegriti's 802.11a+b Wireless LAN ComboCard (Model: EM9-AB) delivers the utmost in mobile convenience, allowing secure connections to both 802.11b and 802.11a networks from a single card. With the 802.11a+b ComboCard, users can move easily between 802.11 networks at home, in the office, and in public spaces such as a hotel or an airport lounge.

These Mini-PCI wireless cards work well with and have software for Microsoft Windows and many versions of Linux. Please visit our support section for driver/software downloads for our laptop wireless cards.

Netegriti's 802.11a+b Wireless LAN ComboCard (Model: EM9-AB) delivers the utmost in mobile convenience, allowing secure connections to both 802.11b and 802.11a networks from a single card. With the 802.11a+b ComboCard, users can move easily between 802.11 networks at home, in the office, and in public spaces such as a hotel or an airport lounge.

Supports peer-to-peer networking and communication to wired networks via Access Points.

Acer NeWeb's client adapters couple the mobility, freedom, and flexibility of wireless local-area networking with the bandwidth required by enterprise-wide information systems. With wireless-enabled client PCs, users with laptop, notebook and hand-held devices can move freely within a campus environment while maintaining uninterrupted access to centrally located data.

In 802.11a mode, the EM9-AB is a 5GHz 54Mbps Wireless LAN client adapter that is Institute of Electrical and Electronic Engineers (IEEE) 802.11a-compliant 32 bit mini PCI adapter that operates in the UNII-1 and UNII-2 bands. The ultra high speed and throughput enables the rapid wireless transfer of bandwidth-intensive data such as multimedia streams and large data files within the enterprise.

In 802.11b mode, based on direct sequence spread spectrum (DSSS) technology and operating in the 2.4 GHz band, the EM9-AB provides an Ethernet-like data rate of up to 11 megabits per second (Mbps).

For investment protection, the EM9-AB conforms to the IEEE 802.11a and 802.11b standard, ensuring interoperability with equipment available from a variety of vendors. It is fully compatible with most popular network operating systems. The EM9-AB can be seamlessly integrated into wired Ethernet networks, as a complement or alternative to the wired LAN products available today.

What's Included: One 2.4GHz/ 5GHz IEEE802.11a/b Plus mini PCI Adapter

Options:

Some laptops (e.g. Dell Inspiron 8000) need a mini-coaxial jumper cable to interconnect the integrated the antenna and the card. We sell these jumper cables for $19.95 each.

If you do not have an integrated antenna in your laptop, we sell generic antennae for $19.95 each. Two antennae are recommended for usage with these cards. The performance of these antennae will vary depending upon the structure and shielding of your laptop.

Compatibility:

This Mini-PCI card works in almost ANY laptop with a mini PCI slot, and integrated antenna. This includes, but is not limited to Dell Inspiron 4000, 4100, 4150, 5000, 5100, 600m 8000, 8100, 8200, 8500, Latitude C600, C610, C620, C640, C800, C810, C820, C840, D600, D800, Precision M50 Workstation notebooks; Toshiba Tecra, Satellite Pro, some IBM Thinkpads (T40, X31 & R40), ArmComputer CR10 and MANY MANY OTHERS!!!

Certain Toshiba and ARM laptops require special instructions for successful installation. Please mention that you have a Toshiba when ordering.

Main Chipset

Atheros AR5111, AR5211, AR2111
Frequency range

* U-NII: 2.412 ~ 2.484Ghz, 5.15 ~ 5.35Ghz, 5.725 ~ 5.825Ghz

* Europe: 2.412 ~2.484Ghz, 5.15~ 5.35Ghz, 5.47 ~ 5.725Ghz

* Japan: 2.471 ~ 2.497Ghz, 5.15 ~ 5.25Ghz

* China : 2.412 ~ 2.484 GHz, 5.725 ~ 5.85 GHz
Modulation technique

* 802.11b : DSSS (DBPSK, DQPSK, CCK)

* 802.11a : OFDM (BPSK,QPSK, 16-QAM, 64-QAM)
Host interfaceMini-PCI form factor; Mini-PCI Version 1.0 type 3B
Channels support

802.11b

¡@US/Canada: 11 (1 ~ 11)

¡@Major European country: 13 (1 ~ 13)

¡@France: 4 (10 ~ 13)

¡@Japan: 14 (1~13 or 14th)

¡@China: 13 (1 ~ 13)

802.11a

¡@1). US/Canada:

¡@¡@12 non-overlapping channels (5.15 ~ 5.35GHz, 5.725 ~ 5.825GHz)

¡@2). Europe:

¡@¡@19 non-overlapping channel (5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz)

¡@3). Japan:

¡@¡@4 non-overlapping channels (5.15 ~ 5.25GHz)

¡@4). China : 5.725 ~ 5.85 GHz
Operation voltage

3.3V +/- 5% DC
Power consumption


 802.11a802.11b
Continuous Tx440~460mA @17dBm560~580mA @18dBm
Continuous Rx310~330mA340~360mA
FTP Tx380~400mA480~500mA
FTP Rx320~400mA420~440mA
Standby mode320~340mA330~350mA
Power saving mode40mA40mA
RF Kill 40mA 40mA
Output power

* 802.11b

¡@18 dBm ( ~65 mW) peak power

* 802.11a

¡@1). US :

¡@¡@5.150 ¡V 5.250: 17 dBm

¡@¡@5.250 ¡V 5.350: 17 dBm

¡@¡@5.470 ¡V 5.725: not allowed

¡@¡@5.725 ¡V 5.825: 17 dBm

¡@2). Europe

¡@¡@5.150 ¡V 5.250 and 5.250 ¡V 5.350: 17 dBm

¡@¡@5.470 ¡V 5.725: 17 dBm

¡@¡@5.725 ¡V 5.825: Not allowed.

¡@3). Japan

¡@¡@5.150 ¡V 5.250: 17 dBm

¡@¡@5.250 ¡V 5.350: not allowed

¡@¡@5.470 ¡V 5.725: not allowed

¡@¡@5.725 ¡V 5.825: not allowed
Operation distance

* 802.11b

Indoor : 37 meters /121 feet @ 11Mbps

Outdoor : 230 meter /750 feet @ 11Mbps

* 802.11a

Indoor: 18 meters /60 feet @54Mbps

Outdoor: 41 meters / 135 feet @54Mbps

Operation System supported

Windows 98SE, Me, 2K, XP
Dimension

59.75mm(W) * 44.60mm ( L) * 5mm (H)
Security

64-bit ,128-bit ,152-bit WEP Encryption

802.1x Authentication

H/W AES encryption
Operation mode

Infrastructure & Ad-hoc mode
Transfer data rate

* 802.11b

¡@11, 5.5, 2, 1 Mbps, auto-fallback

* 802.11a (Normal mode)

¡@54, 48, 36, 24, 18, 12, 9, 6Mbps, auto-fallback

* 802.11a (Turbo mode)

¡@108,96,72,48,36,24,18,12 Mbps, auto-fallback
Operation temperature

0¢XC ~ 70¢XC
Storage temperature

-20¢XC ~ 80¢XC
Operation Humidity Range

10% ~ 90%
Wi-Fi®

WECA Compliant
WHQL

Microsoft®¡@2K, XP Complaint
FAA

S/W and H/W on/off support
EMC certificate

* FCC part 15 (USA)

* IC RSS-210 (Canada)

* Telec (Japan)
Media access protocol

CSMA/CA with ACK architecture 32-bit MAC
Antenna connector2 SMT Ultra-miniature coaxial connectors



Receive Sensitivity:                          -89dBm @ 11M

                         -94dBm @ 1M





Freq.             6M                 54M

5.18G           -89.5                -71

5.5G             -90                 -72

5.8G             -88                 -68




-89dBm @ 11M, -94dBm @ 1M.


Click here to view the manufacturer's item description/brochure

Alternate MPNs: VM4-3B

Weight: 1 lb

Warranty: 1 Year Manufacturer

Brand New
