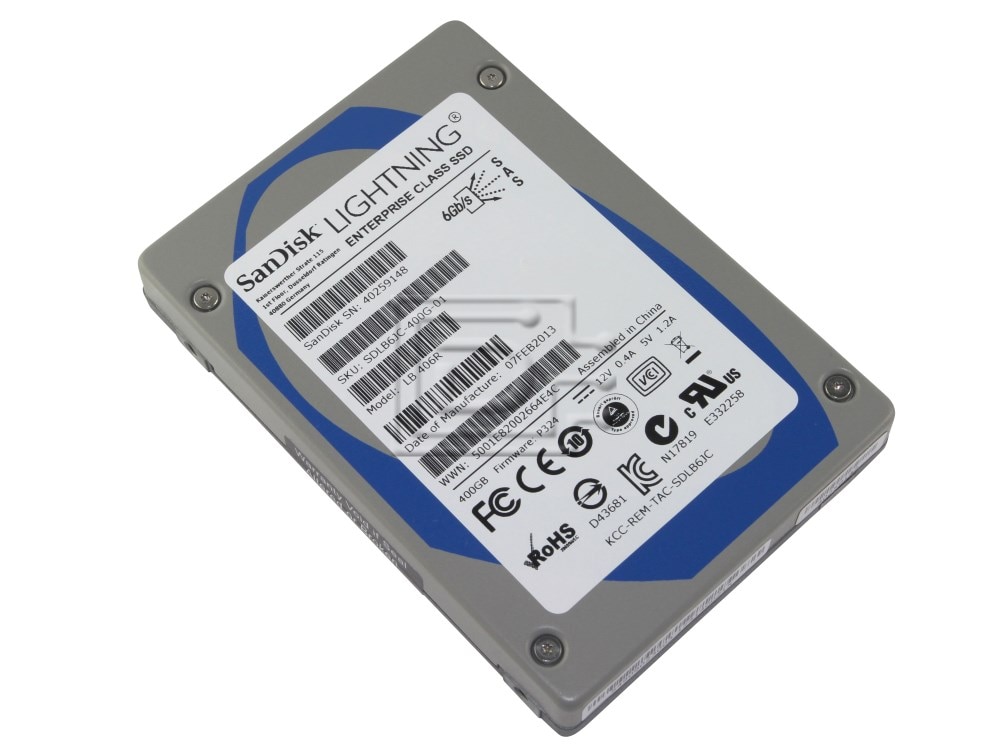

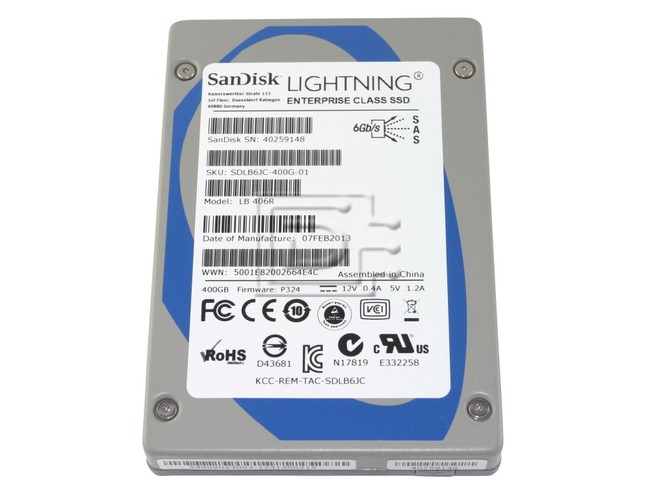

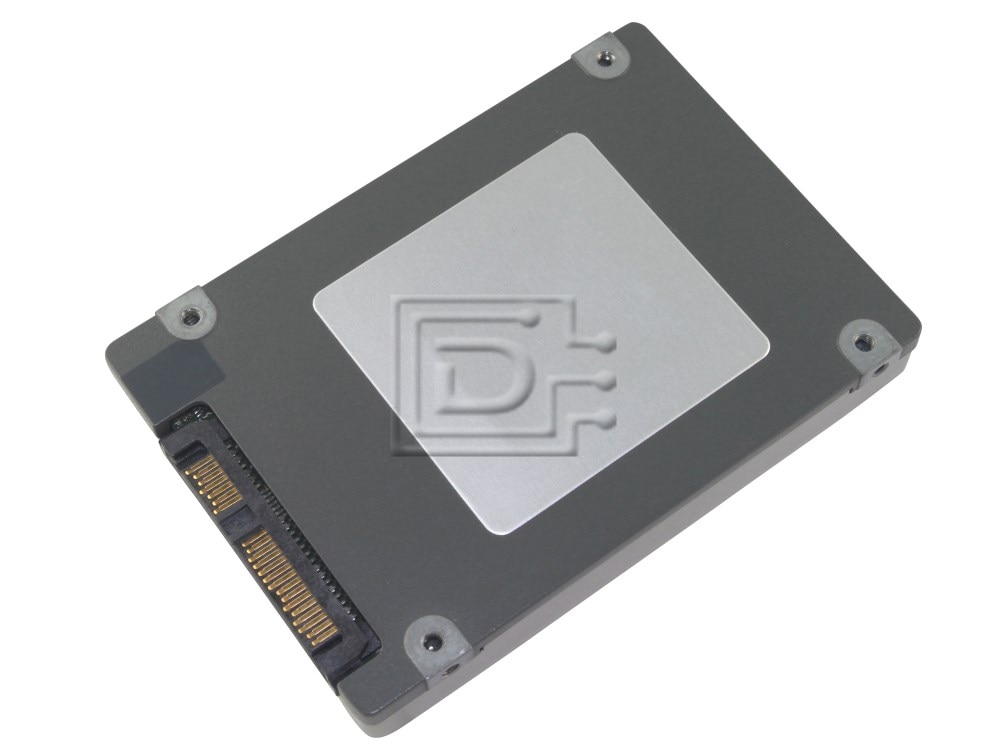

SanDisk LB406R 400GB SFF SAS SSD

(0) No Reviews Yet

SANDISK Part #/MPN: LB406R

DiscTech Item #: SAN-LB406R-NP-OE


$995.00
$995.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 530

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

SanDisk LB406R 400GB SFF 2.5inch Enterprise Serial Attached SCSI / SAS Solid State Drive SSD - New Pull

Lightning Read-Intensive SAS SSDs Accelerate Performance and Enhance Reliability

The ability to quickly access data is critical to nearly every enterprise organization. Lightning® Read-Intensive 6Gb/s SAS Enterprise Solid State Drives (SSDs) greatly reduce latency compared to traditional hard-disk drives (HDDs). Optimized for environments with a high proportion of data reads compared to writes (90 percent read/10 percent write), Lightning Read-Intensive SAS drives can be used to serve data in a broad range of applications and services, such as media and entertainment, cloud services, and web servers.

I/O optimization for read-intensive workloads reduces bandwidth usage, alleviating network bottlenecks and enabling organizations to maximize the utility of existing infrastructure. Lightning Read-Intensive SSDs feature an advanced controller based on a highly efficient parallel-processing architecture, so your data center or business will get the speed it needs.

  • up to 410 MB/s** data throughput
  • up to 87,000 total IOPS (read)
  • 400GB** to 1.6TB capacities
  • Two million hours MTBF**
  • Qualify once and deploy throughout your system


Compatibility:

This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives

Specifications
InterfaceCapacity200GB400GB800GB2000GB
TypeSAS
Transfer Rate6Gb/s
AvailabilityDual-port
PerformanceSustained Read ThroughputUp to:530MB/s1530MB/s530MB/s530MB/s
Sustained Write ThroughputUp to:380MB/s380MB/s453MB/s 295MB/s
Max 100% Read IOPSUp to:120,000120,000118,000 113,000
Max 100% Write IOPSUp to:110,000 110,000 63,000 103,000
Max 100% Random Read IOPS(4K)84,000 84,000 85,000 65,000
Max 100% Random Write IOPS(4K)28,50034,000 17,5006,000
PhysicalForm Factor2.5-inch
Dimensions (mm)100.2mm(L) x 69.8mm(W) x 15.0mm(H)
Weight<0.4kg
EnduranceDrive Writes Per Day for 5 Years15x 15x 10x*10x*
(100% Random 4KB/8KB write workload)††
EnvironmentalOperational Temperature0° to 60°C (Commercial)

1The drive saturates the I/O bus

†† (DWPD at aligned block size in product specifications)

*Unlimited version available **1TB = 1000GB


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
