Seagate Part #/MPN: ST340014A
DiscTech Item #: SGT-ST340014A-FR-6M
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: IDE ATA 3.5in
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 58
Average Seek Time: 8.5 / 9.5
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 2MB

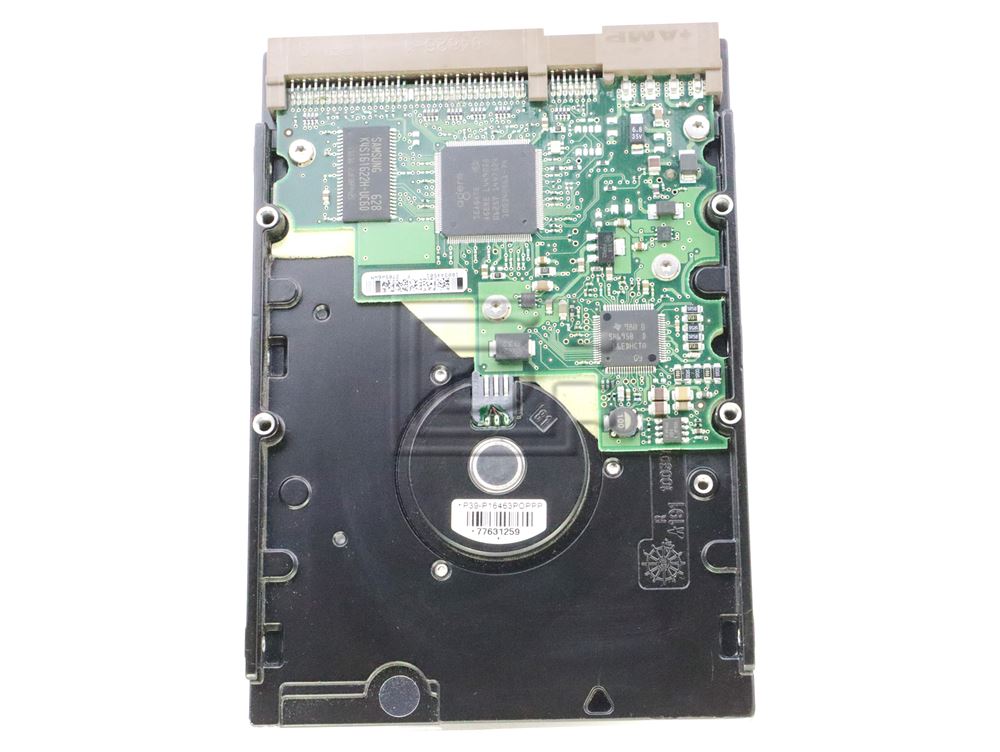

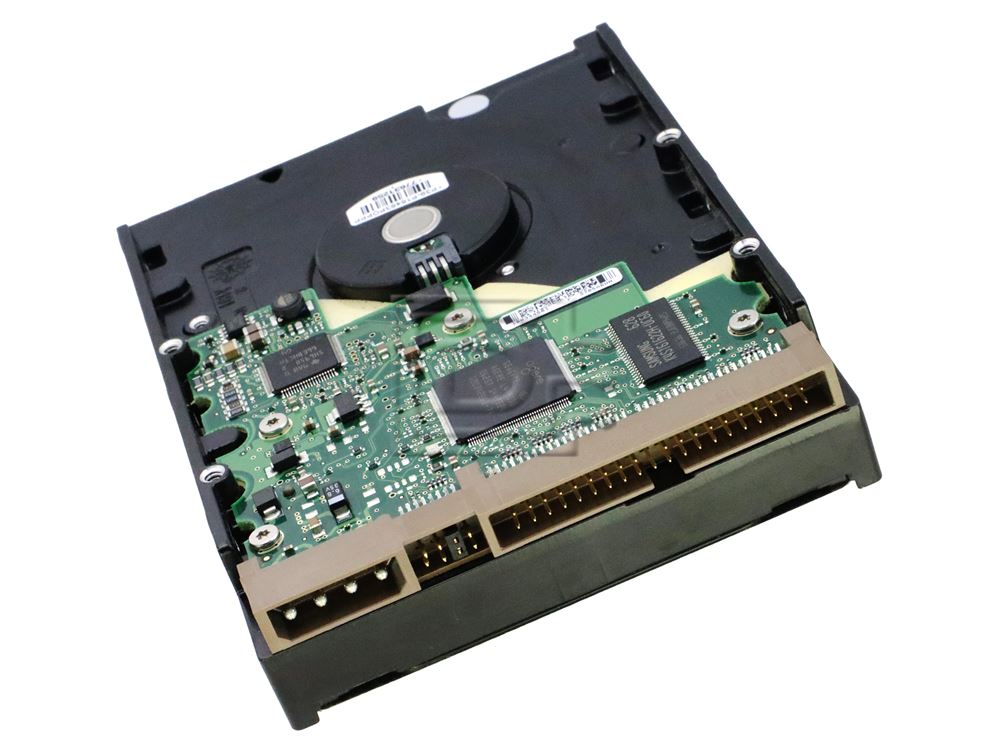

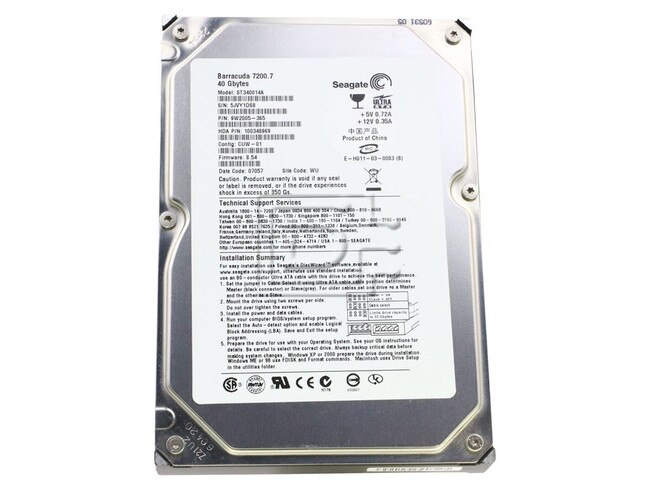

Seagate Barracuda ST340014A 7200.7 - 40GB Ultra ATA / 100 IDE Hard Drive - Factory Recertified
These drives provide the following key features:
• 7,200-RPM spindle speed
• 2-Mbyte buffer on: ST3200021A, ST3160021A, ST3120022A, ST380011A and ST340014A
• 8-Mbyte buffer on: ST3200822A, ST3160023A, ST3120026A, and ST380013A
• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.
• Giant magnetoresistive (GMR) recording heads and EPRML technology, which provide the drives with
increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• 350 Gs nonoperating shock.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• The 3D Defense System™, which includes Drive Defense, Data Defense, and Diagnostic Defense, offers
the industry’s most comprehensive protection for disc drives.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Support for Read Multiple and Write Multiple commands.
• Support for autodetection of master/slave drives that use cable select (CSEL).
This drive is compatible with any computer having an IDE/PATA controller.
ST-340014A (Barracuda 7200.7 40, Ultra ATA/100) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º ÈÍÍÍÍÍÍÍÍÍÍÍ¼ J2 40 pin I/O Cable Connection ³ pin-20 removed ³ ³ ÚÄÄ [spare jumper on pins 5-7] ³ ³ ÕÍÍÍÍÍÍÍÍÍ ³ÍÍÍÍÍÍÍÍÍÑÍÍ³ÍÍÍÍ1Í/ÄÄÄÄÄÄÄÄÄ\ TOP (HDA) Íµ::::::::::ú::::::::1³ :Á: : : ³ 0 0 0 0 ³ÍÍ ÔÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÏ8³Í³Í³Í³ÍÀÄ5ÄGÄGÄ12Ù BOTTOM ³ ³ ³ ³ ³ ³ ³ ÀÄÄ Limit Capacity (see below) ³ ³ ÀÄÄÄÄ Reserved O=OFF, X=ON -->> X-OÄÄÄÄÄÄ Master ON O-OÄÄÄÄÄÄ Slave OFF X-XÄÄÄÄÄÄ Slave Present (when pins 7-8 ON used on Master drive) O-XÄÄÄÄÄÄ Cable Select (when pins 7-8 OFF) On drives greater than 33.8GB, Limit Capacity jumper changes total available sectors as reported via Identify Drive data words 60-61 to 33.8GB to solve issues with certain BIOS during power on. The ATA Read Native Max command will report true full capacity. The ATA Set Max command will restore true full capacity to the operating system drivers. Third party partitioning software may be needed to achieve full capacity when using this option jumper. ST-340014A Barracuda 7200.7 FORMATTED CAPACITY (GB) __________________40 ACTUATOR TYPE ____________________________VOICE COIL CYLINDERS __PHYSICAL______________________ HEADS ______PHYSICAL______________________1 DISCS (3.5 in) ___________________________1 MEDIA TYPE _______________________________THIN FILM HEAD TYPE ________________________________GMR RECORDING METHOD _________________________EPRML 16/17 ZBR INTERNAL TRANSFER RATE (Mbytes/sec) ______up to 85.4 SUSTAINED TRANSFER RATE (MB/sec)__________up to 58 EXTERNAL TRANSFER RATE (Mbytes/sec) ______up to 100 PIO/DMA/UDMA MODE (max) __________________4/2/5 SPINDLE SPEED (RPM) ______________________7200 AVERAGE LATENCY (mSEC) ___________________4.16 BUFFER ___________________________________2MB Read/Write Multiple, Read Look-Ahead, Multi-Segmented INTERFACE ________________________________Ultra ATA/100 SECTORS PER DRIVE (LBA mode) _____________78,165,360 TPI (TRACKS PER INCH) ____________________94,600 BPI (KBITS PER INCH) _____________________up to 595,000 AVERAGE ACCESS (ms seek/read/write) ______/8.5/9.5 SINGLE TRACK SEEK (ms seek/read/write) ___/<1.0/<1.2 MAX FULL SEEK (ms seek/read/write) _______// MTBF (power-on hours) Office _____________600,000 SHOCK (G's, 11ms/2ms): operating (Read/Write) __________/63 abnormal ________________________ nonoperating ____________________/350 ACOUSTICS (bels) fluid bearing (typ/max-quiet/max-perf) _<2.2//3.5 POWER DISSIPATION (watts) ________________ POWER REQUIREMENTS: +12V START-UP (amps) _2.8 POWER MANAGEMENT (Watts): ACTIVE _______________12.5 IDLE _________________7.5 STANDBY (typ/max) ____0.9/ Physical: Height (inches/mm): 1.028/26.04 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.78/146.9 Weight (lb/g): 1.4/635
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 6 Month Manufacturer
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
6 Month Manufacturer Warranty
