Seagate Part #/MPN: ST336753FCV
DiscTech Item #: SGT-ST336753FCV-RF-OE-DEL
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 56.1 to 86.0
Average Seek Time: 3.6 / 4.0
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

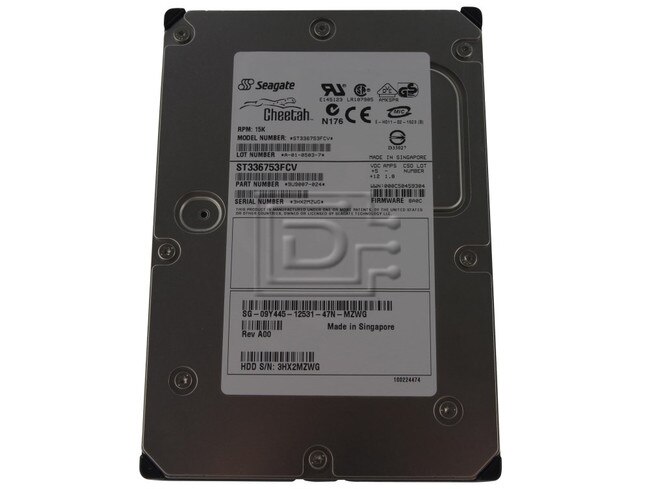

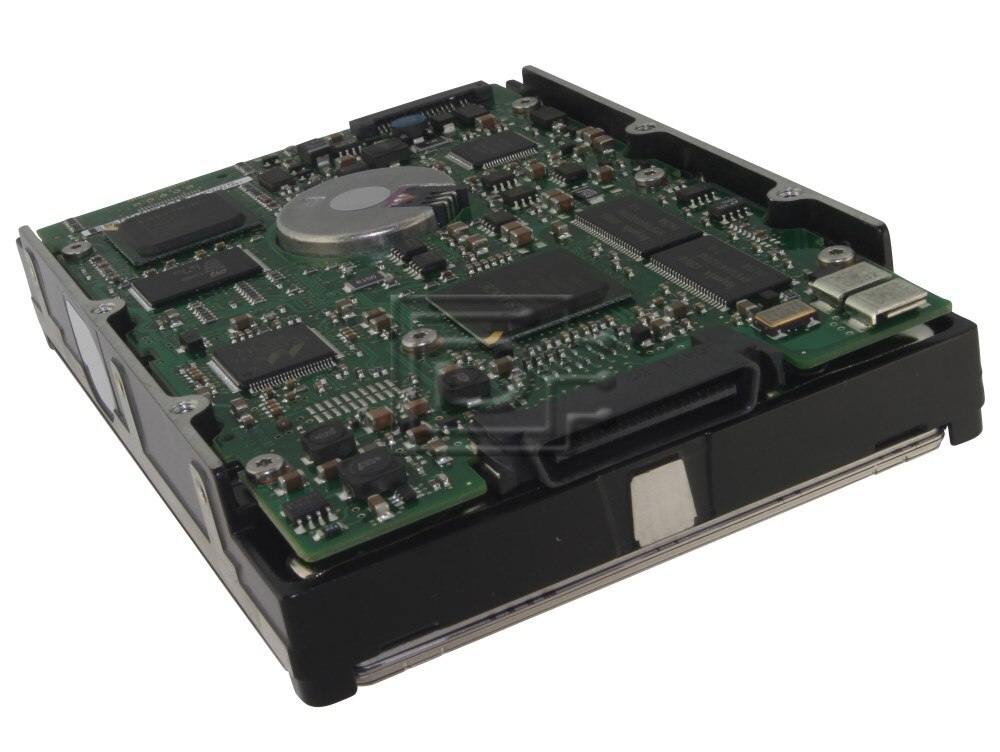

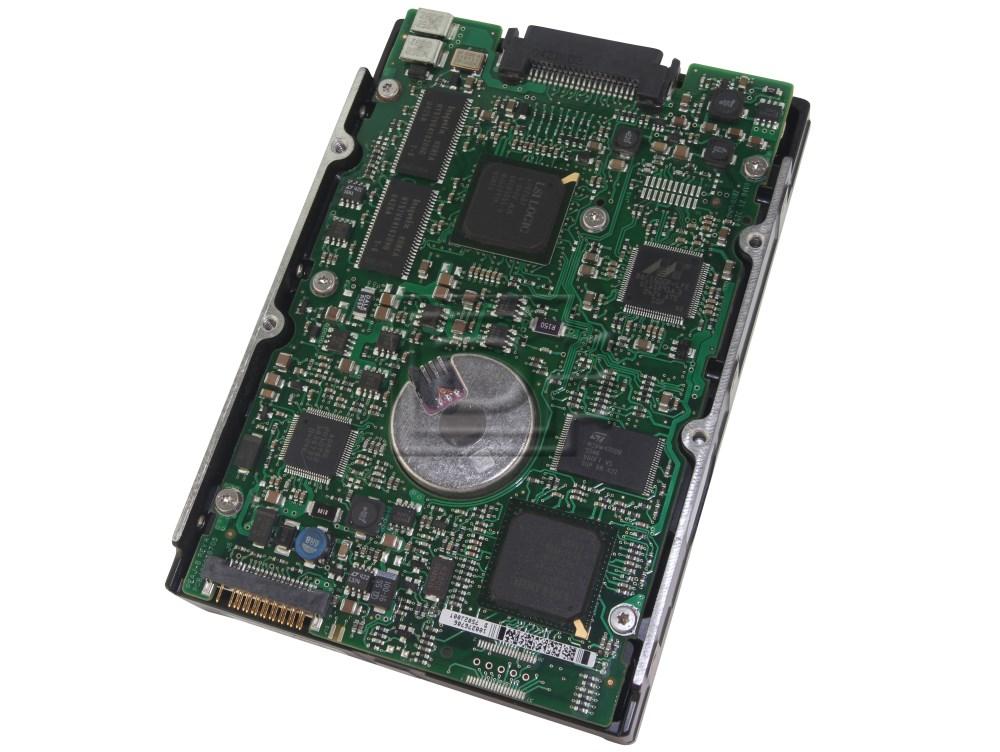

Seagate Cheetah 15K.3 ST336753FCV 36GB 15K 2Gbps 40pin Fibre / Fiber Channel Hard Drive - Refurbished OEM
Alt MPN: 9U9007-024
The Cheetah 15K.3 is the lowest cost of ownership 15K drive, and the lowest cost-per-I/O disc drive ever. It is fast, cool, and quiet, and has the highest reliability rating in the industry.
3D Defense System
The most comprehensive drive protection system in the industry, consisting of Drive Defense, Data Defense and Diagnostic Defense.
Seagate's revolutionary packaging protects the drive from external shock.
Seagate's Advanced Multidrive System optimizes the drive for maximum I/O performance in Multidrive environments.
Just-In-Time minimizes actuator impact on power, vibration and acoustics.
Up to 320-Mbyte/sec transfer rate; Includes Packetization and QAS. Backward compatible with Ultra160. Cables 15 devices, up to 12 meters.
15K RPM spindle speed
Delivers more I/O's per second than 10K, and faster sustained transfer rates, enabling the same high performance to be met with fewer drives.
This drive is compatible with any of our Fibre Channel hot-swap trays.
SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2002 ST-336753FC Fibre Channel FC-AL, Dual Port (Cheetah 15K.3) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º ST-336753FC ÈÍÍÍÍÍÍÍÍÍÍÍ¼ 40 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄÄ³ÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄ20/) BOTTOM Notes on 40 pin I/O connector: +12v = pins 2, 3, 4, 21 +5v = pins 19, 20, 40 GND = pins 6, 22, 23, 26, 29, 32, 35 Mating FC connector: AMP US p/n: 787317-1 straight-in, Male 40-pin ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-336753FC) ÈÍÍÍÍÍÍÍÍÍÍÍÍ¼ Reserved. Shipped with cover installed. Do not remove. Do not install jumpers ³ ÚÂÄÄÄÄ Reserved ³ ³³ÚÄÄÄ Fault LED ³ ³³³ÚÄÄ Port B Bypass LED ³ ³³³³ÚÄ Port A Bypass LED TOP (HDA) ÕØÍÍÍ¸ ³³³³1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍµ::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍÍ¾³³³ÀÅÙ ³ J6 ³³³ ÀÄÄ Ground LED ÄÙ ³³ÀÄÄÄÄ Active LED ³ÀÄÄÄÄÄ Ground ÀÄÄÄÄÄÄ Remote LED (pin-11 +5v) ST336753FC drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination. ST-336753FC UNFORMATTED CAPACITY (GB) ________________48.2 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________572 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________125,240 CYLINDERS ________________________________31,310 user HEADS ______PHYSICAL______________________4 DISCS (2.5 in) ___________________________2 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML INTERNAL TRANSFER RATE (mbits/sec)________632 to 891 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_56.1 to 86.0 EXTERNAL TRANSFER RATE (mbyte/sec/port)___106 Sync SPINDLE SPEED (RPM) ______________________15k AVERAGE LATENCY (mSEC) ___________________2.0 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________377,770 avg SECTORS PER DRIVE ________________________71,687,372 TPI (TRACKS PER INCH) ____________________64,000 BPI (PEAK KBITS PER INCH) ________________533 AVERAGE ACCESS (ms read/write)____________3.6/4.0 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.20/0.40 MAX FULL SEEK (ms read/write) ____________6.5/6.9 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________40 nonoperating ____________________75/250/100 ACOUSTICS (Bels typical, sound power) ____3.5 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.5/35.8 POWER REQUIREMENTS: +12V START-UP (amps) _1.50 +12V TYPICAL (amps) __0.52 idle +5V START-UP (amps) __1.01 +5V TYPICAL (amps) ___0.86 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.85/0.842 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (10/09/2002)
Alternate MPNs: 9U9007-024
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
