Seagate Part #/MPN: ST3300657SS
DiscTech Item #: SGT-ST3300657SS-RF-OE-DEL
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 122 - 204
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

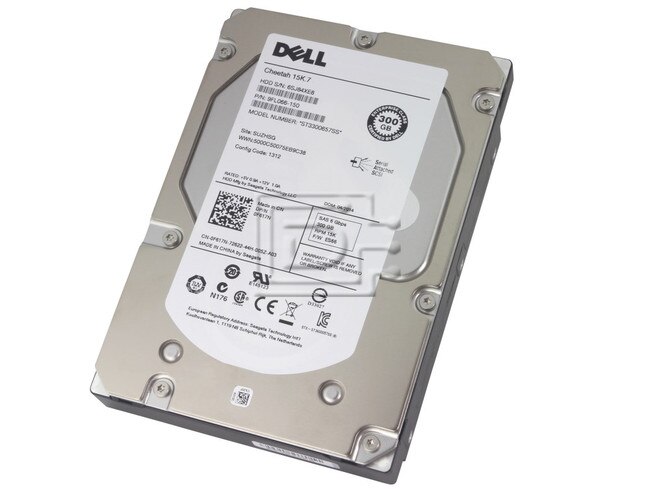

Seagate Cheetah 15K.7 ST3300657SS 300GB 15K 6.0Gbps Serial Attached SCSI / SAS Hard Drive - Refurbished
The higher performance and capacity of Seagate Cheetah 15K.7 drives reduce storage costs per GB and increase capacity per watt. The drive has the industry’s highest reliability rating, reducing drive replacement costs. The Cheetah 15K.7 drive includes Seagate PowerTrim™ technology, which dynamically optimizes drive power consumption at all levels of activity.
Key Features and Benefits
- Highest-performance 3.5-inch Tier 1 drive
- Highest-capacity Tier 1 drive (600 GB)
- Highest reliability rating in the industry
- Seagate PowerTrim technology dynamically reduces power usage.
- Supports 6-Gb/s SAS 2.0 and 4-Gb/s FC
The Seagate® Cheetah® 15K.7 is the highest performing, highest capacity 3.5-inch mission critical hard drive with best-in-class reliability for Tier 1 storage environments. This industry-leading enterprise drive reduces storage costs per GB while increasing capacity per watt. Drive power consumption is dynamically optimized at all levels of activity with Seagate’s exclusive PowerTrim technology. Cut IT drive retirement costs.
- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 204 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces.
Alt/PN: CN-0F617N-72622-1AN-038J-A01 0F617N F617N 9FL066-150 FFMX3 0FFMX3 M525M 0M525M
This drive is compatible with all SAS compatible servers including:
Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605 Servers and PowerVault MD1000, MD3000, NF100, NF500, NF600 Storage Arrays.
HP / Compaq Proliant DL140 G2 , DL140 G3 , DL145 G2 , DL145 G3 , DL160 G5 , DL160 G5p , DL165 G5 , DL180 G5 , DL185 G5, DL320 G3 , DL320 G4 , DL320 G5 , DL320 G5p , DL360 G4p , DL380 G5 , ML110 G3 , ML150 G3 , ML150 G5 , ML310 G2 , ML310 G3 , ML310 G4 , ML310 G5 , ML350 G4p , ML350 G5.
DPN: 0F617N / F617N / FFMX3 / 0FFMX3 / M525M / 0M525M
|Model Name||Cheetah 15K.7|
|Formatted Capacity||300 Gbytes|
|Rotational Speed||15,000 rpm|
|External (I/O) Transfer Rate (max)||6.0Gbits/sec|
|Average Seek Time, Read||3.4 msec typical|
|Average Seek Time, Write||3.9 msec typical|
|Average Latency||2 msec|
|Default Buffer (cache) Size||16 Mbytes|
|Operating Temperature (max)||55 deg C|
|Operating Temperature (min)||5 deg C|
|Nonoperating Temperature (max)||70 deg C|
|Nonoperating Temperature (min)||-40 deg C|
|MTBF (Hours)||1,600,000 hours|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: CN-0F617N-72622-1AN-038J-A01 0F617N F617N 9FL066-150 FFMX3 0FFMX3 M525M 0M525M
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
