Seagate Part #/MPN: ST980313AS
DiscTech Item #: SGT-ST980313AS-RF-OE-DEL
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 11 / 13
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

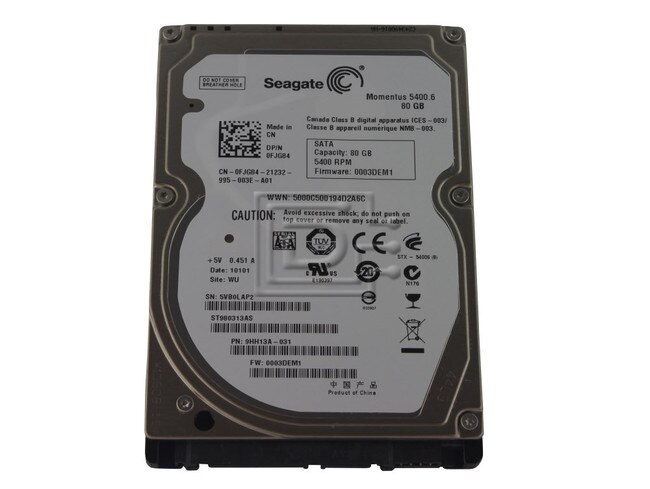

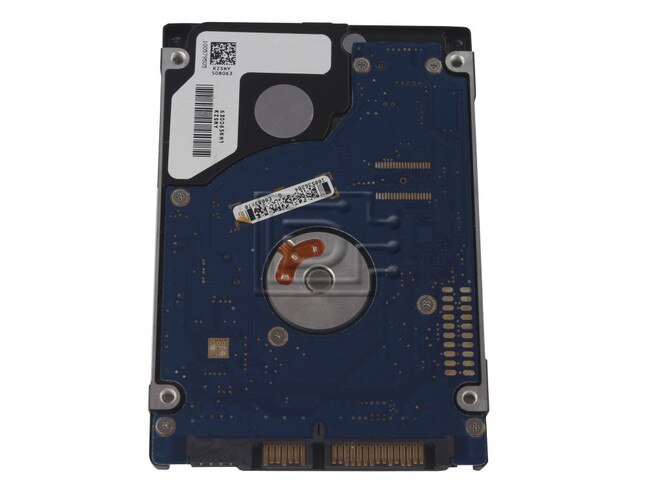

Seagate Momentus 5400.6 ST980313AS 80GB 5.4K 2.5-inch SATA Hard Drive - Refurbished OEM
These drives provide the following key features:
• 5,400-RPM spindle speed.
• 8-Mbyte buffer.
• Free Fall Protection (on ST9500325ASG, ST9320325ASG, ST9250315ASG, ST9160314ASG,
ST9120315ASG, and ST980313ASG models only)
• Quiet operation. Fluid Dynamic Bearing (FDB) motor.
• High instantaneous (burst) data-transfer rates (up to 3.0 Gbits/sec).
• Perpendicular recording technology.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Native Command Queuing (NCQ) with command ordering.
• Full-track multiple-sector transfer capability without local processor intervention.
• 1,000 Gs nonoperating shock and 350 Gs of operating shock.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense, offers the
industry’s most comprehensive protection for disc drives.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Support for Read Multiple and Write Multiple commands.
Dell p/n: FJG84 0FJG84
This drive is compatible with any laptop/computer that supports 2.5" SATA hard drives.
|Product Line||Seagate Momentus|
|Max Operating Temperature||20°C|
|Min Operating Temperature||0 °C|
|Shock Tolerance Operating||350 G @ 2 ms|
|Shock Tolerance Storage||800 G @ 1 ms|
|Connector Type||7 pin Serial ATA|
|Interface (Storage)||Serial ATA-300|
|Average Latency||5.6 ms|
|Average Seek Time||14 ms|
|Buffer Size||8 MB|
|Data Transfer Rate||150 MBps|
|Form Factor||2.5 x .374|
|Hard Drive Type||Internal hard drive|
|Interface Type||Serial ATA-300|
|Non-Recoverable Errors||1 per 10^14|
|Spindle Speed||5400 rpm|
|Dimensions & Weight|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: FJG84 0FJG84
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
