Seagate Part #/MPN: ST336704FCV
DiscTech Item #: SGT-ST336704FCV-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 36GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 35.5
Average Seek Time: 5.2/6
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 4MB

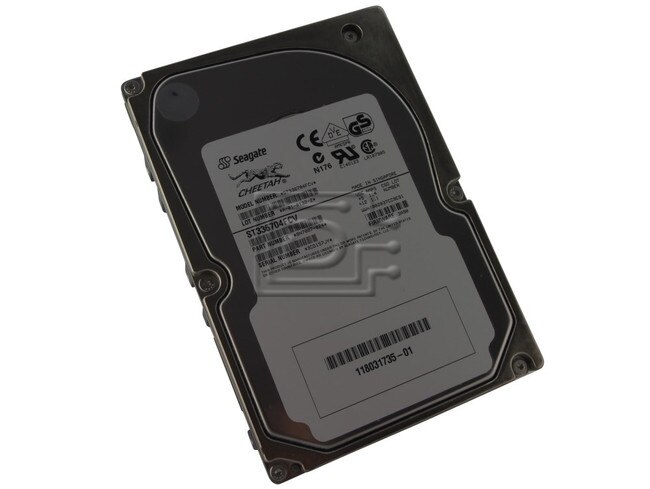

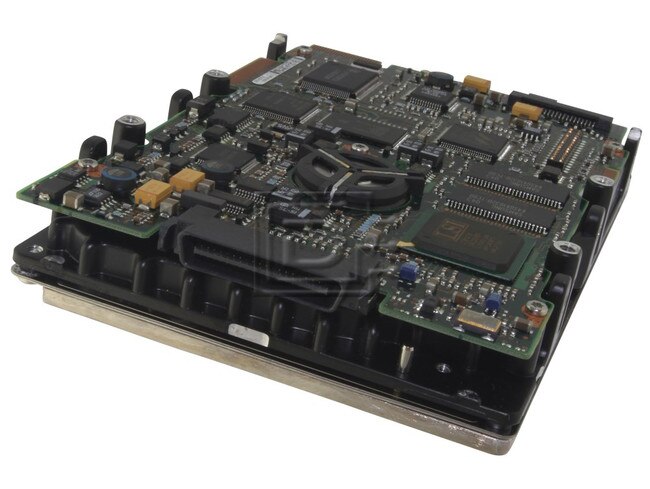

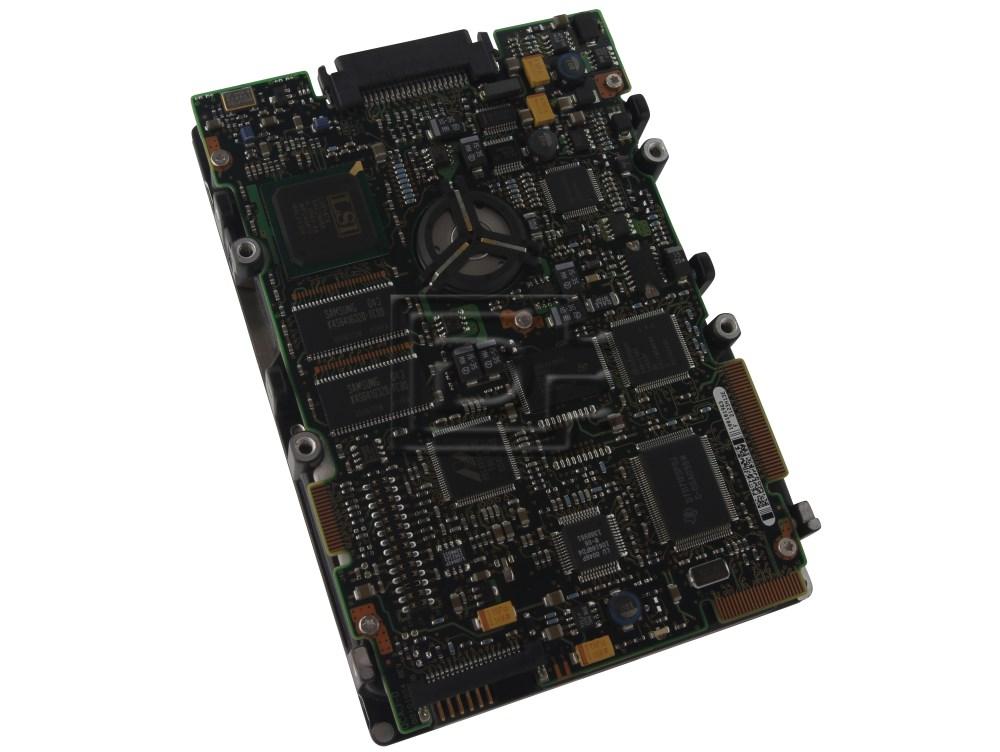

Seagate Cheetah ST336704FCV 36LP 36GB 10K 2Gbps 40pin Fibre / Fiber Channel Hard Drive - Refurbished
Alt MPN: 9N7007-024
Cheetah 36LP FCV drives have the following standard features:
- Integrated dual port FC-AL controller
- Concurrent dual port transfers
- Support for FC arbitrated loop, private and public attachment
- Differential copper FC drivers and receivers
- Downloadable firmware using the FC-AL interface
- Supports SCSI enclosure services via interface connector
- 128-deep task set (queue)
- Supports up to 32 initiators
- Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands.
Jumpers are not used on the drive. - Fibre Channel worldwide name uniquely identifies the drive and each port
- User-selectable logical block size (512 to 704 bytes per logical block)
- Selectable frame sizes from 128 to 2,112 bytes
- Industry standard 3.5-inch low profile form factor dimensions
- Programmable logical block reallocation scheme
- Flawed logical block reallocation at format time
- Programmable auto write and read reallocation
- Reed-Solomon error correction code
- Sealed head and disc assembly (HDA)
- No preventive maintenance or adjustments required
- Dedicated head landing zone
- Automatic shipping lock
- Embedded Grey Code track address to eliminate seek errors
- Self-diagnostics performed at power on
- 1:1 interleave
- Zone bit recording (ZBR)
- Vertical, horizontal, or top down mounting
- Dynamic spindle brake
- 4,096 Kbyte data buffer (16,384 Kbytes on FCV drives). See Section 4.5.
- Embedded servo design
- Reallocation of defects on command (Post Format)
- Fibre Channel interface transports SCSI protocol
Technical Specifications | ||
Description | ||
Model number | ST336704FCV | |
Model Name | Cheetah 36LP | |
Form Factor(width) | 3.5" | |
Form Factor(height) | low-profile | |
Physical Specifications | ||
Height | 25.4 mm | |
Width | 101.6 mm | |
Length | 146 mm | |
Weight | 0.6 kg | |
Capacity/Interface | ||
Formatted Capacity | 36.7 Gbytes, formatted | |
Interface Type | 40-pin SCA | |
Performance | ||
Transfer Rates | ||
Internal Transfer Rate (min) | 28 Mbits/sec | |
Internal Transfer Rate (max) | 427 Mbits/sec | |
Formatted Int Transfer Rate (min) | 26.700000 Mbits/sec | |
Formatted Int Transfer Rate (max) | 40.200000 Mbits/sec | |
External (I/O) Transfer Rate (max) | 200 MBytes/sec | |
Avg Formatted Transfer Rate | 35.5 MBytes/sec | |
Seek Times | ||
Average Seek Time, Read | 5.2 msec typical | |
Average Seek Time, Write | 6 msec typical | |
Track-to-Track Seek, Read | 0.6 msec typical | |
Track-to-Track Seek, Write | 0.9 msec typical | |
Average Latency | 2.99 msec | |
Other | ||
Default Buffer (cache) Size | 4,096 Kbytes | |
Spindle Speed | 10,000 RPM | |
Configuration | ||
Number of Discs (physical) | 6 | |
Number of Heads (physical) | 12 | |
Total Cylinders | 14,100 | |
Bytes Per Sector | 512 | |
Recording Components | ||
Recording Method | NPV | |
Electrical Requirements | ||
Current | ||
Power | ||
Idle Power (typ) | 12.5 watts | |
Environmental Specifications | ||
Shock and Vibration | ||
Max Operating Shock (11-msec) | 10 Gs | |
Max Nonoperating Shock (2-msec) | 200 Gs | |
Operating Vibration (max) | 0.5 Gs | |
Nonoperating Vibration (max) | 2 Gs | |
Temperature and Humidity | ||
Operating Temperature (max) | 55 deg C | |
Operating Temperature (min) | 5 deg C | |
Nonoperating Temperature (max) | 70 deg C | |
Nonoperating Temperature (min) | -40 deg C | |
Altitude | ||
Acoustics | ||
Acoustics, Idle (sound power, typ) | 3.9 Bels | |
Reliability | ||
MTBF (Hours) | 1,200,000 hours | |
Recoverable Read Errors | 10 per 1012 bits read | |
Nonrecoverable Read Errors | 1 per 1015 bits read | |
Seek Errors | 1 per 108 bits read | |
Supports S.M.A.R.T. | Yes | |
Service Life | 5 year(s) | |
Limited Warranty Period | 5 year(s) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9N7007-024
Weight: 1.8 lb
Warranty: 1 Year Manufacturer
