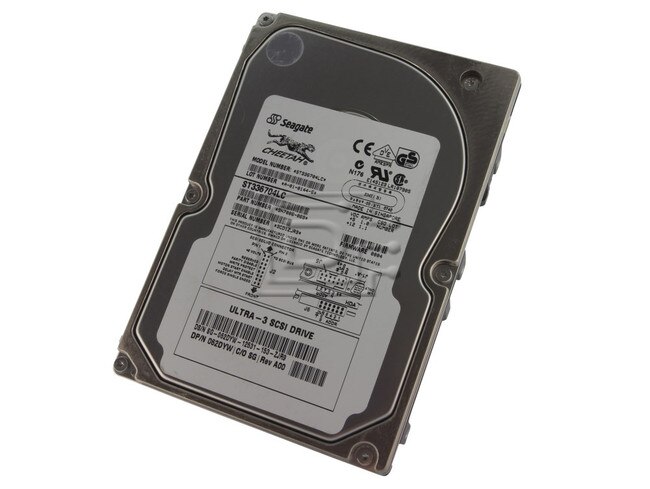

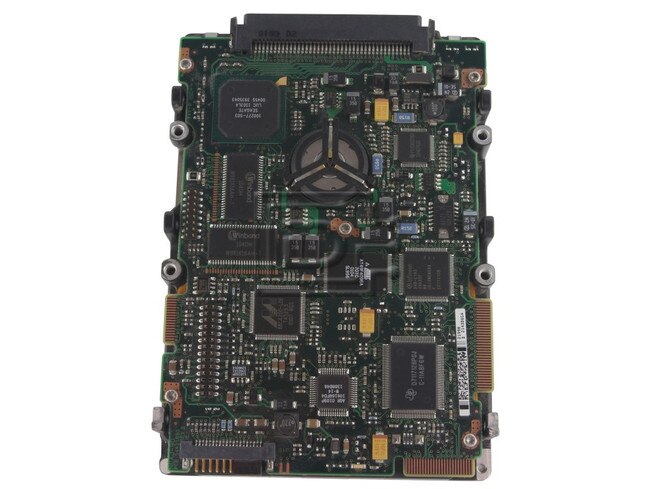

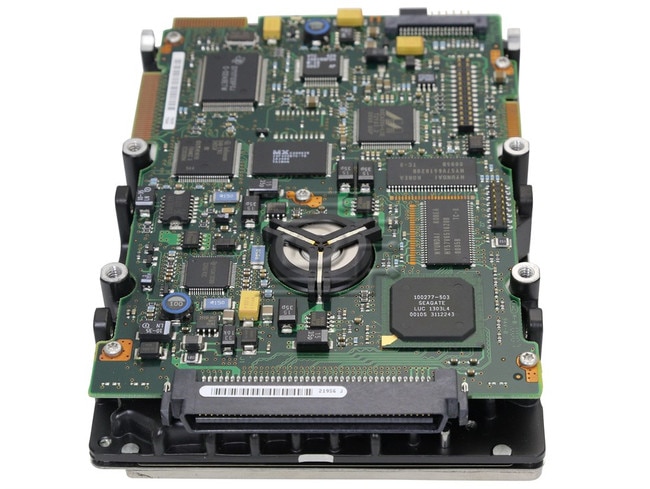

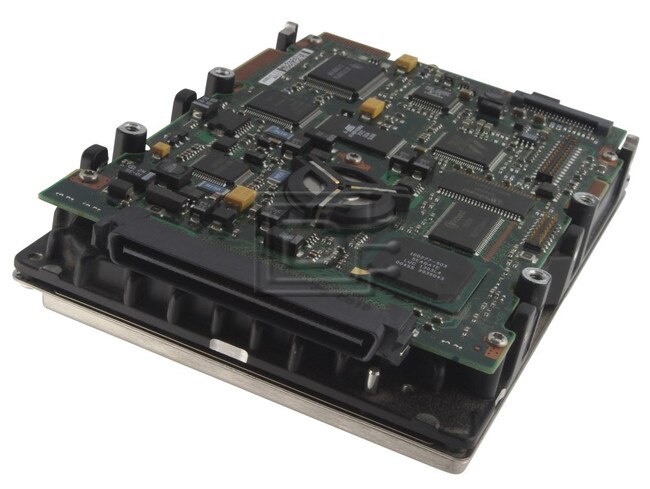

Seagate ST336704LCV SCSI Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST336704LCV

DiscTech Item #: SGT-ST336704LCV-RF-OE


$35.00
$35.00

Enterprise Grade

Capacity: 36GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 40

Average Seek Time: 5.4 / 6.2

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

On-Board Cache: 16MB

Seagate Cheetah 36LP 36GB 10K U160 80pin SCA-2 SCSI Hard Drive ST336704LCV - Refurbished

The Cheetah 36LP family has the following standard features:



Integrated Ultra160 SCSI controller

Multimode SCSI drivers and receiverssingle-ended (SE) and low voltage differential (LVD)

16 bit I/O data bus

Asynchronous and synchronous data transfer protocol (supports Ultra160 transfer rate)

Firmware downloadable via SCSI interface

Selectable even byte sector sizes from 512 to 2,064 bytes/sector

Programmable sector reallocation scheme

Flawed sector reallocation at format time

Programmable auto write and read reallocation

Reallocation of defects on command (post format)

ECC maximum burst correction length of 240 bits with a guaranteed burst correction length of 233 bits.

Sealed head and disc assembly

No preventative maintenance or adjustment required

Dedicated head landing zone

Embedded servo design

Self diagnostics performed when power is applied to the drive

Zoned bit recording (ZBR)

Vertical, horizontal, or top down mounting

Dynamic spindle brake

4,096 kbyte data buffer (16,384 kbytes on LWV and LCV models)

Hot plug compatibility (Section 9.6.4.2 lists proper host connector needed) for LC and LCV model drives

Drive Self Test (DST)

Supports SCSI bus fairness

Media characteristics



The media used on the drive has a diameter of approximately 3.3 inches (84 mm). The aluminum substrate is

coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability

and environmental protection.

Performance



Supports industry standard Ultra3 SCSI interface

Programmable multi-segmentable cache buffer (see Section 4.5)

10,033 RPM spindle. Average latency = 2.99 ms

Command queuing of up to 64 commands

Background processing of queue

Supports start and stop commands (spindle stops spinning)

Reliability



1,200,000 hour MTBF

LSI circuitry

Balanced low mass rotary voice coil actuator

Incorporates industry-standard Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.)


Compatibility:

The SCA-2 80-pin version of these low-profile 1" of these SCSI hard drives are compatible with all of the following systems (this list is not all inclusive):

Dell® PowerEdge servers 800, 1500, 1550, 1600, 1600SC, 1650, 1750, 1800, 1850, 2300,2350, 2400, 2450, 2500, 2500SC, 2550, 2600, 2650, 2800, 2850, 3250, 4300, 4350, 4400, 4600, 6300, 6350, 6400, 6450, 6600, 6650, 6800, 6850, 7150 & 8450 Series Servers and Dell Powervault® 200S, 201S, 210S, 211S, 220S, 221S, 220F, 221F, 224F, 650F, 660F, 750N & 755N Arrays & PowerApp 120.

HP / Compaq Proliant® server CL-1850, DL-320, DL-380, DL-580, DL-590/64, DL-760, ML-350, ML-330, ML-350, ML-370, ML-380, ML-530, ML-570, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. Additionally 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays

IBM xServer eSeries & Netfinity Servers x220, x230, x225, x232, x235, x240, x250, x300, x320, x330, x335, x340, x345, x360, 3500, 4500R, 5100, 5600, 6000R, 7100, 7600 & 8500. Also compatible with x206, x225, x226, x235, x236, x335, x336, x345, x346, x365, x385, x400, x455.



 SEAGATE TECHNOLOGY, INC. 1-800-SEAGATE http://www.seagate.com (C)opyright 1999 ST-336704LW Ultra160 SCSI Wide (Cheetah 36LP, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336704LW/LWV only) ÈÍÍÍÍÍÍÍÍÍÍͼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)ͳ::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄijÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336704LC/LCV only) ÈÍÍÍÍÍÍÍÍÍÍͼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-336704LW/LC) ÈÍÍÍÍÍÍÍÍÍÍͼ FRONT TOP (HDA) J2 87654321 Õ͸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍ͵J1 DRIVE BOTTOM :::::::: Ô; ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-336704LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍ͸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-336704LW UNFORMATTED CAPACITY (GB) ________________43.7 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________423 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________169,200 CYLINDERS ________________________________14,100 user HEADS ______PHYSICAL______________________12 DISCS (3.0 in) ___________________________6 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________280 to 427 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_26.7 to 40.2 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/160 Sync SPINDLE SPEED (RPM) ______________________10,033 AVERAGE LATENCY (mSEC) ___________________2.99 BUFFER (/optional LWV and LCV) ___________4MB/16MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________215,248 SECTORS PER DRIVE ________________________71,687,369 TPI (TRACKS PER INCH) ____________________18,145 BPI (PEAK KBITS PER INCH) ________________334 AVERAGE ACCESS (ms read/write)____________5.4/6.2 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.8/1.1 MAX FULL SEEK (ms read/write) ____________11.2/11.9 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________10 abnormal ________________________40 nonoperating ____________________75/200/100 ACOUSTICS (Bels typical, sound power) ____3.9 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.91/37.2 POWER REQUIREMENTS: +12V START-UP (amps) _2.2 +12V TYPICAL (amps) __0.58 idle +5V START-UP (amps) __0.86 +5V TYPICAL (amps) ___0.79 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.3/0.589 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (12/21/99)

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
