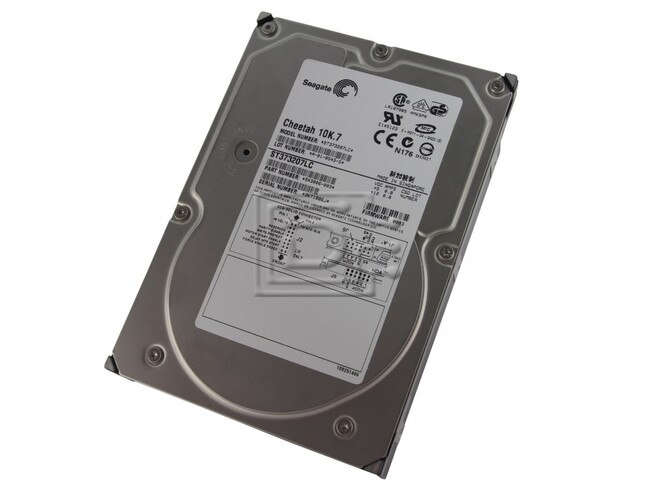

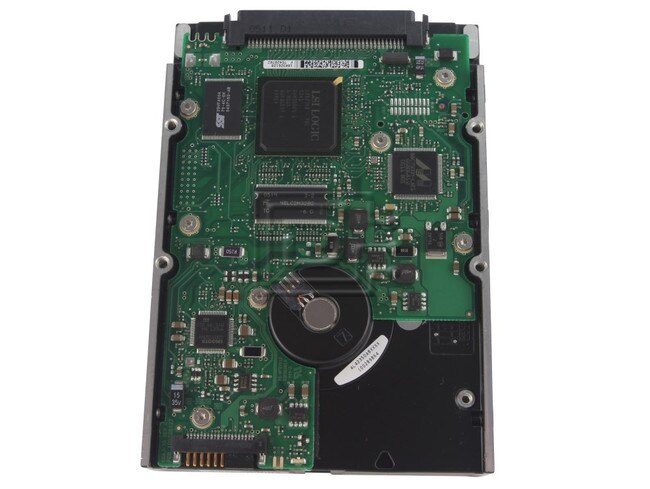

Seagate ST373207LC SCSI Hard Drives

(0) No Reviews Yet

Seagate Part #/MPN: ST373207LC

DiscTech Item #: SGT-ST373207LC-BN-5Y


$295.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$295.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

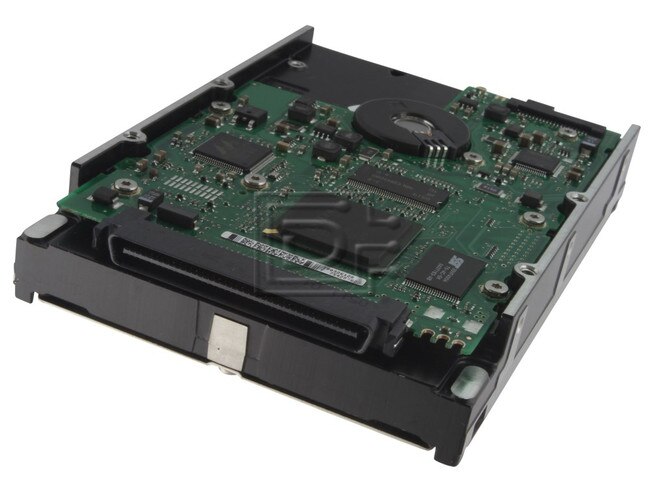

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 59.5

Average Seek Time: 4.7 / 5.3

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

 SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2005 ST-373207LW Ultra320 SCSI Wide (Cheetah 10K.7, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-373207LW only) ÈÍÍÍÍÍÍÍÍÍÍͼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)ͳ::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄijÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-373207LC only) ÈÍÍÍÍÍÍÍÍÍÍͼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-373207LW only) ÈÍÍÍÍÍÍÍÍÍÍͼ FRONT TOP (HDA) J2 87654321 Õ͸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍ͵J1 DRIVE BOTTOM :::::::: Ô; ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-373207LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍ͸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-373207LW Cheetah 10K.7 UNFORMATTED CAPACITY (GB) ________________ FORMATTED CAPACITY (GB) __________________73.4 AVERAGE SECTORS PER TRACK ________________789 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________181,548 CYLINDERS ________________________________90,774 user HEADS ______PHYSICAL______________________2 DISCS (2.5 in) ___________________________1 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML INTERNAL TRANSFER RATE (mbits/sec)________470 to 944 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_59 to 118 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/320 Sync SPINDLE SPEED (RPM) ______________________10,008 AVERAGE LATENCY (mSEC) ___________________3.00 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________556K avg SECTORS PER DRIVE ________________________143,374,744 TPI (TRACKS PER INCH) ____________________105,000 BPI (PEAK KBITS PER INCH) ________________658 AVERAGE ACCESS (ms read/write)____________4.7/5.3 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.2/0.5 MAX FULL SEEK (ms read/write) ____________9.5/10.3 ANNUALIZED FAILURE RATE (AFR) ____________0.62% SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15/60/ abnormal ________________________40// nonoperating ____________________75/225/120 ACOUSTICS (Bels typical, sound power) ____3.3 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______6.78/23.14 POWER REQUIREMENTS: +12V START-UP (amps) _1.56 +12V TYPICAL (amps) __0.34 idle +5V START-UP (amps) __0.77 +5V TYPICAL (amps) ___0.54 idle IDLE (watts) _________ Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.6/0.726 ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (04/14/2005)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9X3006-105

Weight: 1.8

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
