Seagate Part #/MPN: ST39102FC
DiscTech Item #: SGT-ST39102FC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 9GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 152-231
Average Seek Time: 2.99
Electrical Interface: FC-AL - 2Gbps

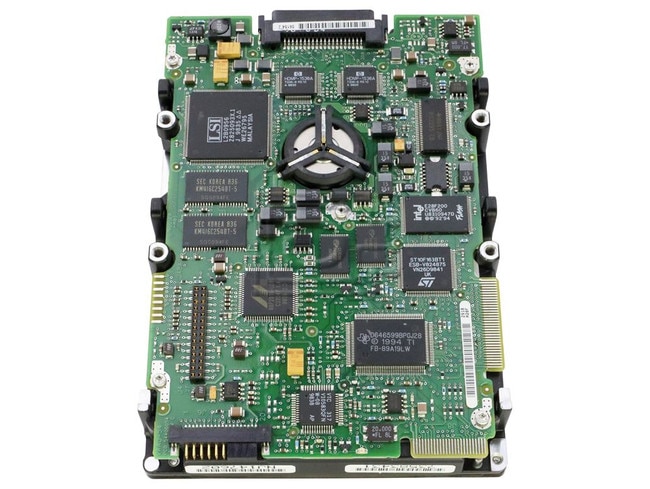

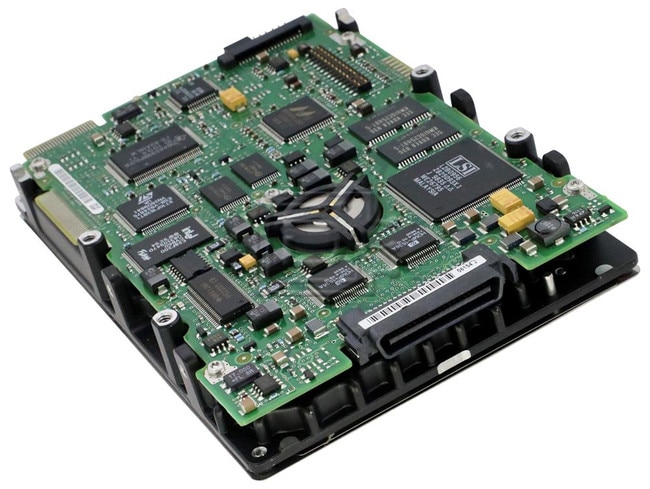

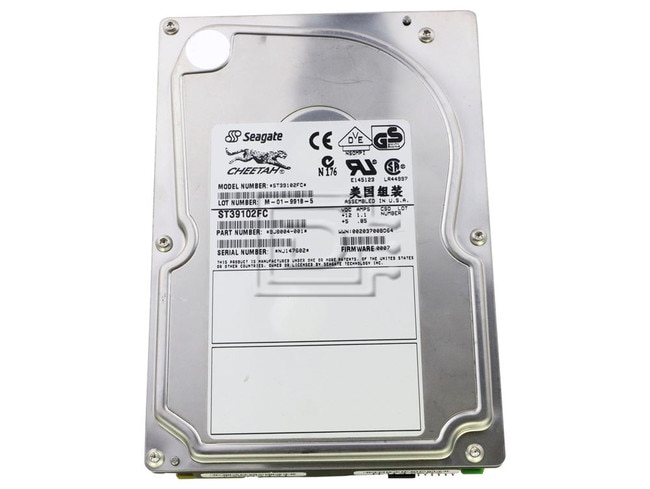

Seagate Cheetah 9LP FC ST39102FC / 9J8004-025 9GB 3.5in 10K RPM FC-AL HDD - Brand New
Seagate Cheetah 9LP FC ST39102FC 9GB 3.5" 2Gb/s 10,000 RPM Fibre / Fiber Channel - Internal Arbitrated Loop ASA II Hard Disk Drive - Refurbished - Brand New
Alt Model Number: 9J8004-025
Cheetah 9LP FC General Description
CheetahTM 9LP FC drives are random access storage devices designed to support the Fibre Channel Arbitrated Loop (FC-AL) and SCSI Fibre Channel Protocol. ST39102FC drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard.
You can view the Fibre Channel interface as a transport vehicle for the supported command set (ST39102FC drives use the SCSI command set). In fact, the Fibre Channel interface is unaware of the content or meaning of the information being transported. It simply packs the SCSI commands in frames, transports them to the appropriate devices, and provides error checking to ensure that the information reaches its destination accurately
Cheetah 9LP FC drives have the following standard features:
- Integrated dual port FC-AL controller
- Concurrent dual port transfers
- Support for FC arbitrated loop and private and public loop attachment
- Differential copper FC drivers and receivers
- Downloadable firmware using the FC-AL interface
- Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands. Jumpers are not used on the drive
- Fibre Channel worldwide name uniquely identifies the drive and each port
- User-selectable logical block size (512 to 4,096 bytes per logical block)
- Selectable frame sizes from 128 to 2,112 bytes
- Industry standard 3.5-inch low profile form factor dimensions
- Programmable logical block reallocation scheme
- Flawed logical block reallocation at format time
- Programmable auto write and read reallocation
- Reed-Solomon error correction code
- Sealed head and disc assembly (HDA)
- No preventive maintenance or adjustments required
- Dedicated head landing zone
- Automatic shipping lock
- Embedded Grey Code track address to eliminate seek errors
- Self-diagnostics performed at power on
- 1:1 interleave
- Zone bit recording (ZBR)
- Vertical, horizontal, or top down mounting
- Dynamic spindle brake
- 1,024 Kbyte data buffer
- Embedded servo design
- Supports SCSI enclosure services via interface connector
- 128-deep task set (queue)
- Supports up to 32 initiators
- Reallocation of defects on command (Post Format)
- Fibre Channel interface transports SCSI protocol
- Supports SCSI Enclosure Services through the interface connector
Performance
- Programmable multi-segmentable cache buffer
- 106 Mbytes/sec maximum instantaneous data transfers per port
- 10,016 RPM spindle; average latency = 2.99 msec
- Command queuing of up to 128 commands
- Background processing of queue
- Supports start and stop commands
- Adaptive seek velocity; improved seek performance
Reliability
- 1,000,000 hour MTBF
- LSI circuitry
- Balanced low mass rotary voice coil actuator
- Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)
- Dithering
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in Fibre Channel Drive.
| Cheetah 9LP FC Disc Drive | |
|---|---|
| Model Number | ST39102FC |
| Alt Model Number | 9J8004-025 |
| INTERNAL DRIVE CHARACTERISTICS | |
| Drive capacity |
|
| Read/write data heads | 12 |
| Bytes per track | 104,840 - 159,008 Bytes (average, unformatted) |
| Bytes per surface | 939 Mbytes (unformatted) |
| Cylinders/tracks per surface | 6,962 Track (user accessible) |
| Tracks per inch | 8,962 TPI |
| Internal data rate | 152-231 Mbits/sec (variable with zone) |
| Disc rotation speed | 10,025 rpm (+ 0.5%) |
| Avg rotation latency | 2.99 msec |
| GENERAL PERFORMANCE CHARACTERISTICS | |
| Minimum sector interleave | 1 to 1 |
| Data buffer to/from disc media |
|
| Fivre Channel Interface maximum instantaneous transfer rate | 106 Mbytes/sec per port |
| Logical block size |
|
| Read/write consecutive secotors on a track | Yes |
| Overhead time for head switch in sequential mode | 0.8 msec |
| Overhead time for one track cylinder switch in sequetial mode | 1.2 msec (typical) |
| Average rotational latency | 2.99 msec |
| RELIABILITY SPECIFICATIONS | |
| Seek error rate | Less than 10 errors in 10^8 |
| Recoverable media error rate (using OEM default settings) |
|
| Unrecpvered media data |
|
| Miscorrected media data | Less than 1 sector om 10^21 bits tramnsferred |
| Interface error rate |
|
| MTBF | 1,000,000 hours |
| PHYSICAL/ELECTRICAL SPECIFICATIONS | |
| Typical seek power dissipation | 15.6 watts |
| Typical power dissipation under idle conditions | 13.7 watts |
| Maximum wet bulb temperature | 82°F (28°C) |
| Operating Temperature | 41°F to 122°F (5°C to 50°C) |
| Non-operating Temperature | –40°F to 158°F (–40°C to 70°C) |
| Relative humidity opererating | 5% to 95% relative humidity with a maximum gradient of 10% per hour. |
| Relative humidity Non-operating | 5% to 95% relative humidity. |
| Effective altitude (sea level) Operating | –1,000 to +10,000 feet (–305 to +3,048 meters) |
| Effective altitude (sea level) Non-operating | –1,000 to +40,000 feet (–305 to +12,210 meters) |
| Vibration Operating - normal | 5–350 Hz @ 0.5 G |
| Vibration Operating - abnormal | 15 minutes of duration at major resonant frequency 5–350 Hz @ 0.75 G |
| Vibration Non- operating |
|
| Air cleanliness | The drive is designed to operate in a typical office environment with minimal environmental control. |
| Acoustics | Sound power during idle mode shall be 4.4 bels typical when measured to ISO 7779 specification |
| Height | 1.000in/25.4mm |
| Width | 4.000in/101.6mm |
| Depth | 5.75in/146.05mm |
| Weight | 1.3pounds/0.588 kilograms |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9J8004-025
