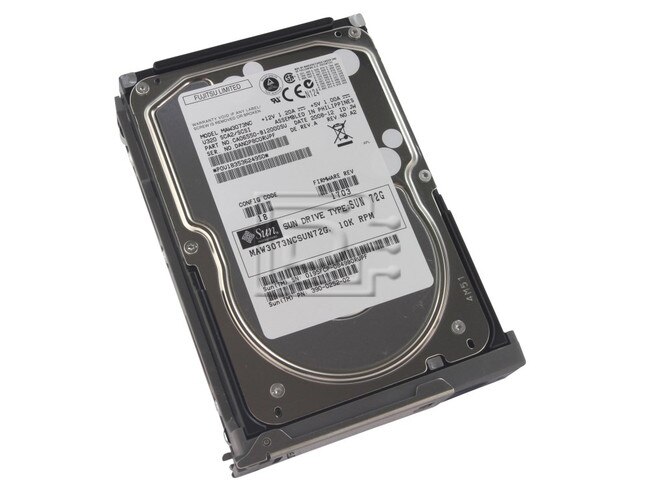

Sun X5245A SCSI Hard Drive

(0) No Reviews Yet

SUN MICROSYSTEMS Part #/MPN: X5245A

DiscTech Item #: SUN-X5245A-BN-OE


$89.00
$89.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.5 / 5.0

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

Part Number
X5245A / 540-5771
Formatted capacity/device
73.50 GB
Number of disks
3
Nubmer of heads
4
Number of cylinders
47,978
Formatted capacity/track (B)
272,896 to 479,232
Number of rotations min (rpm)
10,025 +_ 0.2%
Average latency time
2.99 msec
Seek Time (Read/Write)

Track to Track

Average

Full stroke

0.3 ms/0.5 ms

4.5 ms/5.0 ms

10.0 ms/11.0 ms

Start/stop time

Start time

Stop time

30 s typ. (60 s max.)
30 s typ.
Recording mode
32/34 MEEPRML
External dimensions

Height:

Width:

Depth:

25.4 mm

101.6mm

146.0 mm

Weight (max)
0.75 kg
Power consumption
9.6 W
Data transfer rate
Disk drive
64.1 to 107.86 MBs
SCSI
320 MB/s max.
Logical data block length
512 to 528 byte (Fixed length)
SCSI command specifications
SPI-4 (T10/1365D Rev.7), SAM-2(T10/1157D Rev .20),

SPC-2 (T10/1236D Rev. 20), SBC (T10/996D Rev. 8c
Data buffer
8 MB FIFO ring buffer
Acostic noise (Ready)
3.4 bels

Alternate MPNs: 540-5771 ST373307LSUN72G MAW3073NCSUN72G

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
