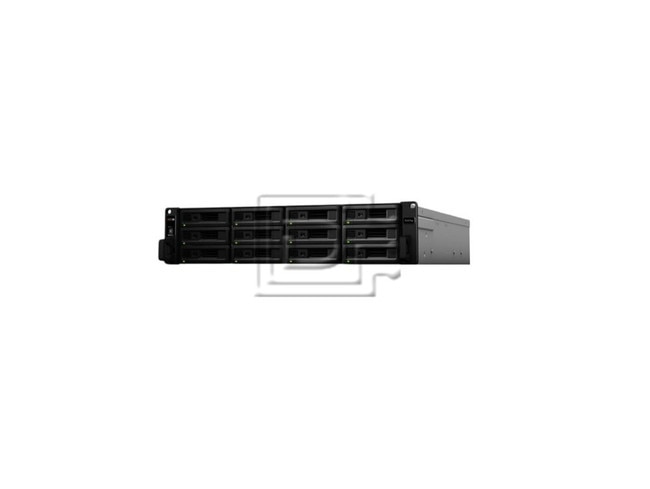

Synology RX1217SAS Expansion Unit

Synology Part #/MPN: RX1217SAS

DiscTech Item #: SYN-RX1217SAS-BN-5Y

$2,829.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:3 Year Manufacturer
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$2,829.00

Interface Types: SAS Serial Attached SCSI, SATA

Bays/Ports/Slots: 12

Wattage/VA: 500W

Voltage: 110-240V Multi

Synology RX1217SAS 12-Bay SAS / SATA Redundant NAS Expansion Unit - Brand New

Synology RX1217SAS 12-Bay SAS / Serial Attached SCSI and SATA / Serial ATA Redundant NAS / Network Attached Storage Expansion Unit - Brand New

Synology RX1217SAS NAS Expansion Unit includes...

  • 1x SAS IN-port
  • 1x SAS OUT-Port
  • 12 drive bays
  • accepts 3.5" SATA and SAS Hard Driv, 2.5" SAS Hard Drive and 2.5" SAS and SATA Solid State Drive

Expansion Unit RX1217sas
Effortless capacity expansion for Synology FlashStation and RackStation solutions on-the-fly.

12-bay 3.5"/2.5" SAS/SATA expansion
Easily add 12 additional drive bays to Synology FlashStation or RackStation1. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.

Maximum reliability design
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot swappable drive trays. Experience fast and secure rack cabinet installation with the optional sliding rail kit RKS1317

5 year warranty
Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.

Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity2. Know more about SRS.

Compatibility:

This Expansion Unit is compatible with:

FS3107FS2017RS18017xs+

Connecting to a Synology FlashStation FS3017 requires the optional FS3017 Expansion Card (FXC17) to be installed on the host device. FS3017 Expansion Card is sold separately.

SPECIFICATIONS
Model NumberRX1217SAS
HARDWARE SPECIFICATIONS
Applied Models
  • FS3017
  • FS2017
  • RS18017xs+
    • StorageDrive Bays
  • 12
    • Compatible Drive Type
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD

    •  Maximum Internal Raw Capacity
  • 168 TB (14 TB drive x 12) (Capacity may vary by RAID types)

    • Hot Swappable Drive
  • Yes

    • RAID Management through Synology DSM
  • Yes
    • External PortsSAS IN-port
  • 1

    • SAS OUT-port
  • 1
    • AppearanceSize (Height x Width x Depth)
  • 88 mm x 482 mm x 724 mm

    • Weight
  • 18 kg

    • Rack Installation Support
  • 4-post 19" rack (Synology Rail Kit - RKS1317)
    • PowerPower Recovery
  • Synchronized with the Synology RackStation

    • Power Supply Unit / Adapter
  • 2 x 500W

    •  AC Input Power Voltage
  • 100V to 240V AC

    • Power Frequency
  • 50/60 Hz, Single Phase

    • Power Consumption
  • 132.7 W (Access)
  • 89.3 W (HDD Hibernation)

    •  British Thermal Unit
  • 452.79 BTU/hr (Access)
  • 304.7 BTU/hr (HDD Hibernation)

    • Redundant Power Supply (for RP model)
  • Yes
    • TemperatureOperating Temperature
  • 5°C to 35°C
  • 40°F to 95°F

    • Storage Temperature
  • -20°C to 60°C
  • -5°F to 140°F

    • Relative Humidity
  • 5% to 95% RH
    • OthersSystem Fan
  • 60 mm x 60 mm x 4 pcs

    • Easy Replacement System Fan
  • Yes

    • Noise Level
  • 60.9 dB(A)

    • Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
    • Environment & PackagingEnvironment
  • RoHS Compliant

    • Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: MiniSAS-HD X 1
  • Quick Installation Guide X 1

    • Optional Accessories
  • Synology Rail Kit Sliding - RKS1317
    • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 41 lb
