Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
U Height: 1U
Wattage/VA: 22W
Voltage: 110-240V Multi
Color: Black

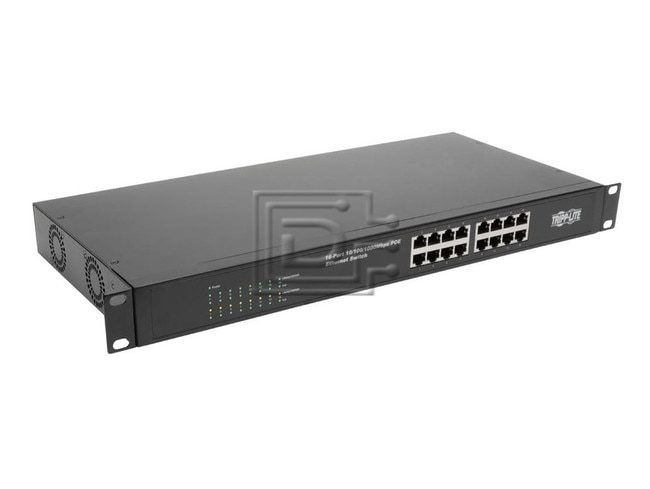

Tripp Lite Unmanaged NG16POE 16-Port 10/100/1000 Mbps Gigabit Ethernet Rack-Mount / Desktop Switch w/ PoE+ - Brand New
Tripp Lite Unmanaged NG16POE 16-Port 10/100/1000 Mbps Gigabit Ethernet Rack-Mount / Desktop Switch with PoE+ / Power Over Ethernet Plus in Metal Casing - Brand New
16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE+, 230W, Metal Housing
Ethernet switch provides Gigabit network connection for multiple devices. Recommended for small offices, workgroups, creative workspaces and security applications using IP cameras and other PoE-compatible devices.
Overview
The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 230W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.
This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It’s plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.
The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
Features
Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications
- 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
- Auto-negotiable 10/100/1000 Mbps
- Automatic MDI/MDIX cross-over detection
- 32 Gbps switching capacity (2 Gbps per port with full duplex)
- LEDs indicate power, connection, activity and PoE status per port
- Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
230W Total PoE+ Budget
- Up to 30W PoE per port
- Each port supplies PoE+ power to connected devices via network cable
Heavy-Duty metal Housing
- Detachable 6 ft. AC power cord with NEMA 5-15P plug
- Plug-and-play—no configuration necessary
Versatile Installation Options
- Includes rubber feet for secure placement on flat desktop surface
- Mounts in 1U of EIA-standard 19 in. rack with included brackets
- Grounding lug included
Highlights
- 16 auto-negotiable 10/100/1000 Mbps PoE+ RJ45 ports
- Up to 30W PoE+ per port; 230W total PoE budget
- Supports auto MDI/MDIX crossover function
- 2 Gbps switching capacity per port with full duplex
- Plug-and-play with no configuration required
Package Includes
- NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch
- Detachable AC power cord with NEMA 5-15P plug, 6 ft.
- (2) Rack-mounting brackets
- (8) Screws
- (4) Rubber feet
- Owner’s manual
Compatibility:
This Unmanaged Network Switch is designed for Home/Small Offices, Workgroups and Security Applications
| TRIPP LITE GIGABIT ETHERNET SWITCHES | |
|---|---|
| Model Number | NG16POE |
| INPUT | |
| Electrical Consumption | 400W maximum power consumption (at 100% switching capacity with 230W POE consumption) |
| Nominal Input Voltage Description | Accepts 100-240V AC nominal input |
| Plug Type | Includes NEMA 5-15P input plug/td> |
| Input Frequency | 50/60 Hz |
| Input Cord Length (ft) | 6 |
| USER INTERFACE, ALERTS & CONTROLS | |
| LED Indicators | |
| PHYSICAL | |
| Primary Form Factor | |
| Rack Height | 1U |
| Shipping Dimensions (hwd/in) | 3.46 x 21.85 x 11.61 |
| Shipping Weight (lbs) | 8.56 |
| Unit Dimensions (hwd/in) | 1.73 x 17.4 x 8.19 |
| Unit Weight (lbs) | 6.17 |
| Color | Black |
| Form Factors Supported | |
| ENVIRONMENTAL | |
| Storage Temperature Range | |
| Realative Humidity | 10 to 90% (non-condensing) |
| Operating Elevation (ft) | Up to 10,000 |
| Operating Temperature | |
| Operating Elevation (m) | Up to 3000 |
| CONNECTIONS | |
| Network Switch Ports | (16) 10/100/1000 (RJ45) |
| PoE Supported Ports | 16 |
| PoE Capability | 30W (802.3at) |
| PoE Power Budget (Watts) | 230 |
| YES/NO WEB CATEGORY PAGE FILTERS | |
| PoE Compliant | Yes |
| SPECIAL FEATURES | |
| Grounding Lug | Includes back panel grounding lug |
| CERTIFICATIONS | |
| Compliant Standards | |
| Approvals | |
