Western Digital Part #/MPN: WD1001FYYG
DiscTech Item #: WDC-WD1001FYYG-BN-5Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 170
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 32MB

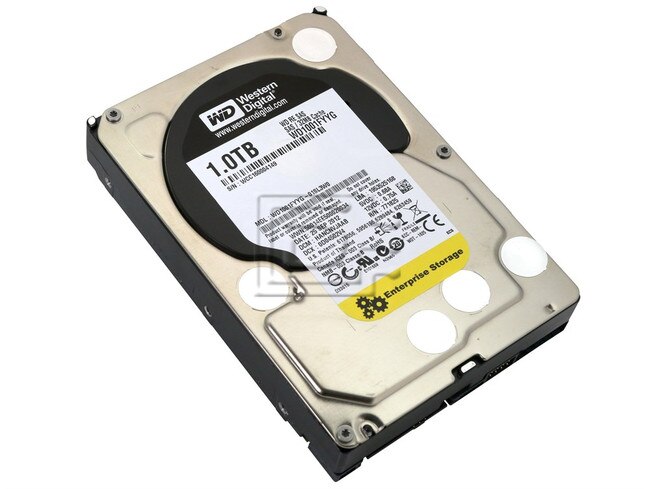

Western Digital RE WD1001FYYG 1TB 7.2K 3.5" RPM SAS 6 Gb/s - Brand New
This 3.5" Western Digital 1TB Drive is among the industries highest capacity nearline drives. It delivers 6 Gb/s transfer rates and being designed for quality and reliability, with 24/7 operation in up to 100% duty cycles.
By eliminating single points of failure this drive offers higher reliability, performance, and data availability for leading business-critical enterprise topologies. This drive is RoHS compliant. With a head positioning system equip with two actuators, positional accuracy is improved over the data track(s). The primary actuator is able to provide coarse displacement, using conventional electromagnetic actuator principles; while the secondary actuator then uses piezoelectric motion to then fine tune the head positioning to a higher degree of accuracy.
With this drive comes a significant performance improvement in high vibration environments. This is achieved by enhanced RAFF technology, that includes sophisticated electronics that monitor the drive and are able to correct both linear and rotational vibration in real time. This drive also has RAID-specific time limited error recovery (TLER) that prevents drive fallout that is caused by the extended hard drive error-recovery process, common to desktop drives. With a stunningly fast 6Gb/s SAS interface, there is an easy integration into SAS storage subsystems, while continuing to delver twice the interface speed of traditional 3Gb/s SAS nearline hard drives.
This drive is ideal for high-capacity data center storage, business-critical environments, high-performance computing, storage area networks (SAN), network attached storage (NAS), direct attached storage (DAS), cloud storage, as well as surveillance systems.
This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.
|Interface||SAS 6 Gb/s|
|Rotational Speed||7,200 RPM (nominal)|
|Buffer Size||32 MB|
|Load/unload Cycles||600,000 minimum|
|Transfer Rate (Buffer To Disk)||170 MB/s (Sustained)|
|User Sectors Per Drive||1,953,525,168|
|Operating Shock (Read)||65G, 2 ms|
|Non-operating Shock||300G, 2 ms|
|Idle Mode||31 dBA (average)|
|Seek Mode 0||34 dBA (average)|
|Operating||41° F to 131° F|
|Non-operating||-40° F to 158° F|
|Operating||5° C to 55° C|
|Non-operating||-40° C to 70° C|
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
The product is brand new & sealed in retail box packaging.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
