Dell Part #/MPN: 341-5898
DiscTech Item #: DEL-341-5898-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8470
Encryption/SED Supported
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 256MB
Bays/Ports/Slots: 8

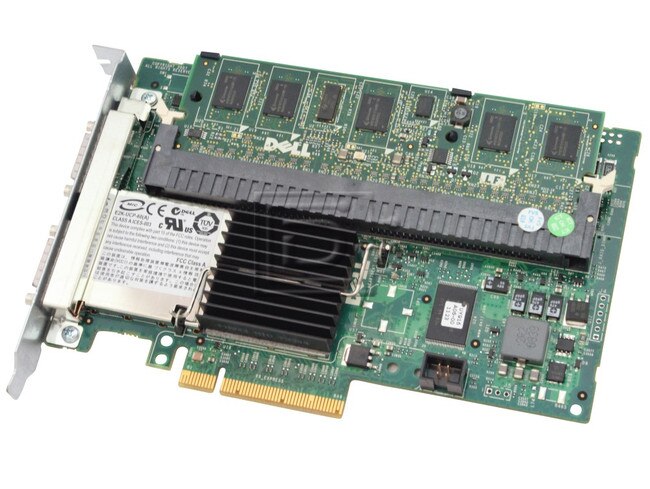

Dell PERC 6e 6/E Dual Channel SAS / Serial Attached SCSI RAID Controller, BBU, 256MB Cache PCI Express 341-5898 - Brand New OEM
Alternate Part Numbers : F989F 0F989F PR174 0PR174
Dell PERC 6e 6/E Dual Channel SAS / Serial Attached SCSI RAID Controller, BBU, 256MB Cache PCI Express 2x SFF-8470 341-5898 - Brand New OEM
Each PERC 6 controller offers a 256 MB double data rate 2 (DDR2) cache memory, with the PERC 6/E supporting upgrades to 512 MB to allow quick access to additional data and help increase performance. PERC 6 controllers also include a battery backup unit to protect data in the controller cache during a system power and/or controller failure. PERC 6 controllers support RAID levels 0, 1, 5, 6, 10, 50, and 60.
- 3 Gb/s (Gigabit per second) half-duplex max speed for each port. 6 Gb/s full-duplex max speed.

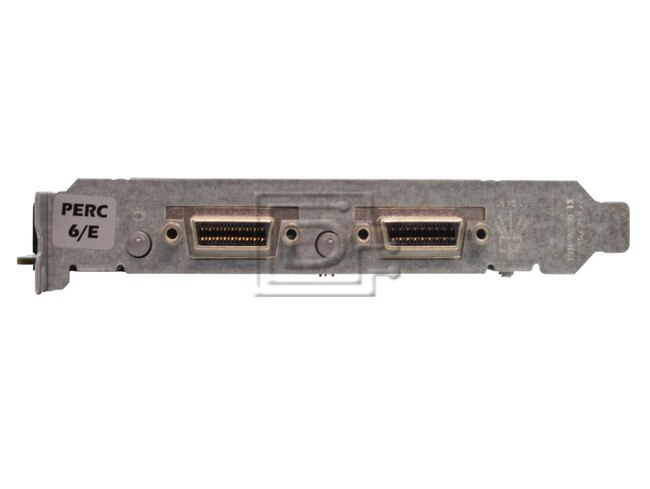

- Two external x4 (“by four”) SAS connectors, each containing 4 ports for a total bandwidth per connector of 12 Gb/s.
- x8 PCI-Express host interface for a total bandwidth of 4 GB/s.
- 256MB of Error Correcting Code (ECC), transportable, battery-backed, cache for base model with an option for a card that has 512MB.
- LSI 1078 SAS/SATA RAID-on-Chip device
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
