INTEL Part #/MPN: SSDSC2BB120G7R
DiscTech Item #: INT-SSDSC2BB120G7R-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:16Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 120GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 180/165
Average Seek Time: 30 µs/35 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC

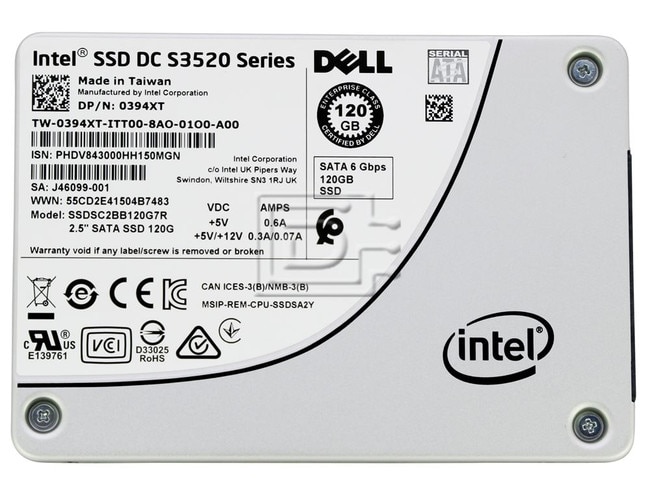

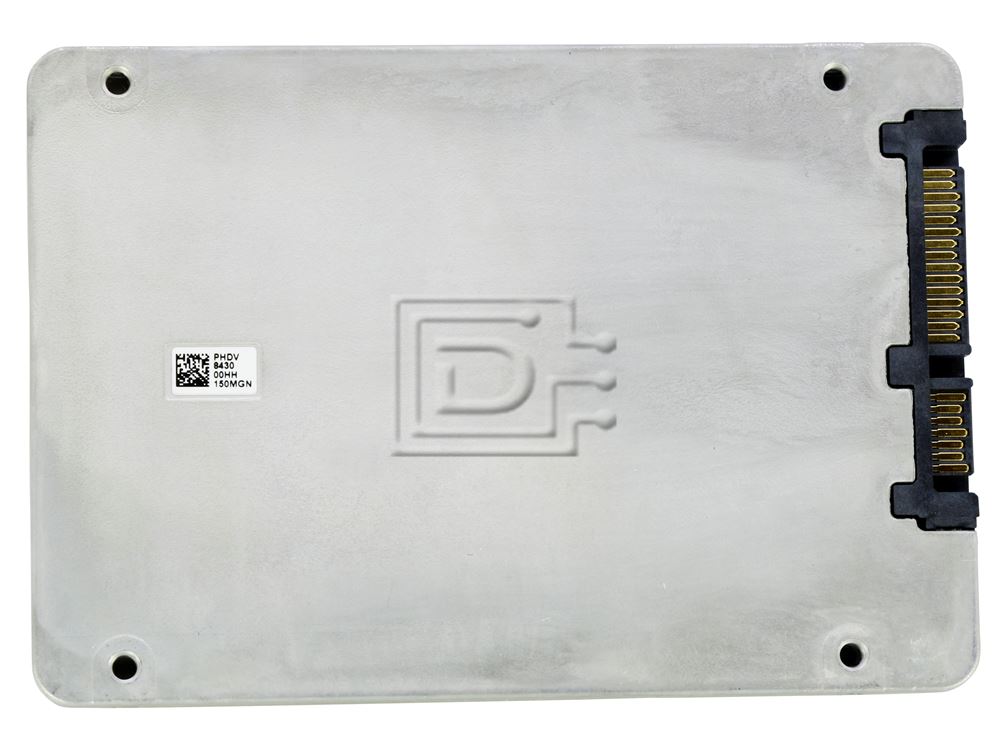

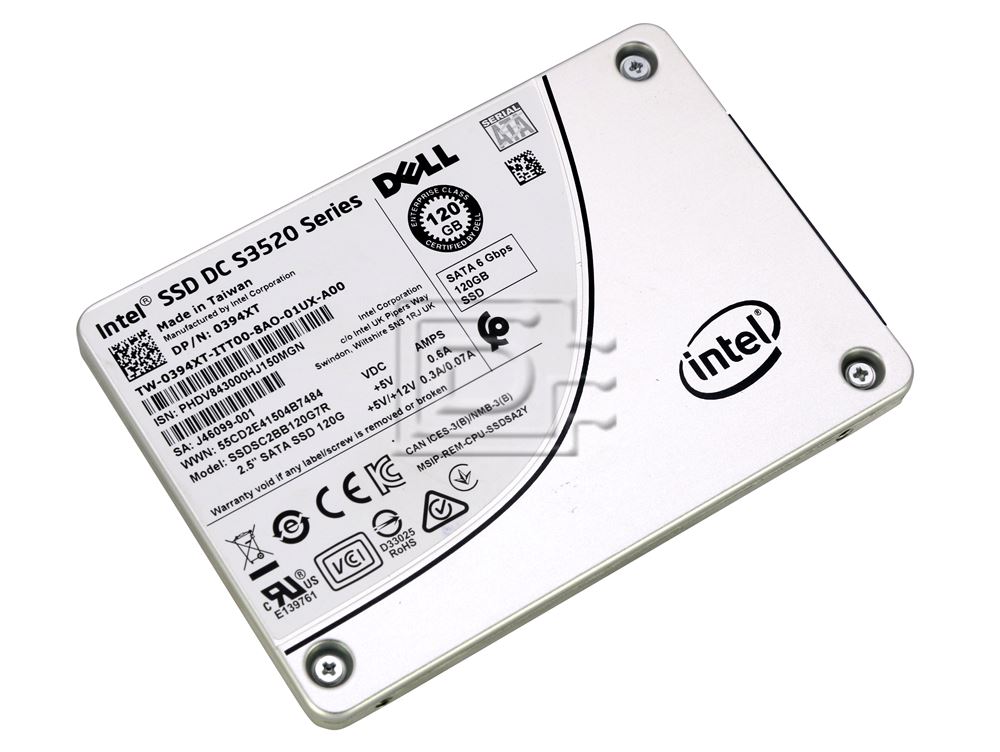

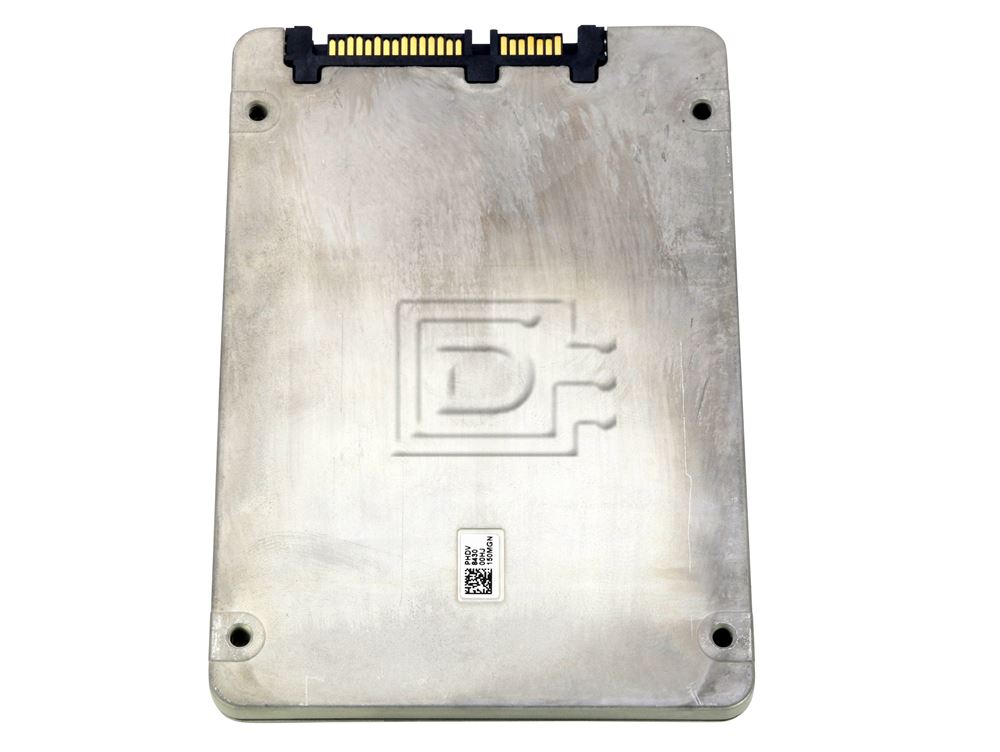

Dell 394XT / Intel DC S3520 SSDSC2BB120G7R 120GB 2.5" 6 Gbps MLC Read Intensive SATA SSD - Brand New OEM
Dell 394XT / Intel DC S3520 SSDSC2BB120G7R 120GB 2.5" 6 Gbps MLC Read Intensive SATA SSD - Brand New OEM
Alt Part Number 394XT , 0394XT
Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3520 Series. The Intel SSD DC S3520 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.
The Intel SSD DC S3520 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.
Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3520 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
Compatibility:
This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.
| Specification | |
|---|---|
| Intel Model Number | SSDSC2BB120G7R |
| Dell Model Number | 394XT |
| PACKAGE SPECIFICATIONS | |
| Capacity | 120GB |
| Form Factor | 2.5" 7mm |
| Interface | SATA 6.0 6Gb/s |
| Lithography Type | 16 nm |
| Advanced Technologies | |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | No |
| Temperature Monitoring and Logging | Yes |
| End-toEnd Protection | Yes |
| Intel Smart Response Technology | No |
| Intel Rapid Start Technology | No |
| Performance | |
| Sequential Read | 180 MB/s |
| Sequential Write | 165 MB/s |
| Random Read (8GB Span) | 43000 IOPS |
| Random Write (8GB Span) | 31000 IOPS |
| Latency - Read | 30 µs |
| Latency - Write | 35 µs |
| Power - Active | 2.2 W |
| Power - Idle | 530 mW |
| Vibration - Operating | 2.17 GRMS (5-700 Hz) |
| Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
| Shock (Operating and Non-Operating) | 1000G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Weight | 60 grams ± 2 grams |
| Mean Time Between Failures (MTBF) | 2 Million hours |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
| Endurance Rating (Lifetime writes) | 412 TBW |
ROHS Compliant
Alternate MPNs: 394XT 0394XT
Weight: 0.5 lb
