Seagate Part #/MPN: ST9160310AS
DiscTech Item #: SGT-ST9160310AS-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 160GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 11 / 13
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

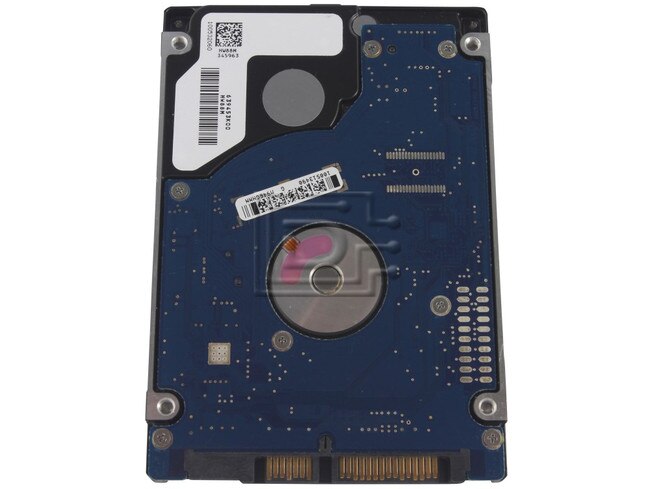

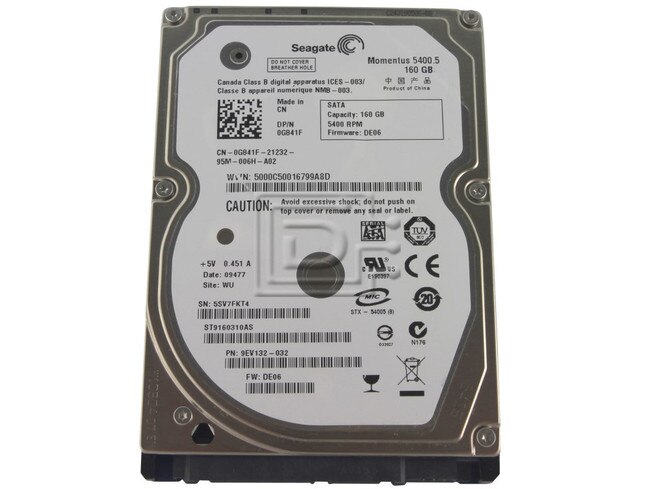

Seagate Momentus 5400.5 ST9160310AS 160GB 5.4K 2.5-inch SATA Hard Drive - New Pull OEM
These drives provide the following key features:
- 5,400-RPM spindle speed.
- 8-Mbyte buffer.
- Robust design and high shock tolerance enable mobility in rugged notebook operating environments.
- 1000 Gs of nonoperating shock make the drive ideal for notebook PCs and industrial applications.
- G-Force Protection™ available for added robustness in mobile environments
- Leverages Seagate laptop power management technology, delivering the lowest-power 5400-RPM laptop hard drive yet.
- Utilizes ramp load features that remove the head from the disk during idle periods, improving idle power consumption and adding to the durability of the drive.
- QuietStep™ technology enables ultra-quiet load/unload acoustics.
- Perpendicular recording technology
Compatibility:
This drive is compatible with any laptop/computer that supports 2.5" SATA hard drives.
| General | |
| Manufacturer | Seagate Technology |
| Model | 5400.5 |
| Product Line | Seagate Momentus |
| Environmental Parameters | |
| Operating Temperature | 0 to 60 |
| Nonoperating | –40 to 70 |
| Shock Tolerance Operating | 350 G @ 2 ms |
| Shock Tolerance Storage | 1000 G @ 1 ms |
| Interface | |
| Connector Type | 7 pin Serial ATA |
| Interface (Storage) | Serial ATA-300 |
| Drive Performance | |
| Transfer Rate (MB/s) | |
| Sustained Internal | 60.3 |
| Maximum External | 300 |
| Cache (MB) | 8 |
| Average Latency (ms) | 5.56 |
| Form Factor | 2.5 x .374 |
| Hard Drive Type | Internal hard drive |
| Interface Type | Serial ATA-300 |
| Non-Recoverable Errors | 1 per 10^14 |
| Spindle Speed | 5400 rpm |
| Dimensions & Weight | |
| Depth | 3.945 in |
| Height | .374 in |
| Weight | .254 lbs |
| Width | 2.75 in |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: G841F 0G841F
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
