Seagate Part #/MPN: ST800FM0063
DiscTech Item #: SGT-ST800FM0063-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

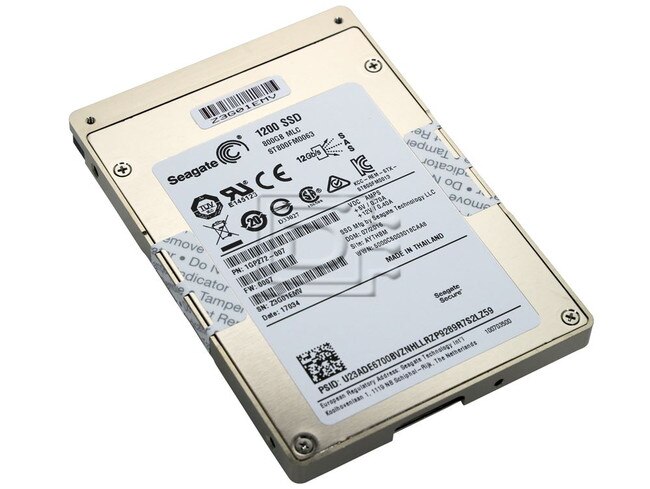

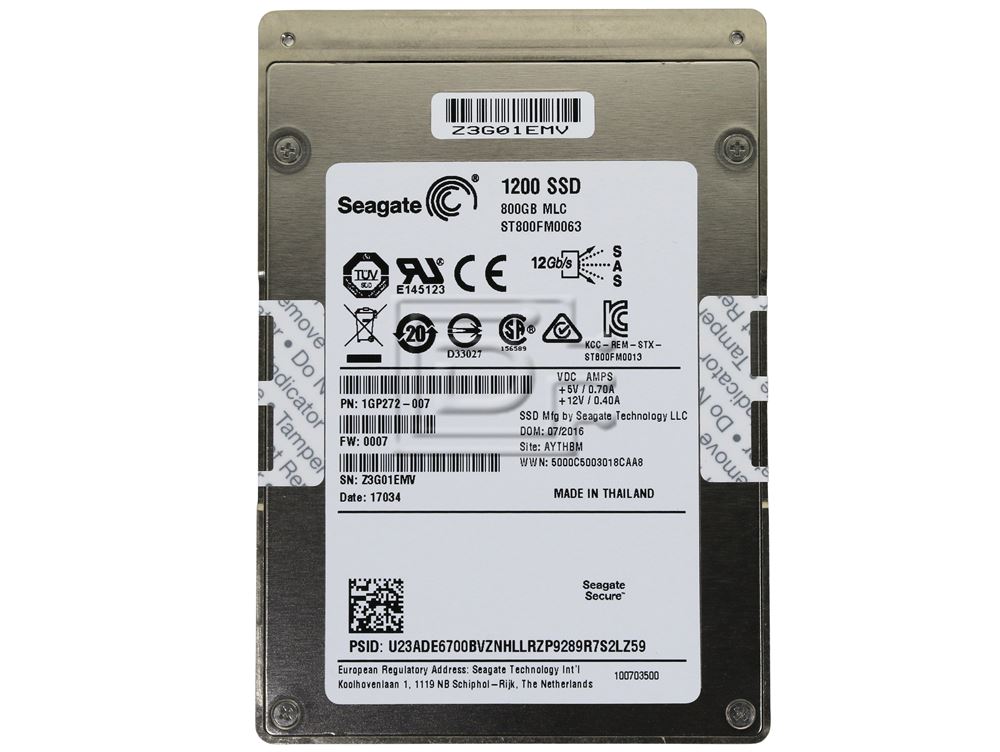

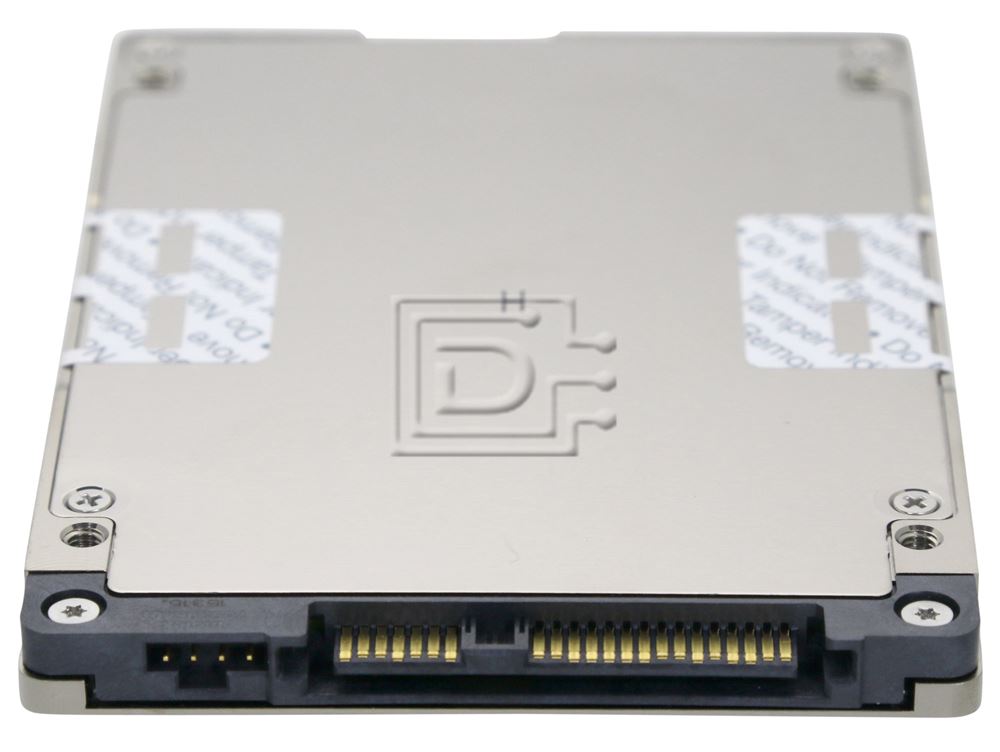

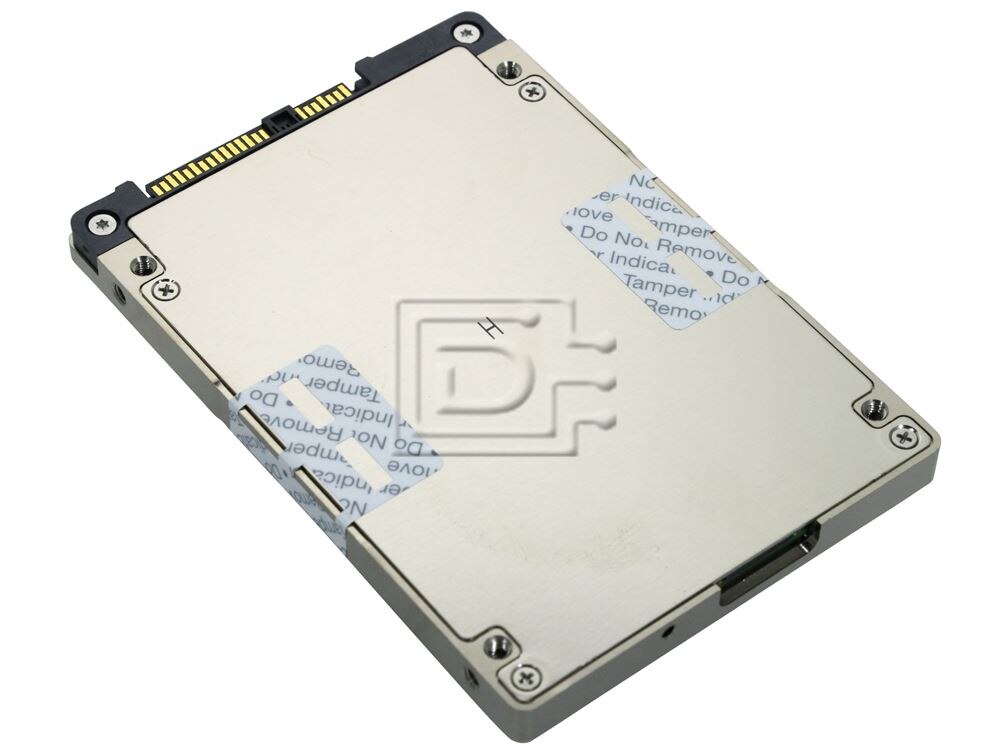

Seagate ST800FM0063 800GB 12Gbps 2.5" SED FIPS 140-2 MLC SAS SSD - Brand New
(equivalent to XS800LE10013 & ST800FM0063)
Seagate ST800FM0063 800GB 12.0 Gbps 2.5-inch Self-Encrypting FIPS 140-2 Serial-Attached SCSI Multi-Level Cell Solid-State Drive - Brand New
Seagate 1200 series Solid-State Disk drives provide high performance, high capacity data storage for a variety of systems with a Serial Attached SCSI (SAS) interface. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.
Seagate 1200 SSD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications and the SAS Interface Manual (part number 100293071) which describes the general interface characteristics of this drive. Seagate 1200 SSD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA drives. This allows users to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.
Seagate Warranty
Limited Warranty with Media Usage - provides coverage for the warranty period or until the SSD Percentage Used Endurance Indicator reaches 100 whichever comes first.
This ST800FM0063 model is functionally identical & compatible with the following models: (The 63 adds SED & FIPS compliance)
ST800FM0043
ST800FM0013
ST800FM0023
ST800FM0033
ST800FM0053
XS800LE10013
ST800FM0063
Compatibility:
This drive is compatible with enterprise grade servers and storage arrays that accept a 2.5" x 7mm 12Gb/s SAS SSD drive.
Product Specifications | |
---|---|
Product Name | ST800FM0063 |
Product Type | Solid State Drive |
Drive Interface | SAS |
Drive Width | 2.5" |
Drive Interface Standard | 12Gb/s SAS |
Drive Type | Internal |
Storage Capacity | 800GB |
NAND Flash Type | MLC |
Internal Operating Temperature | 0 to 70℃ |
Performance | |
Maximum Burst Transfer Rate | 1200MB/s |
Peak sequential 128KB read/write data transfer rate (MB/s max) | 750/500 |
Sustained sequential 128KB read/ write data transfer rate (MB/s) | 750/500 |
Peak 4KB random read/write command rate (IOPs) | 110,000/30,000 |
Sustained 4KB random read/write command rate (IOPs) | 110,000/30,000 |
Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 60,000 |
Reliability | |
TBW (per JEDEC JESD218) | 14,600 TB DWPD: 10 |
Power Requirements | |
Average idle current (W) | 3.30 |
Delayed start (max) DC (W) | 2.39 |
Peak operating current (random read) Typical DC (W) | 4.05 |
Peak operating current (random read) Maximum DC (W) | 4.61 |
Peak operating current (random write) Typical DC (W) | 5.30 |
Peak operating current (random write) Maximum DC (W) | 7.35 |
Peak operating current (sequential read) Typical DC (W) | 4.73 |
Peak operating current (sequential read) Maximum DC (W) | 5.00 |
Peak operating current (sequential write) Typical DC (W) | 6.89 |
Peak operating current (sequential write) Maximum DC (W) | 7.57 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: ST800FM0043-SED
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
