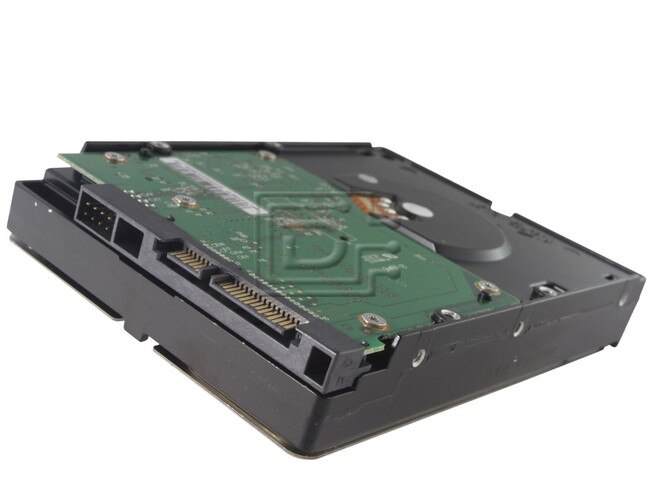

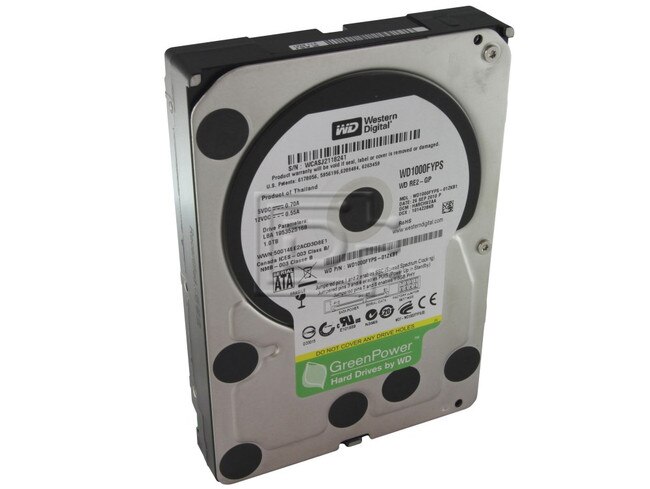

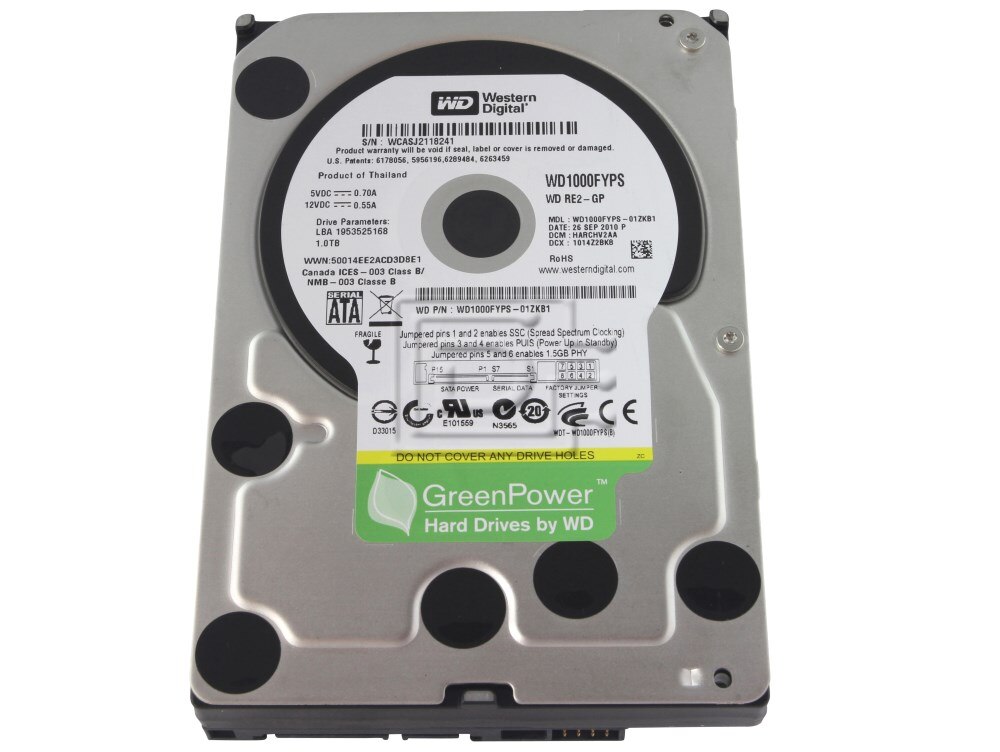

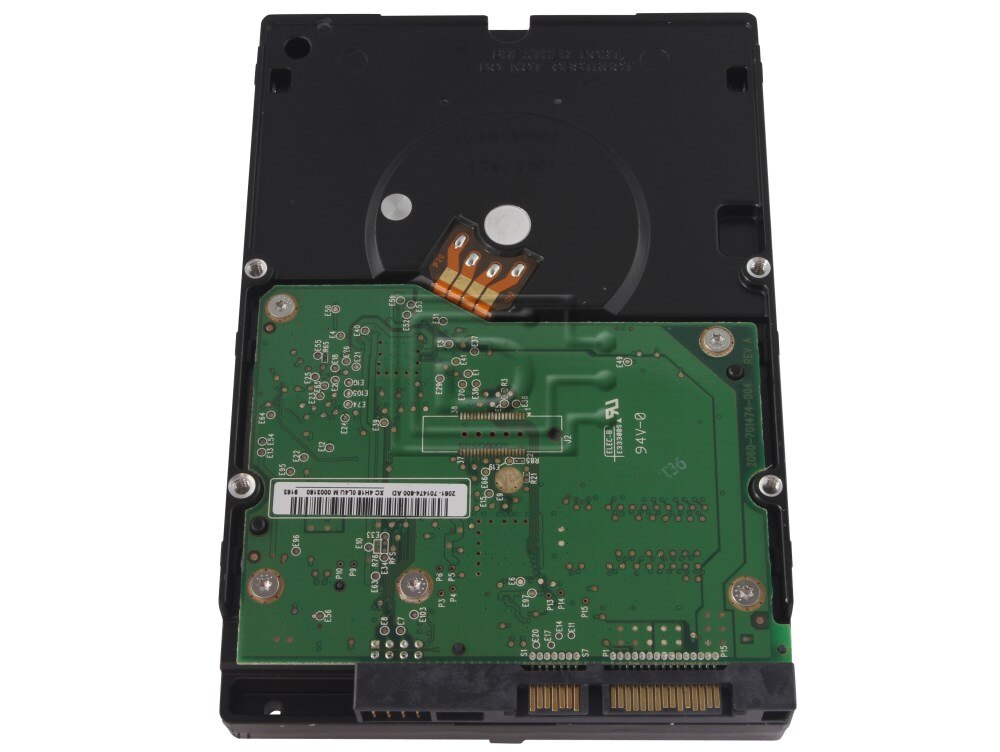

Western Digital RE2-GP WD1000FYPS SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD1000FYPS

DiscTech Item #: WDC-WD1000FYPS-FR-6M


$89.00
$89.00

Enterprise Grade

Capacity: 1TB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 8.9ms

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

Performance Specifications
 Rotational SpeedIntelliPower *
 Buffer Size16 MB
*x A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, GreenPower drives consume less current during start up allowing more drives to spin up simultaneously resulting in faster system readiness.
Seek Times
 Read Seek Time8.9 ms
Transfer Rates
 Buffer To Host (Serial ATA)3 Gb/s (Max)
Physical Specifications
 Formatted Capacity1,000,204 MB
 Capacity1 TB
 InterfaceSATA 3 Gb/s
 User Sectors Per Drive1,953,525,168
Physical Dimensions
English
 Height1.028 Inches
 Depth5.787 Inches
 Width4.00 Inches
 Weight1.61 Pounds
Metric
 Height26.1 mm
 Depth147 mm
 Width101.6 mm
 Weight0.73 kg
Environmental Specifications
Shock
 Operating Shock (Read)65G, 2 ms
 Non-operating Shock250G, 2 ms
Acoustics
 Idle Mode24 dBA (average)
 Seek Mode 029 dBA (average)
 Seek Mode 325 dBA (average)
Vibration
Operating
  Linear20-300 Hz, 0.75 G (0 to peak)
  Random0.004 g²/Hz (10 to 300 Hz)
Electrical Specifications
Current Requirements
12 VDC
  Read/Write340 mA
  Idle254 mA
  Standby6 mA
  Sleep6 mA
5 VDC
  Read/Write675 mA
  Idle195 mA
  Standby180 mA
  Sleep180 mA
Power Dissipation
  Read/Write7.40 Watts
  Idle4.00 Watts
  Standby0.97 Watts
  Sleep0.97 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 6 Month DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

6 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
